Summary of Contents for ESS 2000 Series

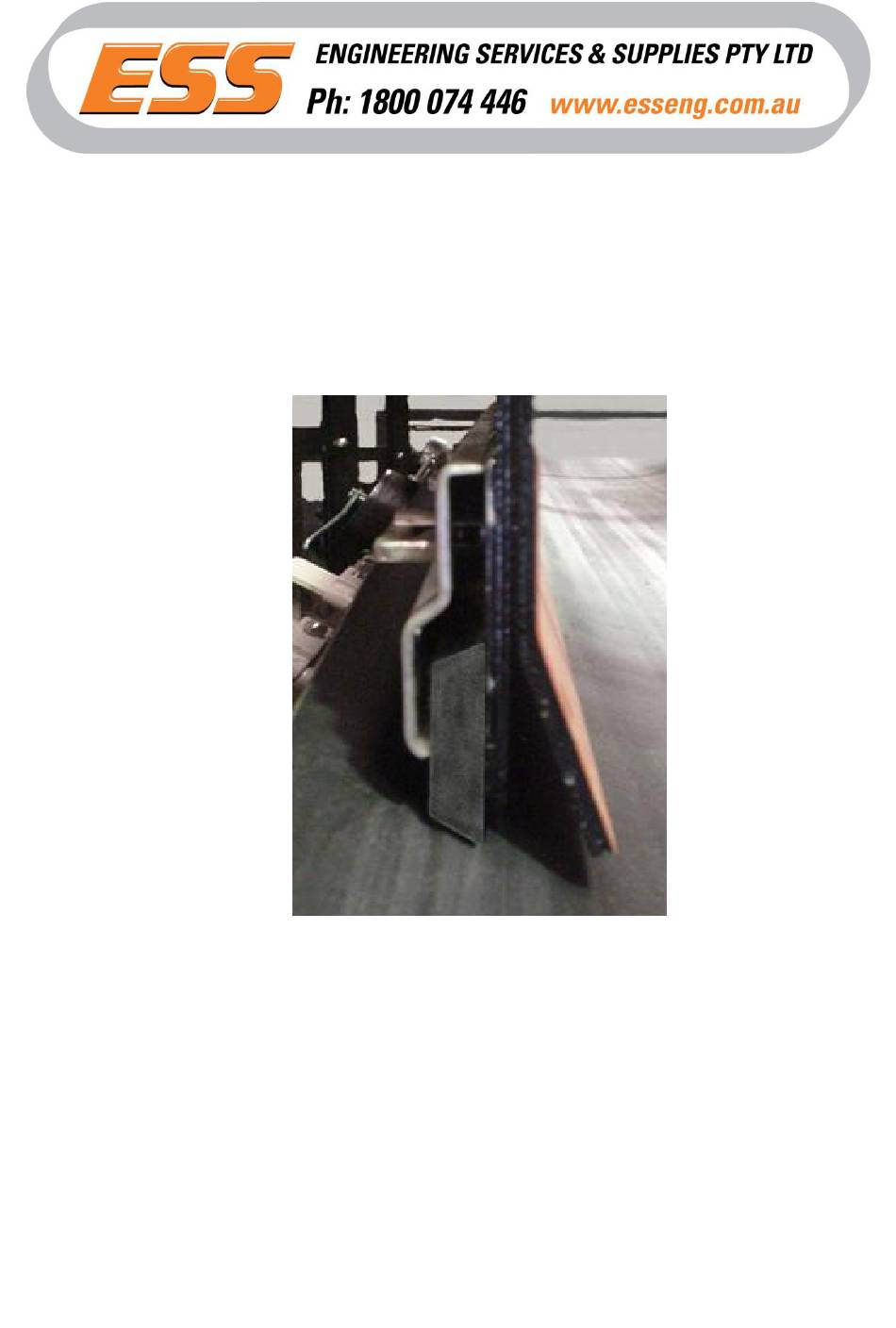

- Page 1 ESS 2000 Series Conveyor Belt Skirting System Installation Operations Manual ESS 2000 Series Skirting System 08/06/2021...
- Page 2 Braeside VIC 3195 essvic@esseng.com.au (02) 4251 9801 Unit 1 / 20 Doyle Avenue PO Box 343 WOLLONGONG esswol@esseng.com.au Unanderra NSW 2526 TOLL FREE 1800 074 446 FROM ANYWHERE IN AUSTRALIA VSS TOLL FREE 1800 300 877 ESS 2000 Series Skirting System 08/06/2021...
-
Page 3: Warranty Note
12 months from the date of despatch of the product from the ESS factory. The warranty given by ESS in this regard will extend only to replacing or repairing product shown to be defective. - Page 4 SECTION 1 SAFETY SECTION 2 INTRODUCTION SECTION 3 PREPARATION FOR INSTALLATION SECTION 4 INSTALLATION SECTION 5 COMMISSIONING SECTION 6 TROUBLE SHOOTING SECTION 7 INSTALLATION ARRANGEMENT DRAWING SECTION 8 EXPLODED PARTS DRAWING SECTION 9 FINAL CHECKLIST ESS 2000 Series Skirting System 08/06/2021...
-
Page 5: Section 1 - Safety
SECTION 1 - SAFETY The ESS 2000 Conveyor Belt Skirting System is designed to be quickly and easily installed and serviced by appropriate personnel. Under no circumstances should servicing or installation of the ESS 2000 Skirt System be carried out whilst the belt is in operation. -
Page 6: Section 2 - Introduction
ESS 2000 Series is a conveyor belt skirting and sealing system comprising a rubber or urethane seal and a weld-on clamp assembly. ESS 2000 Series attaches to the outside of the conveyor belt load skirts to provide an effective seal and prevent material loss and dust emissions. -
Page 7: Section 3 - Preparation For Installation
For Snug Fit Rubber Skirt ensure dimension ‘A’ from conveyor belt to the bottom of the existing steel work is obtainable. See table below, and drawing F0169 in section 7. ESS 2000 Series Skirting System 08/06/2021... -
Page 8: Unusual Conditions
(>4.6 m/sec) conveyor belt temperature extremes - below 7° C or above 65° C corrosive atmosphere ESS 2000 Series Skirting System 08/06/2021... -
Page 9: Section 4 - Installation
Take an ESS 2000 Back Plate section and position it such that the bottom edge is uniformly dimension A (Sect 3.4) from the belt, and one end is at the required start point of the skirt seal (preferably toward the tail end of the conveyor). - Page 10 For lengths of 500-600mm, the Backplate may be trimmed to the required length at one end only. Cut the end furthest from the previous Backplate. Fit the Backplate as previously described. Cut the Clamp plate at the same end. ESS 2000 Series Skirting System 08/06/2021...
- Page 11 (cotters). The two cotters may be reduced to 150mm centres minimum. Weld the Backplate sections back together and dress smooth with a grinder. The Clamp Plate will also be cut and re-joined in a similar manner, again allowing 5mm clearance at the ends. ESS 2000 Series Skirting System 08/06/2021...
- Page 12 See the cutting procedure following in section 4.2. Insert the skirting rubber from one end, making sure that the correct edge is downward. Secure the rubber by placing the ESS 2000 clamps plates in position over the captive wedges, and lightly tapping the wedges to hold the rubber.
- Page 13 The following steps are recommended for the safe cutting of ESS Snug-Fit and Square Edge rubber skirt seals: Step 1 Measure and mark the required length of ESS 2000 skirt rubber for the job being undertaken. A white paint marker is recommended, and the mark should be perpendicular to the length of the rubber.
- Page 14 Step 4 The assistant should hold the cut open by firmly holding the rubber and turning it slightly downward. Do not apply excessive load – this could result in a fall when the final cut releases the rubber. ESS 2000 Series Skirting System 08/06/2021...
- Page 15 Step 5 Continue as above until the cut is completed. Release the end of the rubber from the vice, and install as described in the ESS 2000 manual. Store the left over rubber in a suitable place in line with good house-keeping practice.
-
Page 16: Section 5 - Commissioning
SECTION 5 - COMMISSIONING A note on safety: No additional safety hazards are present with ESS 2000® Skirting other than normal conveyor belt dangers. In particular: Beware of moving conveyor belts. Beware of pinch points Do not attempt to install, maintain or disassemble any part of a conveyor belt without first isolating and tagging the conveyor drive. -
Page 17: Section 6 - Troubleshooting
Skirting Rubber is installed too tightly against conveyor installation. belt. Excessive Skirting Rubber Skirting Rubber is installed too tightly against conveyor wear. belt. Product leaking from under Skirting rubber is not installed uniformly against the belt. skirting. ESS 2000 Series Skirting System 08/06/2021... -
Page 18: Section 7 - Installation Arrangement Drawing
SECTION 7 – INSTALLATION ARRANGEMENT DRAWING ESS 2000 Series Skirting System 08/06/2021... -
Page 19: Section 8 - Exploded Parts Drawing
SECTION 8 – EXPLODED PARTS DRAWING ESS 2000 Series Skirting System 08/06/2021... -
Page 20: Final Checklist
Number: _____________________ Date: ___________________ Site Equipment No./Location: _________________________ Site Contact: _________________________ Completed By: _____________________________________ 1. Was equipment to ESS Specification? _______________________________ Yes/No Drawing No. Ref: _________________________________________ Attached? Yes/No If No, WHY _______________________________________________________________________________ ________________________________________________________________________________________ Will this affect performance? Yes/No If Yes, WHY ______________________________________________________________________________ ________________________________________________________________________________________ 2.
