Summary of Contents for sun control CATALINA AWNING

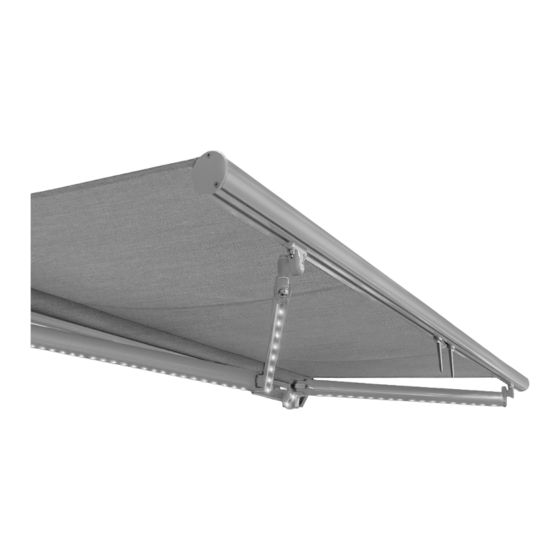

- Page 1 CATALINA AWNING CATALINA AWNING INSTALLATION MANUAL 2022 | swsuncontrolpro.com 877-792-0030 | 1 1319...
-
Page 2: Symbols Used In This Manual
INTRODUCTION CATALINA AWNING INSTALLATION This manual was prepared by the Manufacturer to provide the necessary information to those authorized to install and perform special maintenance on the product. It is prohibited to remove, rewrite or in any way modify the pages of the manual and their content. -
Page 3: General Safety Information
CAUTION It is recommended that installation, adjustment, and special maintenance of the awning be carried out only after consulting an awning specialist or Sun Control Retractable Shades. CAUTION A minimum clearance of at least 20 INCHES between the awning front bar and any fixed obstacle (wall, terrace, etc.) must be provided. -
Page 4: Control Devices
SAFETY CATALINA AWNING INSTALLATION GENERAL AWNING SAFETY INFORMATION AUTOMATIC CAUTION CONTROL DEVICES Motorized awning must not be installed in potentially explosive (ATEX) atmospheres. CAUTION Never extend the awning more than the tension in the arms as there is a risk that the awning will return under the tube and be ruined. -
Page 5: Technical Tables
THE FOLLOWING TABLE IS PURELY INDICATIVE. TO THE BEST OF OUR KNOWLEDGE THE INFORMATION IS UP TO DATE SW SUN CONTROL DOES NOT PROVIDE ANY GUARANTEE REGARDING ACCURACY, RELIABILITY, AND COMPLETENESS OF THE INFORMATION CONTAINED HEREIN. INDEED, IT IS THE USER’S RESPONSIBILITY TO ENSURE THE SUITABILITY AND ACCURACY OF THIS INFORMATION. -
Page 6: Exploded View
COMPONENTS CATALINA AWNING EXPLODED VIEW Wall Bracket Fabric Cassette 13. Fabric Tube Round Pin 14. I-Style Tube Bracket Side Lock Cap 15. Cassette Lock Cap Idler Bushing 16. Cassette Cap Square Bar 17. Motor Lighted Awning Arm Front Bar Cap Fabric Lock 10. -
Page 7: Support Brackets
SUPPORT BRACKETS CATALINA AWNING MOUNTING BRACKETS WALL BRACKET BACK 2” CEILING BRACKET BACK 2.5” 2.5” 2022 | swsuncontrolpro.com 877-792-0030 | 7 1319... -
Page 8: Install Brackets
STEP 1 CATALINA AWNING BEFORE YOU BEGIN, NOTE: IMPORTANT • Catalina size Insure support brackets are always mounted into an adequate structure. • Support bracket dimensions • Number of support brackets • Operation side of the Catalina • Dimensions of the wall/ceiling where the awning is to... - Page 9 STEP 2 CATALINA AWNING MOUNTING AWNING NOTE: IN BRACKETS 2 person job With assistance, lift the awning to the wall brackets and slip the square bar into brackets. If the square bar has difficulty sliding into the brackets, first line up the square bar with the opening of the support brackets.
- Page 10 OPERATE SHADE connection. Extend and retract Catalina Awning a few times by pressing the up and down arrows Verify connection is on the provided remote to be sure there secure on both ends.
-
Page 11: Troubleshooting
TROUBLESHOOTING CATALINA AWNING PROBLEMS CAUSES SOLUTIONS Please call Technical Support The fabric does not roll up straight Incorrect symmetry of arms 877.792.0030 Uneven fabric Use a fabric shim The awning does not fully close Incorrect adjustment of limit switch. See manual for motor...
