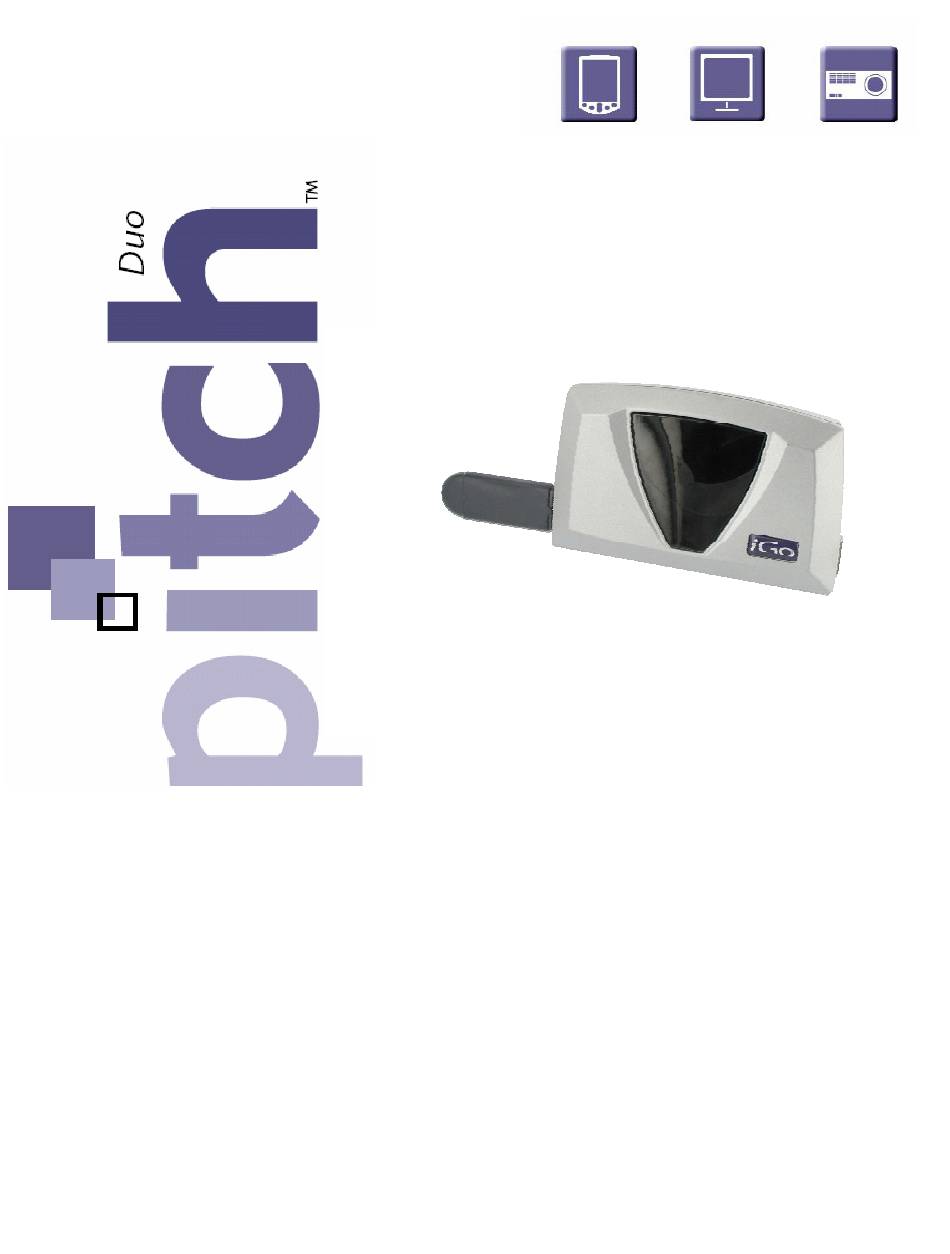

User Guide
Bluetooth Wireless Presentation Solution for
Palm Mobile Devices
Model Number:
Pitch Duo™ is a complete presentation solution for Palm
Mobile Devices running Palm OS 4.0 and later, and provides
connection to your projection device via Bluetooth or USB.
The solution includes:
•
Pitch Duo™ unit
•
A power supply for powering Pitch Duo
•
Quick Pitch Guide
PS6B1V
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Mobility Electronics iGo Pitch Duo PS6B1V
- Page 1 User Guide Bluetooth Wireless Presentation Solution for Palm Mobile Devices PS6B1V Model Number: Pitch Duo™ is a complete presentation solution for Palm Mobile Devices running Palm OS 4.0 and later, and provides connection to your projection device via Bluetooth or USB. The solution includes: •...
- Page 2 A Guide to Pitch Duo...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ..................ii Introduction....................1 Minimum Requirements............... 1 Product Registration ................1 Chapter 1 Getting Started ............... 2 Before You Start .................. 2 Chapter 2 Before Your Presentation............3 Install the Software ................3 Verify the Installation ................8 Connect Pitch Duo................ - Page 4 A Guide to Pitch Duo...
-
Page 5: Introduction
Introduction Minimum Requirements The following minimum requirements must be met for the Mobile Device and desktop computer: • A Mobile Device capable of connecting via Bluetooth or USB and running Palm OS 4.0 and later. • Pitch Duo unit • AC power adapter for Pitch Duo •... -
Page 6: Chapter 1 Getting Started
Chapter 1 Getting Started Before You Start In order to ensure a successful installation of the Pitch™ Duo software it is first necessary to confirm that your Mobile Device and your computer are connected and configured correctly. You must also make sure you are using the correct version of HotSync®... -
Page 7: Chapter 2 Before Your Presentation
Chapter 2 Before Your Presentation Install the Software The software is available online at www.iGoPitch.com. Simply go to the website and download the self-extracting archive. The files will extract to a folder called c:\pitchduo, unless you changed to a new location. Find the SETUP.EXE file and double-click it to start the installation. - Page 8 This window displays important information about using your Pitch Duo. When you are finished reviewing this information, click on the Next button to continue You will be prompted to select a location for the installation. You may browse to a new folder location, or simply click on the Next button to select the default location.
- Page 9 Select the Program Group where you want the Pitch software installed and click on the Next button to continue. Now that you have defined your installation, click on the Next button to begin the installation. Confirm that the “User Profile” displayed is the one desired.
- Page 10 The QDisplay_1.7.1.prc file will be placed into the palmOne Quick Install Manger to be added to your Palm device during the next HotSync. Click on the “X” (Exit) button in the top right corner of the window to continue. The addition of the new file to be installed during your next HotSync®...
- Page 11 The QLite_1.7.1.prc file will be added to the palmOne Quick Install Manger to be added to your Palm device during the next HotSync. Click on the “X” (Exit) button in the top right corner of the window to continue. The addition of the new file to be installed during your next HotSync®...
-
Page 12: Verify The Installation
Verify the Installation Connect your Mobile Device to your host computer and perform a HotSync®. QDisplay and QPLite will automatically be installed to your Mobile Device. To verify the installation, take the Mobile Device, and tap on the Home icon. Then look for the icons in the Home window. If you find them, you are ready to continue. -
Page 13: Communicating With Pitch Duo
Communicating with Pitch Duo Pitch Duo communicates with your Mobile Device via either Bluetooth or USB – your choice. It is, therefore, important for you to decide how you want to use your Mobile Device with Pitch Duo. Do you want to use Bluetooth, USB, or maybe both (just not at the same time)? Before you continue, you should make sure your Pitch Duo is connected to your monitor or other display device and the Bluetooth Dongle and... -
Page 14: Using Usb
Using USB To use USB to communicate with Pitch Duo, unplug your USB cable from your host computer and connect it to the USB connector directly below the power connector. Be sure you have the power adapter connected to your Pitch Duo. DO NOT CHECK the checkbox. -
Page 15: Using Bluetooth
Using Bluetooth To communicate with Pitch Duo using Bluetooth, make sure your Bluetooth Adapter is connected to the USB connector on the side opposite the power connector. Be sure you have turned on the power to your Pitch Duo device and configured your Mobile Device to use Bluetooth communications. -
Page 16: Chapter 3 Preparing For Your Presentation
Chapter 3 Preparing For Your Presentation With Pitch Duo you can easily use your Mobile Device to make a PowerPoint Presentation by following these simple steps: • On your computer – Create a PowerPoint Presentation and save it, or locate an existing one. Be sure your Mobile Device is connected to the computer before you continue. -
Page 17: Chapter 4 Giving Your Presentations
Chapter 4 Giving Your Presentations Go to the Home window and use the Stylus to tap on the QPLite icon. All available PowerPoint presentations will be displayed in the main window on this screen. Select the one you want by simply tapping on the file name. -
Page 18: Managing Your Presentation
Managing Your Presentation Using QPLite and your Mobile Device you can make “real-time adjustments” to your PowerPoint presentation “on the fly.” For example, while you can display your PowerPoint presentation on your remote display device, you can also view the presentation in four different ways on your Mobile Device. -
Page 19: List View
List View This is the default slide display view. Clicking on this icon shows a list of all slides in your presentation with the slide # and name. The slide currently being displayed is highlighted. You may change slides by simply clicking on the next slide you want. -
Page 20: Note View
Note View Clicking on this icon will display any notes for the active slide. Notice that the slide number and title appears at the top with the actual slide text shown in the main window. To change slides in this view, tap on the and select another slide from the drop down list. -
Page 21: Pres Menu
After you finish “Reorder”ing your presentation, the Reorder option changes to a Restore option, allowing you to return to your original presentation with a simple menu click. Pres Menu This menu allows you to Start and Stop your presentation by simply tapping the Start or Stop options with the stylus. -
Page 22: Using Qdisplay For Remote Display
Using QDisplay for Remote Display With Pitch Duo you can easily view the contents of your Mobile Device’s display window on a remote display device. This special feature provides an invaluable tool – whether for training or for displaying different mobile applications not directly associated to PowerPoint. -
Page 23: Chapter 5 Tips & Tricks
Chapter 5 Tips & Tricks: Slide Transitions: Although Pitch Duo does not support bullet-building, you can use a similar visual impact by using a base slide with the first bullet and incrementing the bullets on additional identical slides. If you have a large presentation (up to Large Presentations: the 32MB Pitch limit), you can speed your setup time by uploading the... -
Page 24: Chapter 6 Important Notes
Chapter 6 Important Notes: 1. Because Pitch Duo uses a high-performance Pentium-class CPU and graphics system, it does create heat during extended use. This is normal. 2. You can check for updated software and get additional information about Pitch Duo at www.iGoPitch.com. 3. -
Page 25: Appendix A Regulatory Information
Appendix A Regulatory Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 26 A Guide to Pitch Duo...
- Page 27 A Guide to Pitch Duo...
- Page 28 ©2006 Mobility Electronics, Inc. Mobility Electronics and iGo are registered trademarks and Pitch is a trademark of Mobility Electronics, Inc. All other brand names and logos are trademarks or registered trademarks of their respective owners. United States and foreign patents pending. Specifications are subject to change without notice.
