Summary of Contents for Abriblue Nextpool WING SYSTEM

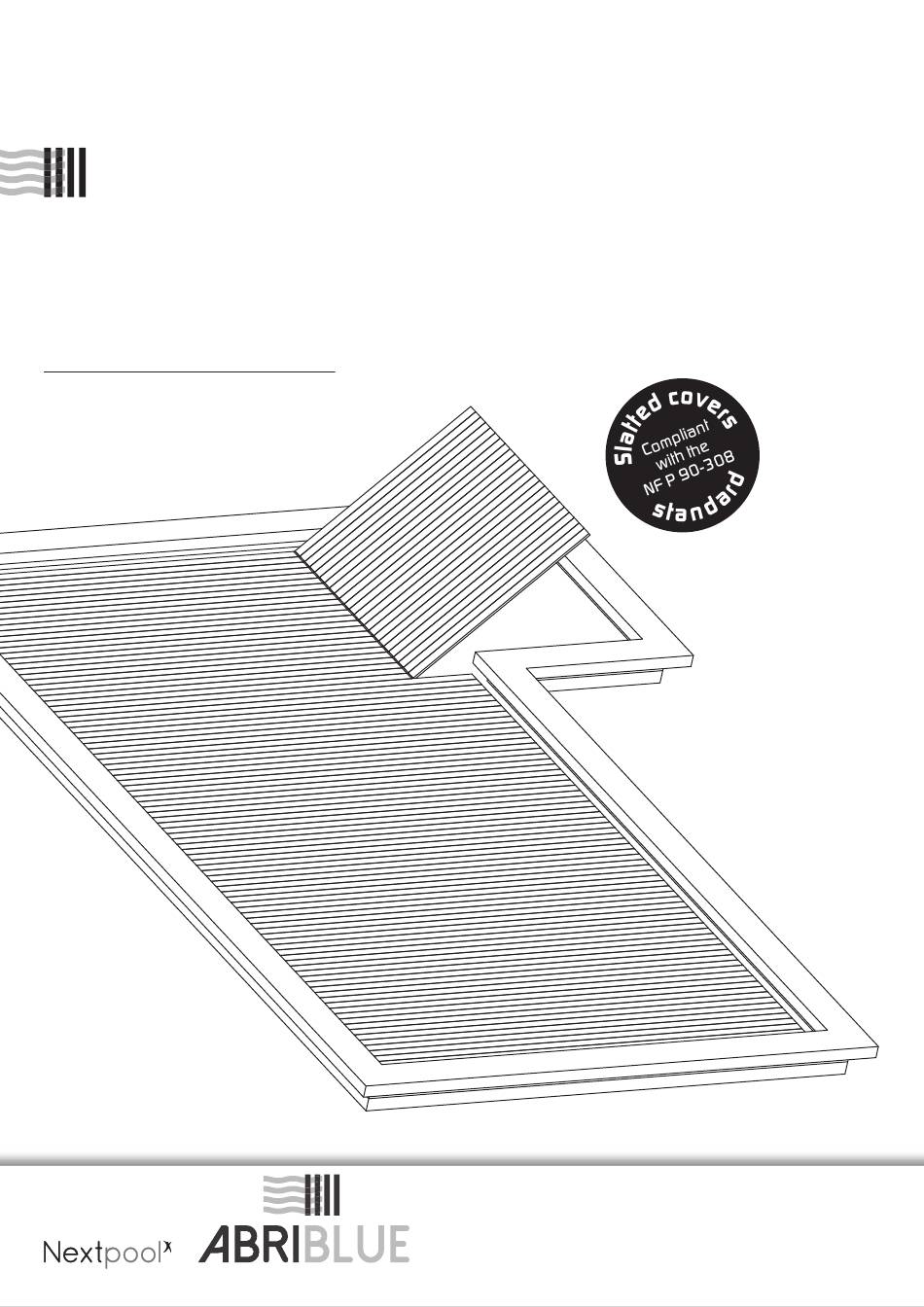

- Page 1 EXCLUSIVE ABRIBLUE INNOVATION FOR AUTOMATIC SAFETY COVER WING System ® Installation manual Please read carefully and keep available for later use 02/2021 Version AE-12-102-7EN/02-2021...
- Page 2 FOREWORD This manual is intended for the person who installs and commissions an ABRIBLUE slatted safety cover. This manual must then be given to the pool owner along with the safety and user instructions so that it is available for subsequent use.
-
Page 3: Table Of Contents
3/12 - WING System® option installation instructions for automatic slatted safety covers C O N T E N T S 1. Presentation General description Range of application (base x depth) Technical warnings 2. Installation and assembly Installation and layout of the slats Assembling the cover and WING System®... -
Page 4: Presentation
1.1 General description irreparable damage to the cover or liner. An award winning Abriblue swimming pool innovation, the • For correct operation, the coping must not protrude WING System® is a slat cover surface intended to cover more than 30 mm, for a water level at –... -
Page 5: Installation And Assembly
5/12 - WING System® option installation instructions for automatic slatted safety covers 2. Installation and assembly 2.2 Assembling the cover and WING System® slats Fig. 3 et 4 - - Assemble the slats by clipping them together by inserting 2.1 Installation and layout of the slats the double male hook into the female part of the preceding Fig. -
Page 6: Assembling The Cover And Wing System® Slats
WING System® option installation instructions for automatic slatted safety covers - 6/12 2.3 Assembling the cover and WING System® slats Fig. 5 et 6 - - Cut the male part of the cover slat preceding the Wing by about 7 cm. Make sure you do not pierce the slat compartments during the operation. -
Page 7: Positioning The Safety Systems
7/12 - WING System® option installation instructions for automatic slatted safety covers 2.4.2 Straight stairs with a double looped strap Fig.8 The GREEN stickers mark the position of the safety systems. (Anti-lifting buckles, etc.) The GREEN stickers mark the position The two external YELLOW of the safety systems. -
Page 8: Positioning Of The Two-Thimble Strap
WING System® option installation instructions for automatic slatted safety covers - 8/12 2.6 Positioning of the two-thimble strap 2.7 Positioning of the transverse strap Fig. 11 Fig. 13 - 14 - 15 The assembly position is indicated by a blue sticker. The - - The passages for the transverse strap are indicated by assembly is carried out by passing the strap around the slat the yellow stickers on the ends of the WING System®... -
Page 9: Positioning Of The Handling Strap With Handle
9/12 - WING System® option installation instructions for automatic slatted safety covers 2.8 Positioning of the handling strap with handle Fig. 16 This strap is assembled by connecting it to the WING System® transverse loop, on the slat cover underside. Warning! Under no circumstances should this strap be connected to one of the central thimbles. -
Page 10: Positioning Of The Compensation Blocks
WING System® option installation instructions for automatic slatted safety covers - 10/12 2.9 Positioning of the compensation blocks Mandatory installation when the WING System® is not at the end of the slat cover. Fig. 17 Unrolling direction Wing Slat cover Tablier The compensation blocks must be clipped to the points marked by red stickers. -
Page 11: Handling
11/12 - WING System® option installation instructions for automatic slatted safety covers 3. Handling 4 Mid-way, grasp the lifting strap using the handle located under the WING System® to accompany the folding. 3.1 Fold the stairs onto the slat cover before rolling Starting position: cover locked on the swimming pool 1 Unlock the anti-lifting devices. -
Page 12: Fold Back The Stairs On The Slat Cover Before Unrolling
4 Then, hold the WING System® using the transverse strap located at the back. Product: WING System® Company: AS POOL Address: Zac de la Rouvelière F-72700 SPAY- LE MANS Phone: +33 (0)811 901 331 Fax: +33 (0)243 479 850 contact@abriblue.com www.abriblue.com...
