Summary of Contents for FTE Maximal mediaMAX MINI HD

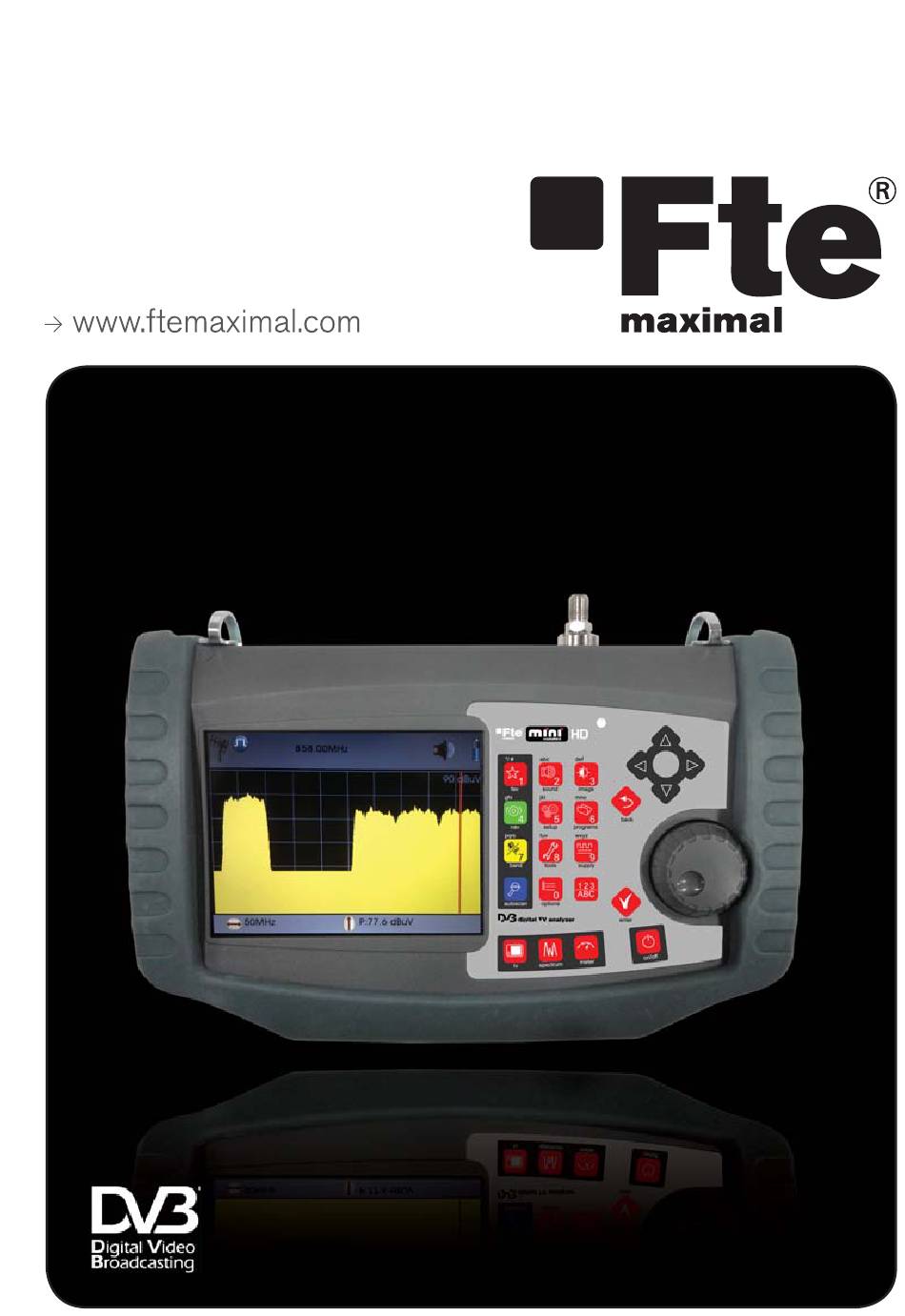

- Page 1 MINI HD User’s manual...
- Page 3 MINI HD User’s Manual (English)
- Page 5 User’s Manual - mediaMAX MINI HD INDEX 1 Introduction ....................5 2 Recommendations for best use of mediaMAX MINI ........6 3 Package contents ..................7 4 Technical specifi cations ................8 5 Meter’s power supply ................12 6 Front panel description ................13 6.1 Main keypad description ..............
- Page 6 User’s Manual - mediaMAX MINI HD 12 Key “fav” functions ................63 12.1 Confi guration .................. 63 13 Autoscan function ................64 14 Meter Backup ..................65 14.1 Copy all to USB ................65 14.2 Restore Backup from USB .............. 65 15 Clock adjustments ................
- Page 7 • High battery life (2 hours without LNB) With all the above features, the mediaMAX MINI HD fi eld strengh meter will allow the user to analyze all television signals, solving every problem on a terrestrial, cable or satellite installation.
- Page 8 The aim of this manual is to provide the fundamentals of the operation of the fi eld strength meters in order to make the best of it. The mediaMAX MINI HD fi eld strength meter is a portable devices, conceived for exterior use, with certain limitations: •...
- Page 9 • Adapter F-F female. Please note that this is a high quality adapter. Do not replace it by any other, since the frequency response is specifi c for this system. In case it’s necessary replace it, we advice to use ref. FBU-FBU Fte maximal • User’s quick reference guide •...
- Page 10 User’s Manual - mediaMAX MINI HD 4 TECHNICAL SPECIFICATIONS Auxiliary inputs / outputs - A/V: Minijack Audio/Vídeo input - RS-232: RJ45 connector Serial port for PC connection RF Standards - USB: Host Driver USB 2.0 - FM: 88-108 MHz - ETHERNET: RJ45 connector...
- Page 11 User’s Manual - mediaMAX MINI HD Spectrum DVB-S2 (QPSK and 8PSK) - Bands: 47-2150 MHz - Modes: QPSK and 8PSK - Detection: Peak and Average - Measurements: Channel Power, Noise Margin, C/N, BER before and alter of the - Display mode: Horizontal sweep and logaritmic...
- Page 12 User’s Manual - mediaMAX MINI HD - USB: Host Driver USB 2.0 - ETHERNET:RJ45 connector -HDMI: Connector Audio / Video Output HDMI RF Standards - FM: 88-108 MHz - Terrestrial: B/G (CCIR), Power Supply B/G DE, S band channels in Germany...
- Page 13 User’s Manual - mediaMAX MINI HD - Span: Full, 500, 200, 100, 50, 20 or DVB-T (COFDM) 10 MHz - Measurements: Channel Power, Noise Margin, C/N, BER before and alter Viterbi, - Resolution fi lter: 300 kHz MER, Wrong Packets...
- Page 14 The fi eld strength meter may receive its power supply via its internal batteries or using the external power supply provided with the meter. The mediaMAX MINI HD includes a 30W/hour Li-Ion battery, which will provide over two hours of operation (without feeding LNC).
- Page 15 User’s Manual - mediaMAX MINI HD 6 FRONT PANEL DESCRIPTION The mediaMAX MINI HD front panel presents the following apparearence: The front panel of the test equipment is made of 4 main parts: 1.- Monitor. It displays the OSD menu that allows to navigate through the differents options to display the spectrum, measurements, pictures, etc.
- Page 16 User’s Manual - mediaMAX MINI HD 6.1 Main keypad description By default, to switch from an Analogue carrier to a Digital one. It can be confi gured with other functions. With numeric entry active it is #1. With alphabetic entry active, it is * / # Audio menu.
- Page 17 User’s Manual - mediaMAX MINI HD setup Setup meter menu. The options are the following: 1. System: • Language • Beep: key’s beep • Favorite key confi g • System info • Factory default • Firmware upgrade • Update Autoscan •...
- Page 18 User’s Manual - mediaMAX MINI HD 4. Backup: Function to restore the system: 1) Save all datas to USB: Function to make a security copy into a USB device. 2) Restore datas from USB: Function for restoring a copy of security from a USB device.
- Page 19 User’s Manual - mediaMAX MINI HD tools Tools menu: • Datalogger • Satellite fi nder • Band Scan • DVB-T • PRO 200 mode • Transmodulator Programming • TS Recording With numeric entry active it is #8. With alphabetic entry active, it is t u v...
- Page 20 User’s Manual - mediaMAX MINI HD options Signals setup options: 1. Carrier mode: (Analog, digital) 2. Digital modulation (it depends on selected band) COFDM Setup: Mode: (Auto, 8K, 2 K) Spectrum inversion: (Auto, On, Off) Guard interval: (Auto, ¼, 1/8, 1/16, 1/32)
