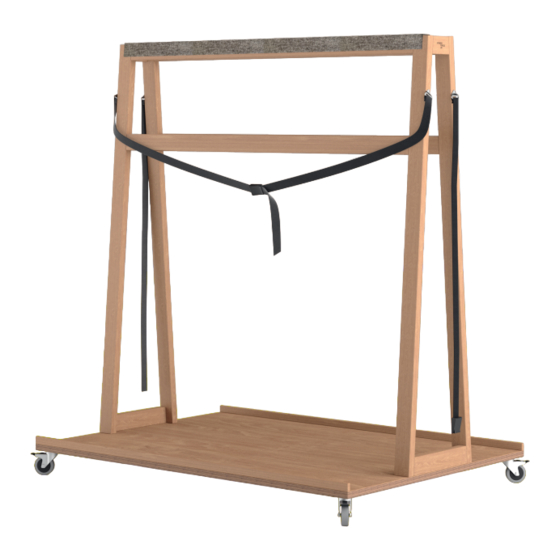

Trolley
Assembly instructions
Scope of delivery
A
Cross struts (4x)
B
Side frames (2x)
D
Castors with brakes (2x)
E
Castors without brakes (2x)
G1
G3
G2
G1, G2 & G3
Quick Connectors (12x)
In case of any uncertainties or difficulty in understanding, please contact us before you start the assembly.
Diese Montageanleitung ist in Englisch verfasst. Falls Sie etwas nicht verstehen oder Unklarheiten bestehen,
kontaktieren Sie uns bitte bevor Sie mit der Montage beginnen.
C
Base panel (1x)
F
Felt sticky tape (2x)
