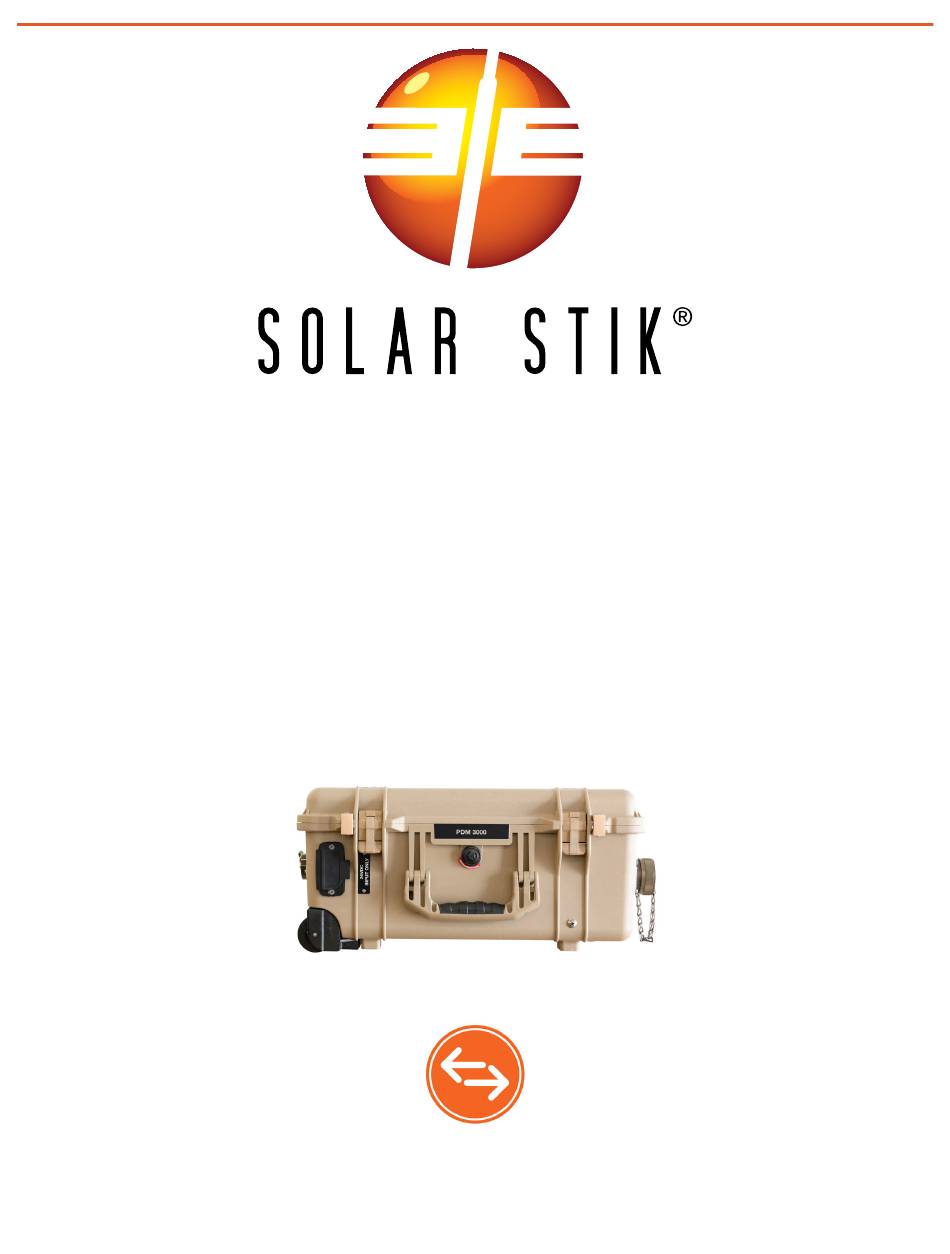

OPERATOR AND MAINTENANCE MANUAL FOR THE POWER DISTRIBUTION MODULE (PDM) 3000 Item #: 20-0002510 DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited. Revision: A Updated:20200428 April 2020 Solar Stik , Inc. ®...
Page 3
Figure 10. Connecting 24 VDC power source to the PDM 3000 ..................14 Figure 11. Connecting a voltage-sensitive 28.0 VDC load to the PDM 3000 ..............15 Figure 12. Connecting a 24 VDC load to the PDM 3000 ....................15 Figure 13.
DC loads that are sensitive to the quality of power. The PDM 3000 “boosts” the DC bus voltage (typically < 30.0 VDC), up to 36 VDC then “bucks” it down to a stable, regulated 28.0 VDC. Power sources (24 VDC nominal) may be connected to the Inter-Connect port or to the NATO port.
While the PDM 3000 is designed for indoor/outdoor operation, the cutouts on the bottom must remain clean with access the environment for proper cooling. The PDM 3000 is not field serviceable. If repair is needed, contact Solar Stik Technical Support for assistance in diagnosis and identification of the proper repair and parts.
Operator and Maintenance Manual for the PDM 3000 Fire Hazard Fire Types Class A fire - Fires in ordinary combustibles such as wood, paper, cloth, trash, and plastics. Class B fire - Fires in flammable liquids such as gasoline, petroleum, oil, and paint.
Operator and Maintenance Manual for the PDM 3000 Electric Shock Hazard WARNING Standing water around the electrical equipment and/or intrusion of water into the System components can increase the risk of electrical shock. DON’T LET THIS BE YOU! HIGH VOLTAGE:...
Operator and Maintenance Manual for the PDM 3000 Environmental and Handling Precautions All Solar Stik components are ruggedized, yet there are a few things the operator can do to prevent failures and prolong the operational life of the product. Water...
Operator and Maintenance Manual for the PDM 3000 Equipment Description The Inter-Connect System The System is comprised of three (3) distinct types of technologies: • Energy storage • Power management • Power generation All of the individual components that operate in these categories utilize a unique connection architecture known as the Inter-Connect Circuit.
Operator and Maintenance Manual for the PDM 3000 The Inter-Connect Plug Polarized • 200 A maximum current • 24 VDC connection only • Mechanically “locks” into place • Rotate knob clockwise to lock, • counterclockwise to release Can be repaired or modified in the field •...
Operator and Maintenance Manual for the PDM 3000 PDM 3000 Connections Power Input The 24VDC Input Only Inter-Connect port allows the PDM 3000 to use the Solar Stik HPS Inter- Connect circuit as a power source. Description Connector Voltage Amps...
Operator and Maintenance Manual for the PDM 3000 Regulated Power Output The 2-pin connector in the right side of the PDM 3000 provides regulated 28.0 VDC power to a load. The 100 A breakers on the right side also serve as power switches for engaging and disengaging power circuits to the 24 VDC NATO and 28.0 VDC Amphenol ports.
Operator and Maintenance Manual for the PDM 3000 PDM 3000 Information Plate (I-Plate) Figure 8. PDM 3000 top, Faceplate, specs, and cautions April 2020 Solar Stik , Inc. ®...
Figure 9. PDM 3000 output breakers 2 Use an Inter-Connect cable to connect the PDM 3000 to a 24 VDC power source (e.g., Solar Stik HPS PRO-Verter or Power Hub DC bus). The choice of HPS Inter-Connect port will depend on the HPS configuration.
Do NOT connect a battery directly to the regulated 28 VDC output port. Connecting a battery directly to the regulated 28 VDC output port will damage the PDM 3000. 4 Use a NATO slave cable to connect load to 24 NATO port to a load (tower).
It performs optimally within a narrow temperature range and less so as the temperature falls outside of that range. Heat will cause the PDM 3000 to derate. Please use the following measures to mitigate against heat and other environmental effects: •...
When it is dry, reintegrate the component to the System and test it to determine if it is still functional. Figure 13. Location of drain plug screws in the PDM 3000 April 2020 Solar Stik , Inc.
Operator and Maintenance Manual for the PDM 3000 PDM 3000 PMCS The PDM 3000 case is sealed. No maintenance of internal parts is required or advised. Table 1. PDM 3000 PMCS Item to be Item # Inspected Interval Procedures Non-mission Capable 1.
Operator and Maintenance Manual for the PDM 3000 Transporting Components The PDM 3000 carries like a briefcase using the case handles (arrow). There are no transport restrictions. It is safe for all modes of transportation, including land, sea, and air.
Operator and Maintenance Manual for the PDM 3000 SUPPORTING INFORMATION PDM 3000 Technical Specifications Safety • (1) 100 A unregulated DC output breaker Breaker(s) • (1) 100 A regulated DC output breaker Fuse(s) (1) 200 A catastrophic fuse Reverse Polarity...
Page 21
1 Solar Stik warrants, unless otherwise agreed to between buyer and seller (Solar Stik, Inc.), for a period of one (1) year from Solar Stik’s delivery of such Products, the Products shall be free from defects in materials and workmanship and shall conform to the contractual specifications or to specification sheet of the Product.
Page 22
Operator and Maintenance Manual for the PDM 3000 April 2020 Solar Stik , Inc. ®...
Page 23
• Solar Stik New Equipment Training (on site) teaches Hybrid System configuration options with hands-on deployment of actual systems to enhance student understanding. Solar Stik Training Courses are tailored to the specific needs of the students. To schedule Solar Stik Training or to learn more about the curriculum, please contact us.
