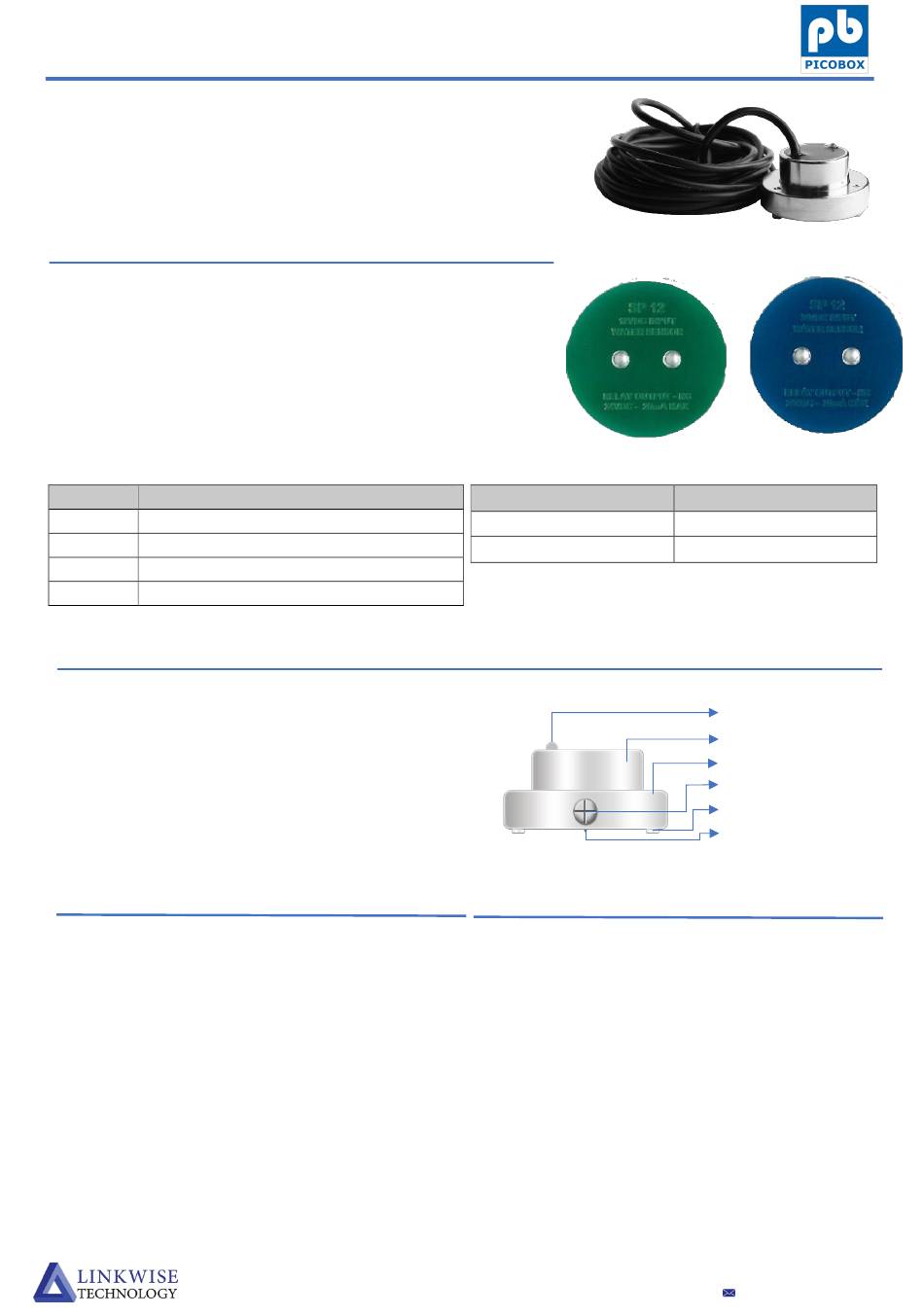

PB SP-12 User Manual

SP-12
User Guide
Water Detection Sensor
A water-resistant sensor specially designed to provide early
detection of water sources, leaks or spills and also to
prevent damage and downtime around your facilities.
TECHNICAL SPECIFICATIONS
Type: Spot Water Detection Probe
Power Supply: 12VDC or 24VDC (refer to the table)
Output Rating: NC Relay Dry Contact, 24V, 1A (Non-polarity)
Sensing Height: 1mm to 6mm (Adjustable)
Dimension: 24(h) x 44(diameter) mm
Weight: 120g
Enclosure: Chrome Plated, Brass Material
Cord: 4-core (2 Power, 2 Contacts), 3 meters
Wiring Color Code
Color
Red Positive Supply (+)
Black Negative Supply (-)
Yellow Relay Contact (NC)
White Relay Contact (COM)
FEATURES
▪ Solid chrome brass construction
▪ Sealed, waterproof and impact resistant
▪ 12 or 24VDC, 1 A output relay contact
▪ Fail-safe, normally closed (NC) relay
contact
▪ Adjustable sensor height
▪ Visual alarm indication
▪ Standard 3m cable length
INSTALLATION
Place SP-12 on a flat surface where
1.
water accumulation or water leakage
can possibly occur. (Ex: air-conditioner
water tray, pantry, flood prone rooms)
Connect the red (+) and black (-) wires
2.
to the power supply. It depends on the
color of the PCB if it will be connected
to a 12VDC or 24VDC supply
The white and yellow wire are the relay
3.
alarm outputs. You can connect it as
inputs in EMS devices such as Picobox
REX and FMGuard or other alarm
detection systems.
Description

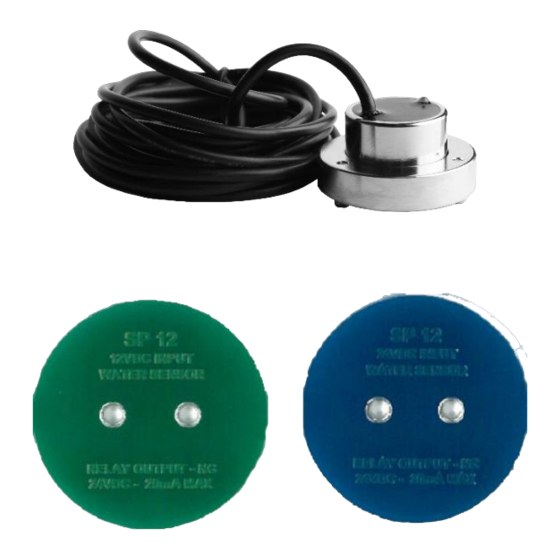

PCB Color Scheme
Color
Green
Blue
*Refer to the figure above
OPERATION
When water comes in contact with the
two sensing probes, the relay contact
would change from close to open
contact and the LED indicator would
turn red.
Supply
12VDC
24VDC
LED Indicator
Sensing Head
Mounting Ring
Locking Screw
Spacing Screws
Sensing Probe
Figure 1
