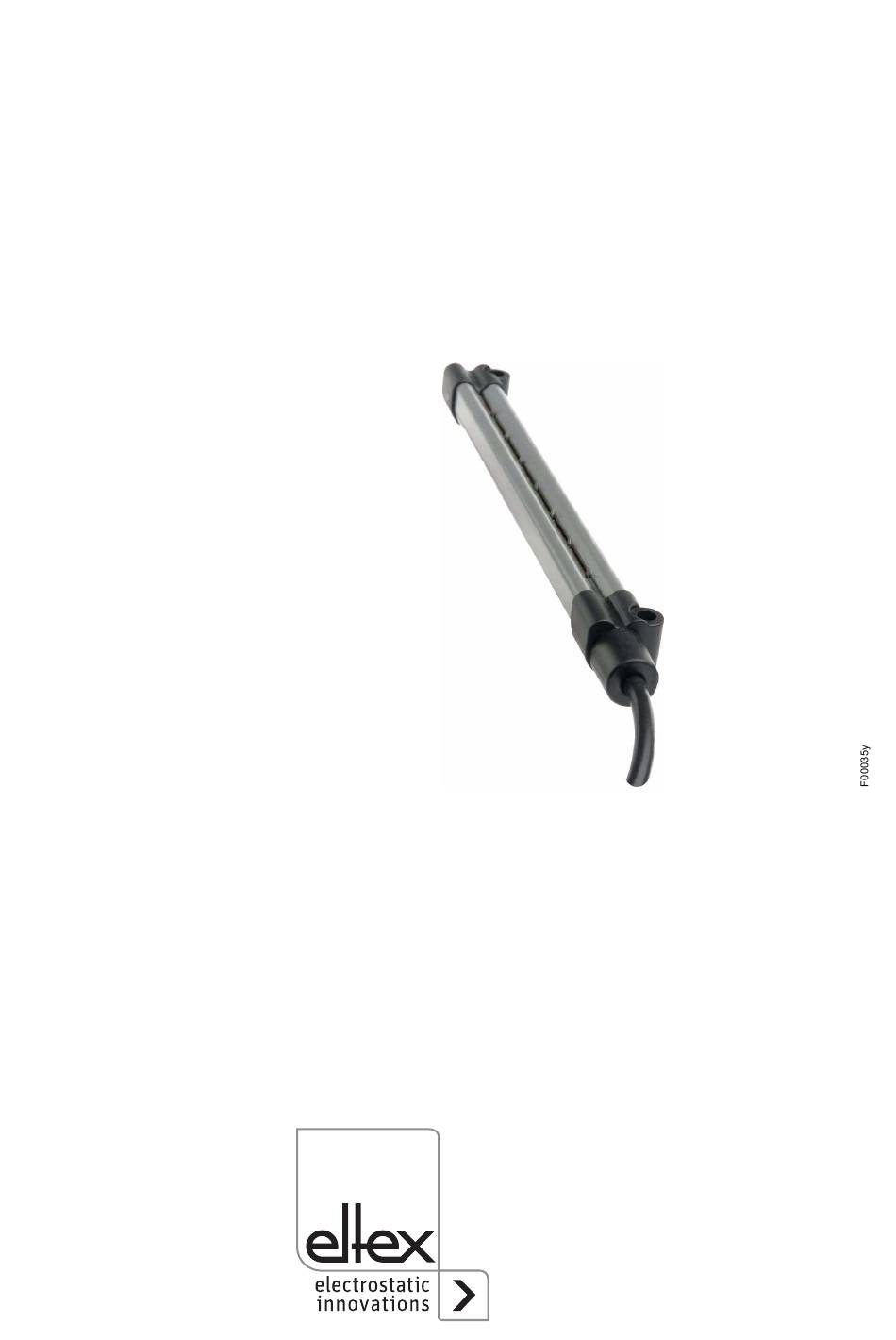

- Page 1 Operating Instructions Series R45 Discharging Bars for AC Operation BA-en-2045-1808...
- Page 2 BA-en-2045-1808_R45...
-
Page 3: Table Of Contents
List of contents Outline of appliance ........5 Safety . - Page 4 • no health hazards in case of electric shocks when making contact with the tips The optimum discharging effect is guaranteed in conjunction with the Eltex high voltage power supplies. Please read the operating instructions carefully before operating the unit.
-
Page 5: Outline Of Appliance
1. Outline of appliance Fig. 1: Overview of the R45 discharging AL = active length GL = total length max. active length = 2600 mm Grid width emission tips 20 mm non-detachable connection of the high voltage cable axial design BA-en-2045-1808_R45... -
Page 6: Safety
Eltex power supplies. These power supplies guarantee the optimum adap- tation to the required operational data for the different active bar lengths. Safe operation of the bars is ensured only by using the Eltex power sup- plies. Modifications or changes to the discharging bars are not permitted. -
Page 7: Work And Operational Safety
Shortening the shielded high voltage cable on the connect- ing side of the power supply is permitted. Extending the cable is permit- ted only when using the Eltex distributor as well as original high voltage cables and glands. • The operation of the bars can generate ozone. The ozone concentra- tion levels developing near the bars depend on many different factors such as site of installation, bar current and voltage, air circulation, etc.,... -
Page 8: Contact Protection
The manufacturer reserves the right to make changes to the technical specifications without prior notice in order to adapt the units to state-of- the-art engineering. Eltex will provide the latest information on any changes or modifications in the operating instructions on request. - Page 9 Caution! Observe adequate creepage paths! The minimum distance between the emission tip brackets and the conduc- tive machine environment must be 20 mm. Fig. 2: Assembling the discharging bar oblong holes for mounting, use only enclosed bolts made of plastic alternative attachment via mounting clamps, bolts made of plastic or metal can be used one additional clamp for AL >1,000...
- Page 10 Locating the discharging bar The best possible discharging results are achieved if the bar is located in areas with minimum web capacities. In practical terms this means placing the bar with maximum distances from the machine environment, i.e. no discharging against the idler roller. A rough guideline: A space with the radius R of the bar distance to the web ought to be kept free of any conductive material (Fig.
-
Page 11: Length Of The High Voltage Cable
3.2 Length of the high voltage cable The total length of discharging bar and high voltage cable is limited due to the loading capacity of the transformer in the power supply. The maximum loading capacity is a function of the active bar length and the length of the high voltage cables. -
Page 12: Operation
4.2 Function control Use the Eltex Volt Stick or a glow-lamp voltage tester to check the proper function of the emission points. Quote Article No. 109136 when ordering the Volt Stick from Eltex. -
Page 13: Maintenance
The inspection intervals are specified in the accident prevention regulations, as amended (e.g. in Germany DGUV V3). Eltex recommend inspection intervals of 6 months. The function of the series resistors must be checked using a suitable measuring device. -
Page 14: Troubleshooting
6. Troubleshooting Warning! Electric shock hazard! Switch off the supply voltage to the power supply before carrying out any repair or maintenance work. No voltage must apply at the discharging bars. Repairs must be carried out by qualified personnel. Malfunction: Effectiveness of the application declining. -
Page 15: Warranty
The warranty applies only if the operating and assembly instructions spec- ified by Eltex have been observed. The warranty period begins on the date of delivery. In the event of defects occurring during the warranty period, the units or defective components will be repaired at Eltex. -
Page 16: Technical Specifications
2,600 mm see Fig. 5. Weight approx. 0.40 kg/m Operating voltage max. 6 kV AC, 50/60 Hz as shown on High voltage supply via Eltex power supplies appliance marking: High voltage high voltage cable, axial lead-out connection Short-circuit current 0.5 mA... -
Page 17: Dimensions
9. Dimensions Fig. 5: Dimensions of the R45 discharging AL = active length GL = total length BA-en-2045-1808_R45... -
Page 18: Spare Parts And Accessories
10. Spare parts and accessories Article Article No. High voltage distributor, discharging, 5 terminals (1 input, 4 outputs) High voltage distributor, discharging, 4 terminals (1 high voltage cable, 4 outputs) (specify plug type and cable length) ESV61 High voltage distributor, discharging, 2 terminals (1 high voltage cable, 2 outputs) ESVY61/__ (specify plug type and cable length) - Page 20 Eltex offices and agencies The addresses of all Eltex agencies can be found on our website at www.eltex.com Eltex-Elektrostatik-Gesellschaft mbH Blauenstraße 67-69, D-79576 Weil am Rhein Phone +49 (0) 76 21/ 79 05 - 230 +49 (0) 76 21/ 79 05 - 330 eMail static-control@eltex.com...
