ONE UPHOLSTERED BED
ASSEMBLY INSTRUCTIONS
BOX#1
A.
HEADBOARD PANEL
BOX#2
B.
LEFT
SIDE RAIL
C.
RIGHT
SIDE RAIL
D. FOOTBOARD
E. SLAT
F. CENTER SLAT SUPPORT
G. SIDE RAIL SLAT CLIP
H. CENTER SUPPORT SLAT CLIP
I. SLAT SUPPORT LEG
HARDWARE SET
B
D
E
G
C.KING/E.KING
1 PC
A
1 PC
1 PC
1
PC
39
PCS
2
PCS
26
PCS
26
PCS
4
PCS
C
F
H
I
HARDWARE PACKED IN BOX#1
1
ALLEN
BOLT(1/4"x1")
2
FLAT WASHER(5/16")
3
LOCK WASHER(5/16")
4
ALLEN
KEY( /
1 4")
HARDWARE PACKED IN BOX#2
1
ALLEN
BOLT(5/16"x1")
2
ALLEN
BOLT(5/16"x2-1/2")
3
FLAT WASHER(5/16")
LOCK WASHER(5/16")
4
ALLEN KEY 5/16")
(
5

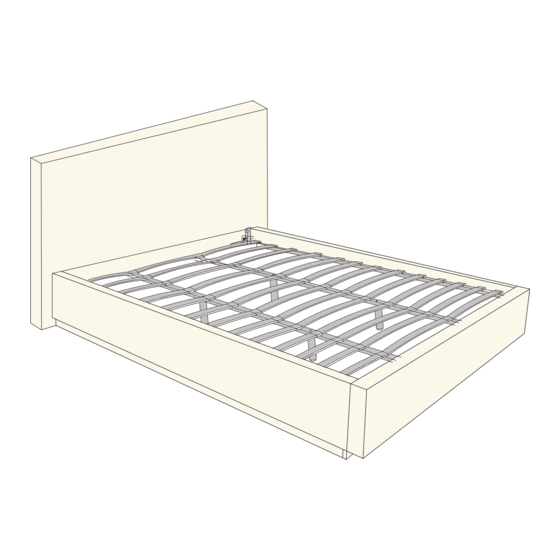

ONE UPHOLSTERED BED ASSEMBLED
8 PCS
8 PCS
8 PCS
1 PC
8 PCS
4 PCS
12 PCS
12 PCS
1 PC
x2
00:30
Advertisement
Table of Contents
Related Manuals for Modus Furniture C.KING
Summary of Contents for Modus Furniture C.KING
- Page 1 ONE UPHOLSTERED BED C.KING/E.KING ASSEMBLY INSTRUCTIONS BOX#1 HARDWARE PACKED IN BOX#1 HEADBOARD PANEL 1 PC 8 PCS ALLEN BOLT(1/4"x1") FLAT WASHER(5/16") 8 PCS 8 PCS LOCK WASHER(5/16") ALLEN KEY( / 1 4") 1 PC HARDWARE PACKED IN BOX#2 ALLEN BOLT(5/16"x1")
- Page 2 ONE UPHOLSTERED BED C.KING/E.KING ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 STOP IF USING BED WITH AN ADJUSTABLE MATTRESS BASE, SKIP STEPS 3, 4, 5&6 AND REFERENCE APPENDIX A: ADJUSTABLE MATTRESS BASE ASSEMBLY SUPPLEMENT. IF USING BED FRAME WITH STANDARD BOX SPRING OR FOUNDATION, CONTINUE TO STEP 3.
- Page 3 ONE UPHOLSTERED BED C.KING/E.KING ASSEMBLY INSTRUCTIONS STEP 4 STEP 5: STARTING FROM HEADBOARD STEP 6 UPDATED:JULY 23RD, 2022...
- Page 4 ONE UPHOLSTERED BED C.KING/E.KING ASSEMBLY INSTRUCTIONS ASSEMBLY COMPLETE. MAINTENANCE INSTRUCTIONS: INSTRUCTIONS FOR ADJUSTING LEVELERS: REMOVE BOX SPRING AND MATTRESS POSITION THE BED IN YOUR ROOM. BEFORE MOVING YOUR BED. LOCATE LEVELERS UNDER EACH SUPPORT LEG ( I ). LIFT YOUR BED WHEN MOVING IT.
- Page 5 ONE UPHOLSTERED BED C.KING/E.KING ASSEMBLY INSTRUCTIONS APPENDIX A:ADJUSTABLE MATTRESS BASE ASSEMBLY SUPPLEMENT AN ADJUSTABLE MATTRESS BASE IS A FREESTANDING MATTRESS SUPPORT THAT SITS WITHIN THE PERIMETER OF THE BED FRAME. IF USING THIS BED FRAME WITH A STANDARD BOX SPRING OR FOUNDATION THESE INSTRUCTIONS DO NOT APPLY.
