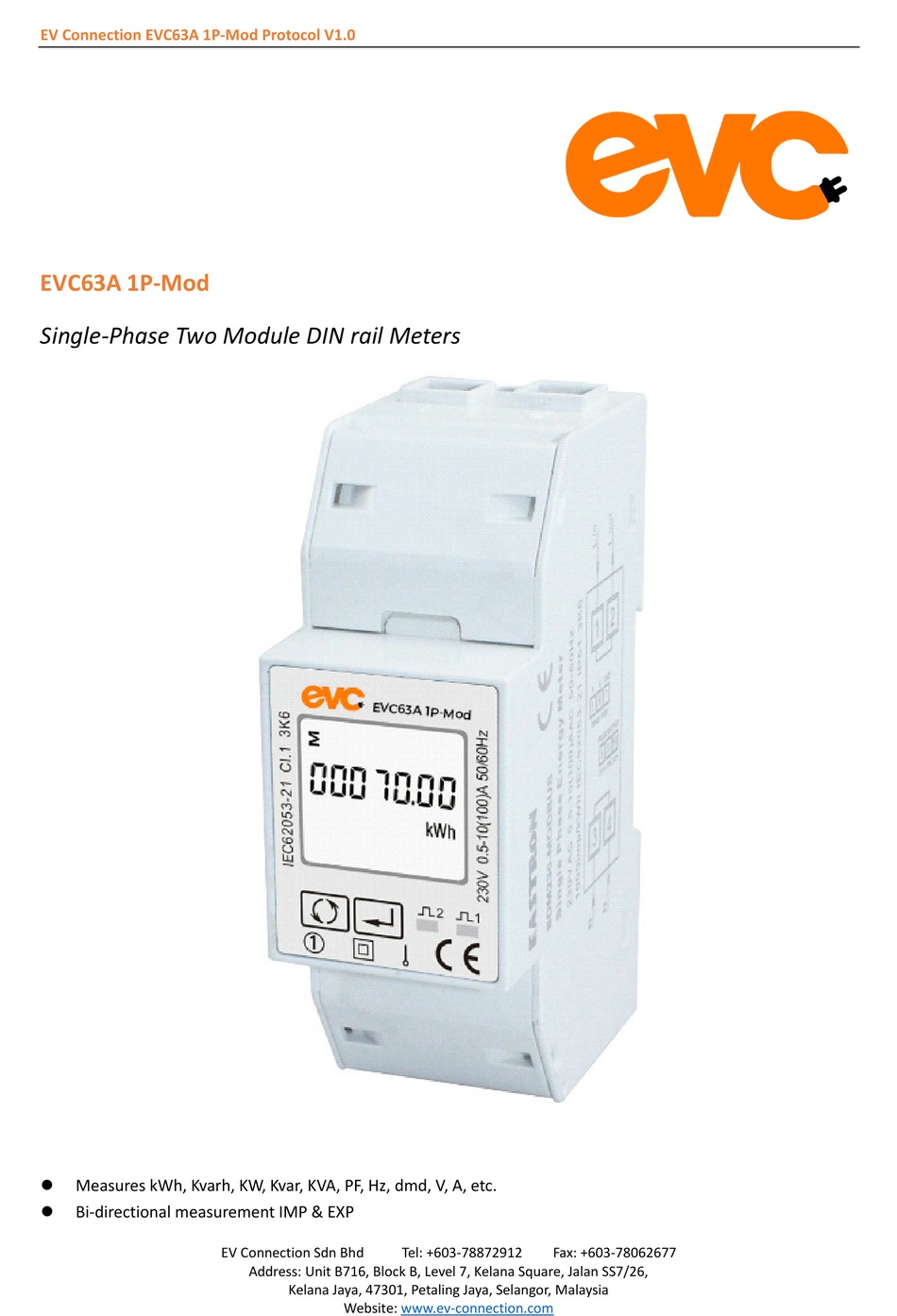

EV Connection EVC63A 1P-Mod Protocol V1.0
EVC63A 1P-Mod
Single-Phase Two Module DIN rail Meters
Measures kWh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
EV Connection Sdn Bhd
Address: Unit B716, Block B, Level 7, Kelana Square, Jalan SS7/26,
Kelana Jaya, 47301, Petaling Jaya, Selangor, Malaysia
Website:
Tel: +603-78872912
Fax: +603-78062677
www.ev-connection.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVC63A 1P-Mod and is the answer not in the manual?

Questions and answers

Summary of Contents for EVC EVC63A 1P-Mod

  • Page 1 EV Connection EVC63A 1P-Mod Protocol V1.0 EVC63A 1P-Mod Single-Phase Two Module DIN rail Meters  Measures kWh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, etc.  Bi-directional measurement IMP & EXP EV Connection Sdn Bhd Tel: +603-78872912 Fax: +603-78062677...

  • Page 2: General Specifications

    EV Connection EVC63A 1P-Mod Protocol V1.0  Two pulse outputs  RS485 Modbus  Din rail mounting 35mm  100A direct connection  Better than Class 1 / B accuracy User Manual V1.4 2018 Application The energy-meters “with a white back-lighted LCD screen for prefect reading” are used to measure single-phase like residential, utility and Industrial application.
  • Page 3 EV Connection EVC63A 1P-Mod Protocol V1.0 Power factor 1% of Unity Active power 1% of range maximum Reactive power 1% of range maximum Apparent power 1% of range maximum Active energy Class 1 IEC62053-21 Class B EN50470-3 Reactive energy 1% of range maximum...

  • Page 4: Operation

    EV Connection EVC63A 1P-Mod Protocol V1.0 Mounting DIN rail 35mm Sealing IP51 (indoor) Material self-extinguishing UL94V-0 LCD display Item Descriptions 7 digits used to display measured values or RTC Total value Import information, Export information Max. Demand for Power or Current...
  • Page 5 EV Connection EVC63A 1P-Mod Protocol V1.0 After initialization and self-checking program, the meter display the measured values. The default page is total kWh. If the user wants to check other information, he needs to press the scroll button on the front panel.
  • Page 6 EV Connection EVC63A 1P-Mod Protocol V1.0 Import reactive energy Example: 5.00kVarh Export reactive energy Example: 5.00kVarh Total resettable reactive energy Total max. demand Example: 6930W Voltage Example: 229.8V Current Example: 30.156A Active Power Example: 4700W EV Connection Sdn Bhd Tel: +603-78872912...
  • Page 7 EV Connection EVC63A 1P-Mod Protocol V1.0 Reactive Power Example: 1030Var Apparent power Example: 4811VA Power factor Example: 1.000 Frequency Example: 49.99Hz Pulse Constant Example: 1000 Modbus Address Example: 001 Baud rate Example: 9600 EV Connection Sdn Bhd Tel: +603-78872912 Fax: +603-78062677...
  • Page 8 EV Connection EVC63A 1P-Mod Protocol V1.0 Continuous running time(In total) Set-up Mode To get into Set-up Mode, the user need press the “Enter” button for 3 second. Page Display Descriptions The setting is done correctly The entering information is wrong. The operation fails.
  • Page 9 EV Connection EVC63A 1P-Mod Protocol V1.0 Press the “Enter” button, the first digit flash. Press the “Scroll” button to change the value. After choose the new address value, the user need pressing the “Enter” button to confirm the setting. Baud rate Default value: 2400bps Range: 1200, 2400, 4800, 9600bps.
  • Page 10 EV Connection EVC63A 1P-Mod Protocol V1.0 Pulse Constant Default: 1000 Option: 1000 / 100 / 10 / 1 Press the “Enter” button, the red part flash. Press the “Scroll” button to change the option. After choose the new Pulse constant option, the user need pressing the “Enter”...
  • Page 11 EV Connection EVC63A 1P-Mod Protocol V1.0 Press the “Enter” button, the red part flash. Press the “Scroll” button to change the option. After choose the new “Scrl” option, the user need pressing the “Enter” button to confirm the setting. Backlit lasting time set-up...

  • Page 12: Wiring Diagram

    EV Connection EVC63A 1P-Mod Protocol V1.0 10-1 Press the “Enter” button, the red part flash. Press the “Scroll” button to change the value. After choose the new password, the user need pressing the “Enter” button to confirm the setting. Wiring diagram...
  • Page 13 EV Connection EVC63A 1P-Mod Protocol V1.0 Installation EV Connection Sdn Bhd Tel: +603-78872912 Fax: +603-78062677 Address: Unit B716, Block B, Level 7, Kelana Square, Jalan SS7/26, Kelana Jaya, 47301, Petaling Jaya, Selangor, Malaysia Website: www.ev-connection.com...
