Summary of Contents for Data Video DDC-2512

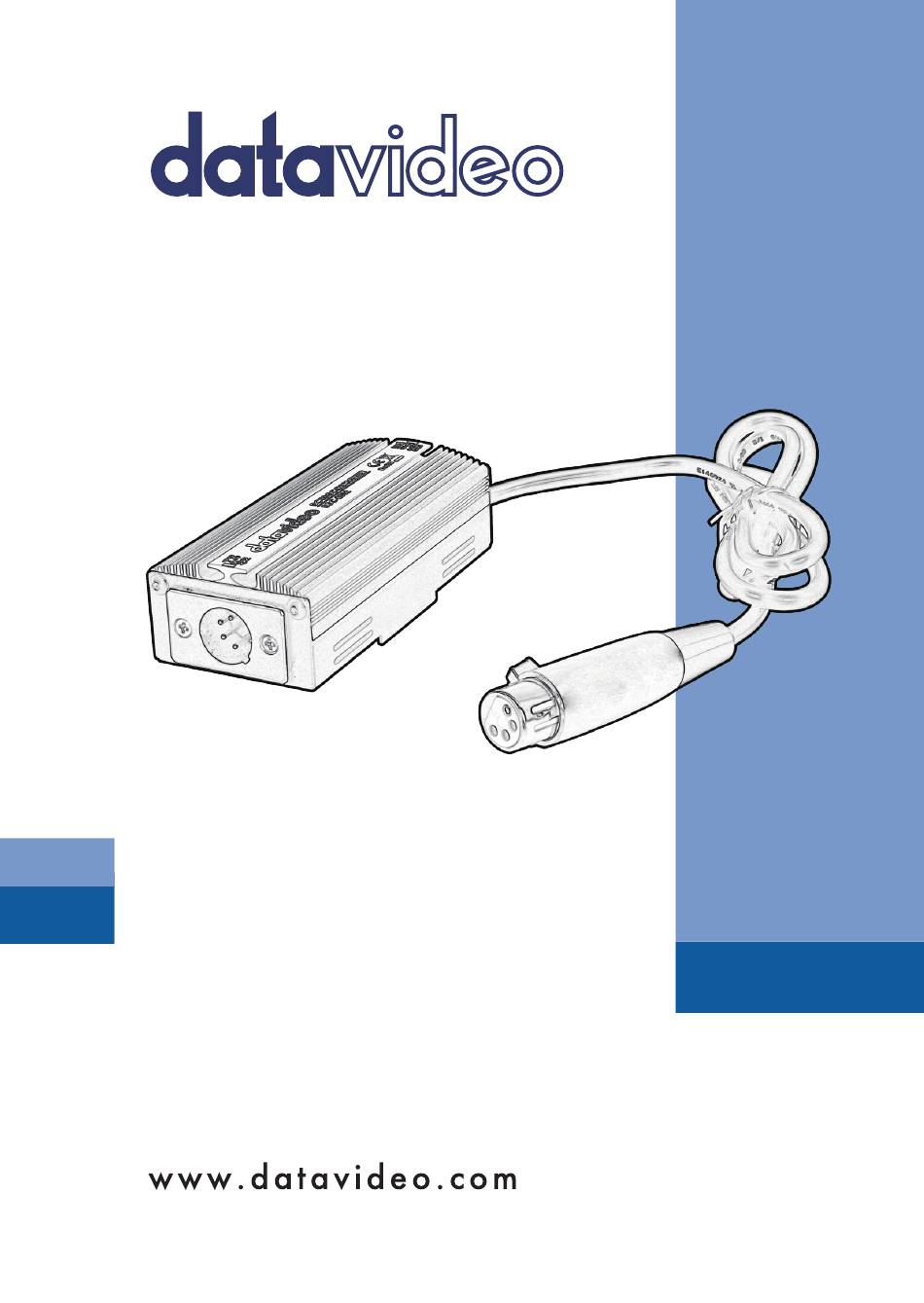

- Page 1 DC to DC 12V 2.5A Converter DDC-2512 Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents FCC COMPLIANCE STATEMENT ................2 WARNINGS AND PRECAUTIONS ................2 WARRANTY ......................4 ..................4 TANDARD ARRANTY ..................4 HREE ARRANTY DISPOSAL ......................5 INTRODUCTION ....................6 PD-3 ................. 6 XAMPLE UNIT XLR C ..................6 ONNECTIONS SPECIFICATIONS .................... -
Page 3: Fcc Compliance Statement
FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warnings and Precautions Read all of these warnings and save them for later reference. - Page 4 Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself.
-
Page 5: Warranty
Warranty Standard Warranty Datavideo equipment are guaranteed against any manufacturing defects • for one year from the date of purchase. The original purchase invoice or other documentary evidence should be • supplied at the time of any request for repair under warranty. The product warranty period begins on the purchase date. -
Page 6: Disposal
Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 7: Introduction
Introduction The DDC-2512 is a proven way to supply power to third party cameras or AV equipment. The DDC-2512 is designed to be used with the Datavideo PD-3 Power Distribution unit and CB-23 All-in-one cable. The DDC-2512 automatically accepts input voltages between 9 and 30 V DC to provide a regulated 12V DC output. - Page 8 4 Pin XLR Connections DC Input 9V DC ~ 30 V DC Pin 1 = GND ( - ) Pin 2 = NC Pin 3 = NC Pin 4 = VCC ( + ) DC Output 12V 2.5A Pin 1 = GND ( - ) Pin 2 = NC Pin 3 = NC Pin 4 = VCC ( + )
-
Page 9: Specifications
Specifications Voltage Range 9V~30V DC Input Efficiency (Typ.) UP TO 85% DC Voltage Voltage Tolerance ±3% Rated Current 2.5 A Output Current Range 0~2.5 A Rated Power Ripple & Noise (max) <400mV 105%~150% rated output power Protection Over Load Protection type: Recovery automatically after fault condition is removed DC Input... - Page 10 115 mm x 50 mm x 35 mm Dimensions (L x W x H) Others Weight Approx. 0.3 kg/ 0.66 lbs Cable UL 2464 ,18AWG, L=1M...
-
Page 11: Service & Support
Tel: +65-6749 6866 Fax:+65-6749 3266 Fax:+33-1-60376732 Tel: +86 531-8607 8813 E-mail:info@datavideovirtualset.com E-mail:service@datavideo.cn E-mail:info@datavideo.fr Please visit our website for latest manual update. http://www.datavideo.com/product/DDC-2512 All the trademarks are the properties of their respective owners. Datavideo Technologies Co., Ltd. All rights reserved 2018 Jul-07.2017...
