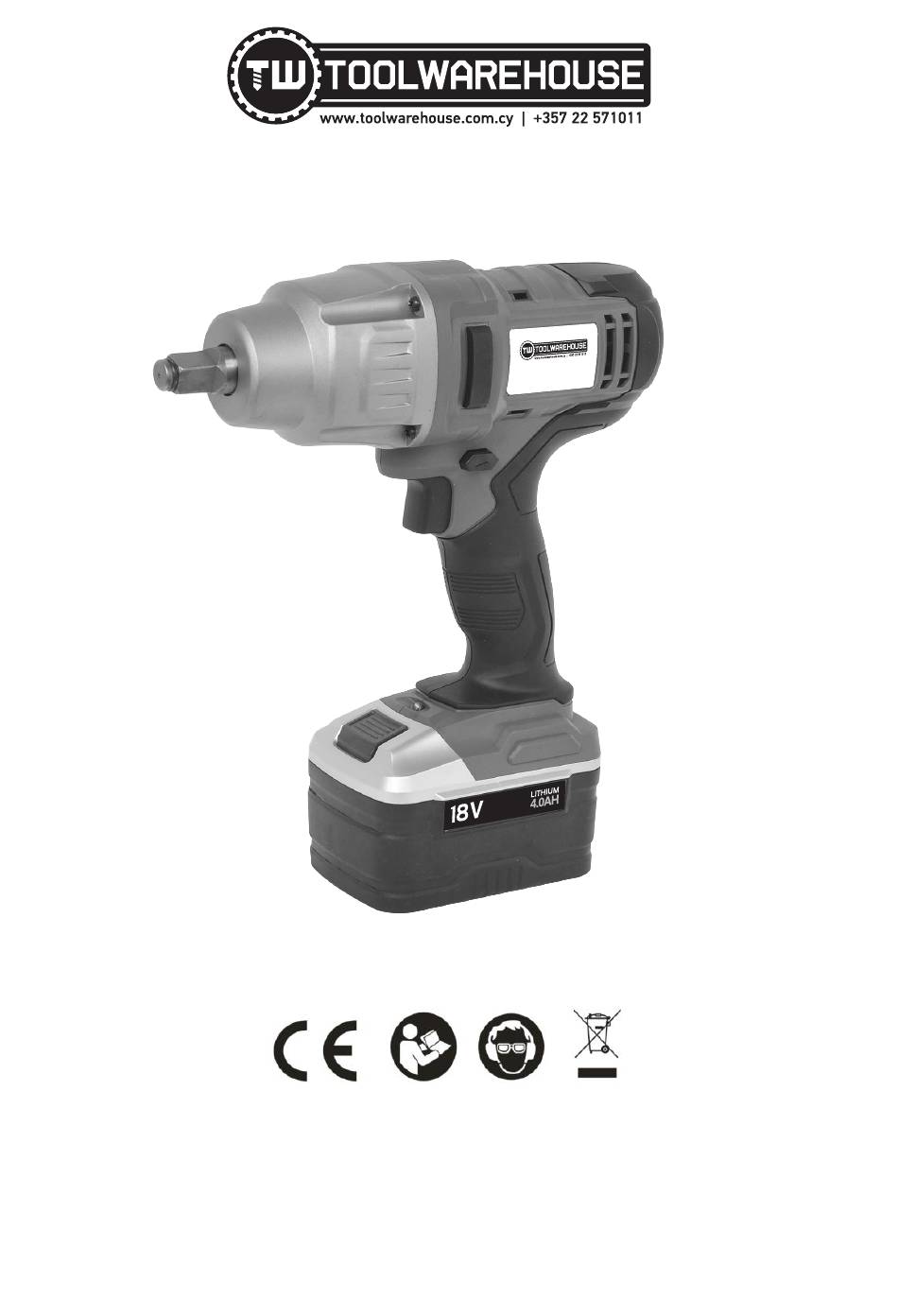

18V 4.0AH LI-ION CORDLESS IMPACT WRENCH
WT03056
IO N CO RD LE SS
18 V 4.0 AH LI-
CH
IM PA CT WR EN
WT 030 56
ORIGINAL INSTRUCTIONS
Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any
errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems
please contact our Customer Services.
SAVE THESE INSTRUCTIONS FOR REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WT03056 and is the answer not in the manual?

Questions and answers

Summary of Contents for TOOL WAREHOUSE WT03056

  • Page 1 18V 4.0AH LI-ION CORDLESS IMPACT WRENCH WT03056 IO N CO RD LE SS 18 V 4.0 AH LI- IM PA CT WR EN WT 030 56 ORIGINAL INSTRUCTIONS Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data.

  • Page 2: General Power Tool Safety Warnings

    SYMBOLS The following symbols are used in this manual and/or on the machine: WARNING – To Denotes risk of reduce the risk personal injury or of injury, user damage to the tool must read instruction manual” In accordance with Mandatory use of essential safety eye protection standards of...
  • Page 3 Distractions can cause you to lose control. 2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
  • Page 4 that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.
  • Page 5 with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

  • Page 6: Technical Data

    TECHNICAL DATA Rated Voltage 18V d.c Rated speed 0-1600rpm Rated Impact 0-3200bpm Chuck 1/2” square head Max torque 520N.m Battery pack Rated 18Vd.c. 4.0Ah SAMSUNG li-ion battery Battery Charger Input voltage 100-240V AC, 50Hz, 75W Output voltage 18V d,c, 2500mA Charging time 100 mins Class...
  • Page 7 Battery pack release button LED work light OPERATING INSTRUCTIONS SHOW The cordless impact wrench with 1/2” square head.
  • Page 8 Selecting correct socket Always use the correct size socket for bolts and nuts. An incorrect size socket will result in inaccurate and inconsistent fastening torque and / or damage to the bolt or nut. Refer to accessories section for socket size. Installing or removing socket Always be sure that the tool is switched off and the battery pack is removed before installing or removing the socket.

  • Page 9: Maintenance And Cleaning

    LED worklight The impact wrench is equipped with an LED worklight(7). The LED worklight illuminates immediately after pulling the trigger and turns off once release the trigger. MAINTENANCE AND CLEANING The driver is maintenance – free but must be kept clean. All replacement parts must be replaced by a trained electrician or an authorized service centre unless stated otherwise in this manual.
  • Page 10 Charging battery pack only with the chargers recommended by the  manufacturer. Charging the battery pack in another type of charger can lead to injury or  fire. Only use the battery pack with the power tools, The use of other batteries ...
  • Page 11 Do not dispose of used batteries in the household waste. Consult your  local authority or dealership for details of recycling or disposal facilities. Never dispose of battery pack in fire as this can lead to explosion. Never  attempt to open the battery pack. Use only original replacement batteries.
  • Page 12 Slide the battery pack onto the charger. Connect the charger to a suitable mains socket. The charger may become warm and buzz slightly during charging. This is normal and does not indicate a fault. 3. When the charger is plug in ,the green light will light up. When the battery pack is charging the red light will blink.

  • Page 13: Maintenance

    Maintenance and cleaning Maintenance The contacts on the battery pack and the charger must be kept clean. All replacement parts must be replaced by a trained electrician or an authorized service centre unless stated otherwise in this manual Cleaning Clean the battery charger housing using a soft, dry cloth. Disconnect the charger from the mains before cleaning.

  • Page 14: Parts Diagram

    PARTS DIAGRAM...

  • Page 15: Parts List

    PARTS LIST When servicing, use only identical replacement parts. Use of any other parts may create HAZARD or cause damage to your power tool. Any attempt to repair or replace electrical parts on this power tool may create a hazard unless repair is performed by a qualified technician. 1 Cross recess head self tapping screws,black coating 2 Gearbox cover 3 Shaft sleeve...
