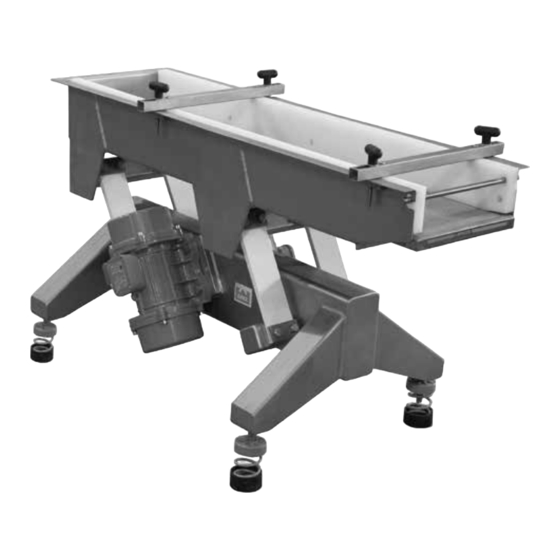

- Page 1 VM-3651 Installation, Operation and Maintenance Instructions VIBRA- TORY FEEDER MODEL HS36 VIBRATING FEEDERS & CONVEYORS MODEL TMR ERIEZ MAGNETICS HEADQUARTERS: 2200 ASBURY ROAD, ERIE, PA 16506–1402 U.S.A. WORLD AUTHORITY IN SEPARATION TECHNOLOGIES...
- Page 2 Careful attention to these requirements will assure the most efficient and dependable performance of this equipment. If there are any questions or comments about the manual, please call Eriez at 814-835-6000 for Conveyor assistance. WARNING Suspension mounting inherently involves risk of...
-
Page 3: Table Of Contents
Table of Contents ERIEZ VIBRATING FEEDER/CONVEYOR - MODEL TMR INSTALLATION Damage in Shipment ..................4 Handling ......................4 Installation Procedures ..................4 Wiring ......................4 OPERATION AND MAINTENANCE Principle of Operation ..................5 Special Troughs & Attachments ............... 5 Deflection ......................5 Adjustment of Force Output ................ -
Page 4: Installation
Conveyors arranged for suspension mounting should be hung from the base using eyebolts with rubber or steel coil isolation springs as provided by Eriez. See Figure 1. The isolation assemblies should be welded to suitable overhead structure. Wire rope and/or... -
Page 5: Operation And Maintenance
The troughs as Feeder tray motion is provided by eccentric weights furnished by Eriez should not be modified or attach- mounted on synchronized, counter-rotating, twin ments added without first consulting Eriez, as the motors. -
Page 6: Adjustment Of Force Output
Do not operate unit with any associated equipment For more information on reading tray displacement, in direct contact with any part of the vibratory see Eriez' YouTube channel and look for "How to unit. Cracks can occur in the tray and base. Read Eriez Vibratory Displacement Stickers."... -
Page 7: Lubrication
Lubrication Maintenance Tables Use on the prescribed grease in the vibrator. If a Consult Eriez or the parts list specific to the TMR different grease is used, the warranty will be void. at your location. When contacting Eriez, be sure Too much grease will cause bearings to overheat to have the serial number available. - Page 8 Maintenance Tables Continued Consult Eriez or the parts list specific to the TMR at your location. When contacting Eriez, be sure to have the serial number available. Motor Characteristics Three Phase (900 RPM) Maximum Force Amp Draw Motor Power [Hp}...
-
Page 9: Parts List
As Required Spring Backing Plate As Required Spring Bolt As Required Spring Nut As Required Motor Bolt Motor Washer NOTE When ordering parts, be sure to specify feeder model and style, part number and quantity. Vibrating Feeder & Conveyor: Model TMR... -
Page 10: Troubleshooting
Troubleshooting PROBLEM CAUSE REMEDY Low Deflection Heavy load on pan Reduce load, improve hopper design Pan hitting fixed object Provide clearance Unit out of tune due to damaged springs Replace springs Belt slipping Tighten belt, replace if worn Motor stalling due to incorrect voltage Check motor wiring and voltage and correct Shaft running too slow due to incorrect ratio Check RPM and correct... - Page 11 Vibrating Feeder & Conveyor: Model TMR...
- Page 12 Eriez and Eriez Magnetics are registered trademarks of Eriez Manufacturing Co, Erie, PA ©2015 Eriez Magnetics All Rights Reserved World Authority in Separation Technologies Headquarters: 2200 Asbury Road, Erie, PA 16506-1402 U.S.A. Telephone: 814-835-6000 • 800-345-4946 • Fax: 814-838-4960 • International Fax: 814-833-3348 Web Site: http://www.eriez.com e-mail: eriez@eriez.com...
