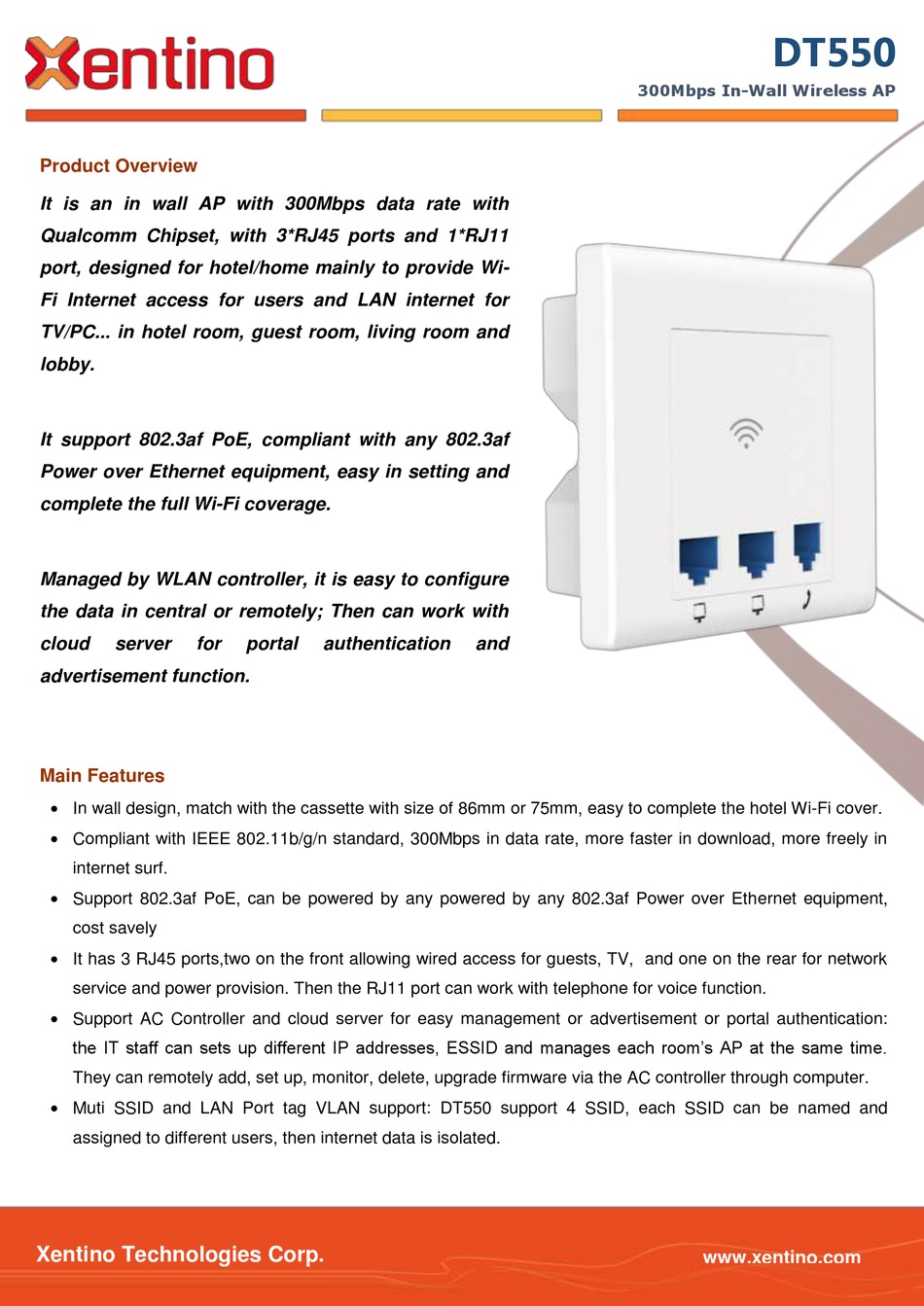

Xentino DT550 Quick Start Manual

Product Overview
It is an in wall AP with 300Mbps data rate with
Qualcomm Chipset, with 3*RJ45 ports and 1*RJ11
port, designed for hotel/home mainly to provide Wi-
Fi Internet access for users and LAN internet for
TV/PC... in hotel room, guest room, living room and
lobby.
It support 802.3af PoE, compliant with any 802.3af
Power over Ethernet equipment, easy in setting and
complete the full Wi-Fi coverage.
Managed by WLAN controller, it is easy to configure
the data in central or remotely; Then can work with
cloud server for
advertisement function.
Main Features
 In wall design, match with the cassette with size of 86mm or 75mm, easy to complete the hotel Wi-Fi cover.
 Compliant with IEEE 802.11b/g/n standard, 300Mbps in data rate, more faster in download, more freely in
internet surf.
 Support 802.3af PoE, can be powered by any powered by any 802.3af Power over Ethernet equipment,
cost savely
 It has 3 RJ45 ports,two on the front allowing wired access for guests, TV, and one on the rear for network
service and power provision. Then the RJ11 port can work with telephone for voice function.
 Support AC Controller and cloud server for easy management or advertisement or portal authentication:
the IT staff can sets up different IP addresses, ESSID and manages each room's AP at the same time.
They can remotely add, set up, monitor, delete, upgrade firmware via the AC controller through computer.
 Muti SSID and LAN Port tag VLAN support: DT550 support 4 SSID, each SSID can be named and
assigned to different users, then internet data is isolated.
[Type text]
Xentino Technologies Corp.
portal authentication
300Mbps In-Wall Wireless AP
and
DT550
www.xentino.com
