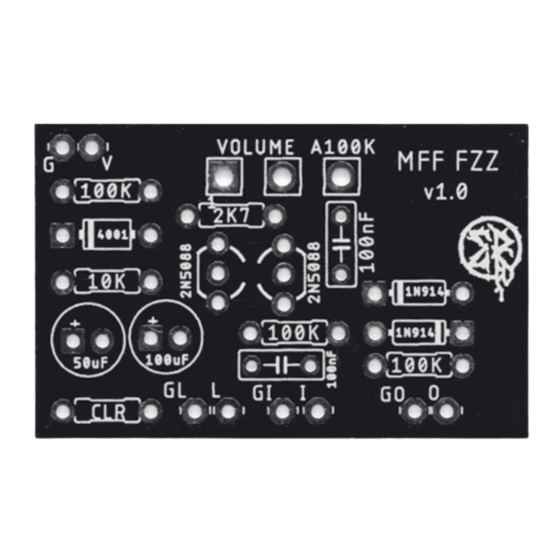

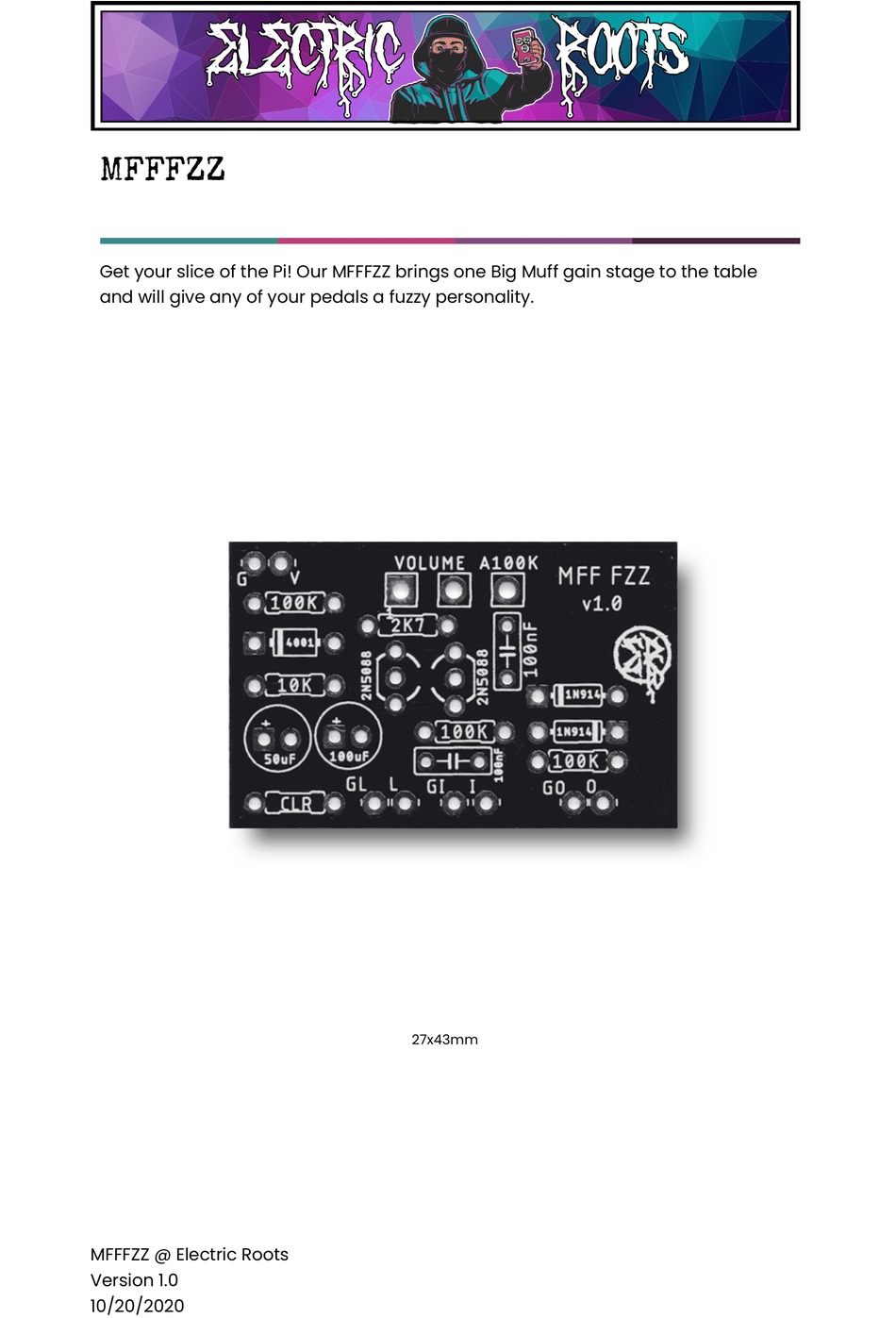

- Page 1 MFFFZZ Get your slice of the Pi! Our MFFFZZ brings one Big Muff gain stage to the table and will give any of your pedals a fuzzy personality. 27x43mm MFFFZZ @ Electric Roots Version 1.0 10/20/2020...
- Page 2 Knobs Controls the output volume Resistors Capacitors Transistors 100k 47uF 2N5088 (elec) 100k 100uF 2N5088 (elec) 100k 100nF 100nF Diodes Potentiometers 1N4001 A100k 1N914 1N914 MFFFZZ @ Electric Roots Version 1.0 10/20/2020...
- Page 3 Suggestions Beware of Counterfeit components, if you want quality products, order a kit , don’t use ceramic capacitors over 1nF they tend to have microphonic characteristics in some setups. Wiring MFFFZZ @ Electric Roots Version 1.0 10/20/2020...
- Page 4 Notes CLR is usually 4k7 – 10k. The value depends on how bright you like your status LED. Mods Try different transistors (2N3904, 2N2222) Try different diodes (D3, D4) MFFFZZ @ Electric Roots Version 1.0 10/20/2020...
