Summary of Contents for GGMgastro LUNA

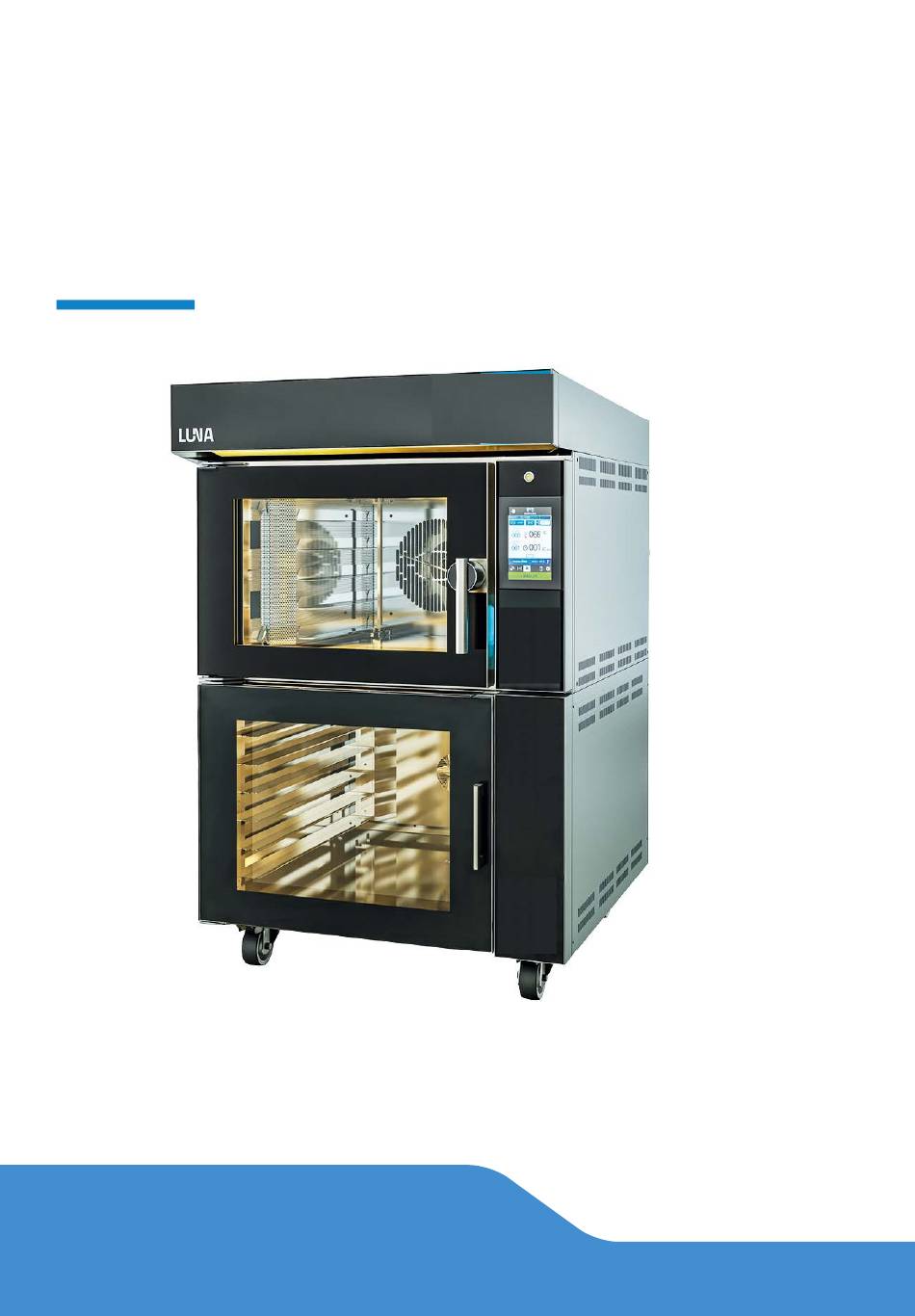

- Page 1 LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
-
Page 4: Table Of Contents
LUNA LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL TABLE OF CONTENTS REAMBLE ..................... 7 Manual ...........................7 Figures ...........................7 Warning Signs ........................8 Guarantee terms ......................9 Manufacturer Company ..................... 10 Product Information ....................10 Information about the Machine................. 11 Manufacturing Design ....................12 Dimensions of Product .................... - Page 5 GENERAL RULES..................49 Glass Replacement ..................... 50 Fermentation Chamber Glass Replacement .............. 51 Door Gasket Replacement ..................52 Lamp Replacement ..................... 53 PERIODIC MAINTENANCE SCHEDULE ............54 FAILURE CAUSES AND APPLICABLE METHODS ..........55 LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
- Page 6 memak.com...
-
Page 7: Reamble
• The mounting instructions must be handed over to the next operators of the device. Figures • All figures in this manual are exemplary. • May vary depending on the current device LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 8: Warning Signs
Warning Signs Move with the direction indicated by the arrows facing This direction upwards. Fragile Handle the package carefully. Packaged in such a way that it does not come into Keep Dry contact with open air. CE mark The machine meets the basic safety requirements. Balance Indicates the point where the machine should be lifted. -
Page 9: Guarantee Terms
In case of non-compliance with the rules specified in the instructions for use. • GGM cannot be held responsible for malfunctions or problems caused by the use of the oven by unauthorized personnel who can’t operate it. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 10: Manufacturer Company
Product Information Manufacturer Company Information Machine type Machine weight Machine model Date of manufacture Serial number CE marking Working voltage Working frequency 10. Working power... -
Page 11: Information About The Machine
Information about the Machine Luna series ovens produced by GGM are electric convection rotary type ovens used for multi- purposes in restaurants, hotels and patisseries. It is compactly designed for narrow usage areas. It is easy to operate and save recipe with touch control panel. -
Page 12: Manufacturing Design
Manufacturing Design In the entire area, when placing manufacturing equipment, gaps should be left in order to allow for inspection and cleaning. When placing the machines, all connection locations must be closed in order not to leave gaps. The floor where the machines are placed must be accessible in terms of cleaning operation or should be completely closed. -
Page 13: Dimensions Of Product
EĞİKLİK EĞİKLİK SİMETRİ ONAY ONAY CIRCULARITY CIRCULARITY Product Technical Information 2.12.2021 2.12.2021 PARALLELISM PARALLELISM ANGULARITY ANGULARITY SYMMETRY Bakery Maya LUNA2-F Total Department room Weight Pan Capacity (40x60) Adet Cooking Area Connection Strength 10.8 LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 14: Start-Up Of The Product
START-UP OF THE PRODUCT • Installation is carried out by the staff of the manufacturer or by the personnel authorized by the manufacturer. • The manufacturer is not responsible for the failures in the installation made by unauthorised personnel. Despite the labor guarantee, the manufacturer is not responsible for the failures during the installation by unauthorised personnel. -
Page 15: Load Structure
In order not to cause any accidents and injuries; all operators must stand at a safe distance while the machine is being lifted. • When removing the machine, care should be taken not to shake the system. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 16: Forklift Usage
Forklift Usage • Place forklift forks at the bottom of the pallet and make sure that the fork is at least 20 cm from the opposite side. • Use a forklift with sufficient lifting capacity and fork length. • Ensure slow transport and safe transport. •... -
Page 17: Rules Regarding Stocking The Machine
If the machine is shipped unassembled or semi-assembled; assembly operation must be carried out by personnel authorized by the manufacturer. NOTE: The machine is taken to the first scale. (Fig. 6) (Figure 6) LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... - Page 18 1. If no layout of the ovens has been made in advance, the oven is placed appropriately. IMPORTANT: The distance between the oven and wall should be at least 500 mm (half a meter). (Figure 7) (Figure 7) 2. In case that more than one oven will be placed, it should be examined. (Fig. 8) (Figure 8)
-
Page 19: Clean Water Treatment
Clean water hose Clamp (Figure 9) The clean water treatment connection type (Figure 9) should be appropriate. Fermentation Cabinet Connection Water Connection • The fermentation cabinetplumbing connection (Fig. 10) must be suitable (Figure 10) LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 20: Electrical Connection Rules
Electrical Connection Rules • The installation of the electrical connection of the machine is carried out in accordance with the applicable regulations and is the responsibility of the customer. • It is the customer’s responsibility to protect electrical connections and circuits from the power supply source. -
Page 21: Required Rules For Correct Use Of The Machine
For detailed information about the cleaning of the control panel, please use the information provided in the “Maintenance and Cleaning” section. • The machine should not be used outside of its intended use LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 22: Touch Control Panel Signals
Thanks to the “Program” menu, a weekly program can be made and the oven can automatically preheat before you arrive. • Thanks to the program interface, the Fermentation cabinet Oven and Luna Oven control can be easily provided via the same panel. •... -
Page 23: Manual Cooking
However, changing the values on the screen is not allowed anymore at this time. BBecause these values are special values of the recipe, they can only be changed by the setting ‘edit recipe’. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... - Page 24 STEP BUTTON EXPLANATION When the oven starts, a manual cooking page appears on the screen. As soon as the manual display is turned on, the MANUAL COOKING preheating is activated. The oven starts to heat up to the temperature set value on the screen. Controls that the fan and resistances are working while the oven is running.
- Page 25 If cooking has not yet been START started, it is restarted. If it is started, it will be stopped, in order to continue from where it left. STOP It is used to stop the cooking process. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
-
Page 26: Fermentation Chamber Interface Description
Fermentation Chamber Interface Description SET POINT SET POINT TIME TIME SET POINT SET POINT START STOP (Figure 2) The fermentation chamber screen is the screen that performs the fermentation process by entering the temperature and humidity set values. At the top, the temperature set value of the oven and the active temperature value are indicated. - Page 27 When the button is off, humidification is disabled. It is the button that starts the fermentation process START according to the entered set values. STOP It is the button that stops the fermentation process. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
-
Page 28: Recipe Screen
Recipe Screen (Figure 3) “RECIPE” is the screen that lists recipes saved on the Add recipe screen for cooking set values. Recipes can be accessed here and the recipe can be deleted or the set values can be changed by clicking edit. After selecting the recipe, clicking on the tick( )button at the bottom of the screen will display the set values of the relevant recipe and the cooking screen. - Page 29 The back button is used to return to the main screen (manual cooking screen) from the recipe screen. It is the button that shows the time. Displays the data of the instant clock for information purposes. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
-
Page 30: Add Recipe Screen
Add Recipe Screen Recipe Name (Figure 4) The Add recipe screen is the screen that allows new recipes to be saved and existing recipes to be edited by entering cooking set values. It consists of 4 separate set value. These are the ones that are going to temperature, time, steam and throttle values. - Page 31 The recipe whose set values are entered with the confirmation button is saved in the memory. The back button is used to return to the recipe list screen. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
-
Page 32: Language Option
Language Option When this button is pressed on the manual cooking screen ( ) a screen like the following will appear. Ait enables you to use the oven control panel in any language. LANGUAGES (Figure 5) -
Page 33: Failures Causes
Phase sequence failure! Check it out! SET POINT TIME STOP (Figure 6) This notice indicates that the electrical connection of the machine is inverse. The directions of the phase in the main supply fuse must be changed. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 34: Phase Thermal Failure
Phase Thermal Failure MANUAL COOKING Fan thermal failure! Check it! SET POINT TIME STOP (Figure 7) This notice assigns engine protection term to protect the engine at the time of load and failure of the engine. The fault in the engine must be detected and the fault must be fixed... -
Page 35: Fuse Failure
This notice of failure gives a warning when the phase in the main feed is not coming properly at the main supply. In order to remove this failure, the phase in the main supply must be checked. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 36: Settings Screen
Settings Screen Settings > User Screen The Settings Screen is the screen where the parameters related to the oven are saved. This screen is divided into 6 tabs. Under the User Screen there are general settings of the user. USER OVEN COOKING CAPACITY... - Page 37 Cooking ready signal is the field that allows us to set the duration of the signal WARNING TIME BEFORE COOKING (SEC): that will be given when the preheating is completed. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
-
Page 38: Settings > Oven Display
Settings > Oven Display There are parameters related to the operation of the oven under the Settings > Oven table. USER OVEN COOKING CAPACITY ASPIRATOR FERMENTATION DOOR CLOSE FAN DELAY (SEC): HEAT CONTROL LOWER TAPE : MAXIMUM TEMPERATURE: MAXIMUM STEAM: SERVICE SETTINGS (Figure 10) STEP... -
Page 39: Settings > Cooking Screen
The time to turn to the right indicates how many RIGHT TURN TIME (SEC): seconds the baking tray will turn to the left. The waiting time indicates how many seconds it will wait when changing direction during periodic WAITING TIME (SEC): rotation. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 40: Settings > Power Screen
Settings > Power Screen Under the Settings > Power tab, there are parameters related to the operation of the oven during cooking. USER OVEN COOKING CAPACITY ASPIRATOR FERMENTATION LIGHTING OFF TIME (SEC): (Figure 12) STEP BUTTON EXPLANATION The light of the screen is turned off after the time specified on the other hand to save power. -
Page 41: Settings > Aspirator Screen
The extractor fan setting is used to activate the DOOR CLOSE FAN DELAY (SEC): extractor fan. Aspirator fan duration indicates how many seconds the aspirator fan will operate when the HEAT CONTROL LOWER TAPE : oven door is opened. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 42: Settings > Fermentation Screen
Settings > Fermentation Screen Under Settings > Fermentation tab, there are parameters related to the operation of the yeast chamber. USER OVEN COOKING CAPACITY ASPIRATOR FERMENTATION FERMENTING TEMPERATURE: FERMENTING MOISTURE (%): (Figure 14) STEP BUTTON EXPLANATION Fermentation heat refers to the value that will come in place when the temperature set value FERMENTING TEMPERATURE: on the screen is entered into the fermentation... -
Page 43: Safety
320 °C. ((The connector is connected to the T and T1 terminals on the front panel). (Location: bottom on the f3rd loor, next to the evacuation of the drain inside the floor). LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 44: Personnel Protective Equipment
PERSONNEL PROTECTIVE EQUIPMENT It is mandatory for the operator to wear heat resistant gloves when removing the trays from the oven and handling them when they are hot. The operator should not wear loose clothes or ties. It is also mandatory to wear a hair protector (bonnet). -
Page 45: General Cleaning
Check and clean the steam Wipe the steam generators with a clean generators. damp cloth. EVERY 6 MONTHS Chimney cleaning should be done by The chimney must be cleaned. authorized personnel. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 46: Tray Rack Cleaning
Tray Rack Cleaning • The oven door opens. (Figure 11) • The bolts on the back are removed with a screwdriver. (Figure 12 and Figure 13) • The tray is removed and cleaned (Figure 14). (Figure 11) (Figure 12) - Page 47 (Figure 13) (Figure 14) LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
-
Page 48: Maintenance And Adjustment
As mentioned above, it is very important to have adequate ventilation on all LUNA furnaces when replacing electrical parts. Temperature should always be checked. If the temperature exceeds 50 °C (120’ °F), cooling by means of a fan is definitely necessary. -
Page 49: Special Maintenance
• Before starting the machine after any maintenance, the operator must: • Check that there are no foreign objects in the machine. • Take the necessary safety precautions to start the machine safely. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 50: Glass Replacement
Glass Replacement • The oven door opens. (Figure 15) • 4 bolts inside the door handle are removed. • The door handle is removed. (Figure 16) • 4 glass screws on the glass are unscrewed. • The glass is carefully removed. (Figure 15) (Figure 16) -
Page 51: Fermentation Chamber Glass Replacement
The glass screws are unscrewed, the glass is supported with one hand then is removed. (Figure 19) HANDLE HANDLE BOLT (Figure 17) GLASS FIXING SHEET BOLD GLASS SCREW WINDSCREEN (Figure 18) (Figure 19) LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 52: Door Gasket Replacement
Door Gasket Replacement • It is removed from the gasket channel by hanging it from the corner as seen in the figure. (Figure 20) (Figure 20) -
Page 53: Lamp Replacement
The socket is removed from the back of the lamp and the lamp is removed from the outside to the inside. • When installing a new one, the procedure is carried out by inserting it from the inside. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... -
Page 54: Periodic Maintenance Schedule
PERIODIC MAINTENANCE SCHEDULE FREQUENCY OPERATION METHOD Check that the lights and sound Check the efficiency of control, devices are not damaged. Replace if video and audio signal devices. necessary. Check the water connection Check water connections and leaks. pipes. Repair immediately if necessary. EVERY WEEK Check the holes of the steam Check the emergency stop and... -
Page 55: Failure Causes And Applicable Methods
The solenoid valve may not be Replace the solenoid valve. working properly. The steam outlet valve may be open. Close the steam outlet valve. LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL... - Page 56 Adjust the cooking temperature Cooking temperature and time may and duration according to the not be suitable for the product. product. The slot for hot air conduction may If the product Place the slots properly. not be placed properly. is not cooked properly from Check the cooked products.
- Page 57 LUNA CONVECTION OVEN INSTALLATION AND USER MANUAL...
