Summary of Contents for Ekselans 280047
- Page 1 USER MANUAL EK HOTEL TV BASIC 280047 IPTV multicast and web TV processing server for hotels. CM SEK ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
EK HOTEL TV BASIC USER MANUAL TABLE OF CONTENTS Introduction..............................................4 Description: ............................................4 Key features............................................4 Contents: ..............................................4 Interfaces, wiring and access to the equipment............................5 Interfaces: ..............................................5 Wiring................................................. 5 Access to the equipment ......................................6 Equipment configuration ...................................... - Page 3 EK HOTEL TV BASIC USER MANUAL Create Source..........................................24 Delete Source..........................................24 Create Service..........................................25 Delete Service..........................................25 Order Services..........................................26 Edit Categories........................................... 26 Products..............................................27 Create product........................................... 28 Delete Product........................................... 28 Set Top Boxes.
-
Page 4: Introduction
EK HOTEL TV BASIC USER MANUAL Introduction. Description: The EK HOTEL TV BASIC works as a middleware which enables the aggregation of audio and video services transported in multicast and/or WebTV for its distribution and reception in IPTV devices (STB IP BASIC). -
Page 5: Interfaces, Wiring And Access To The Equipment

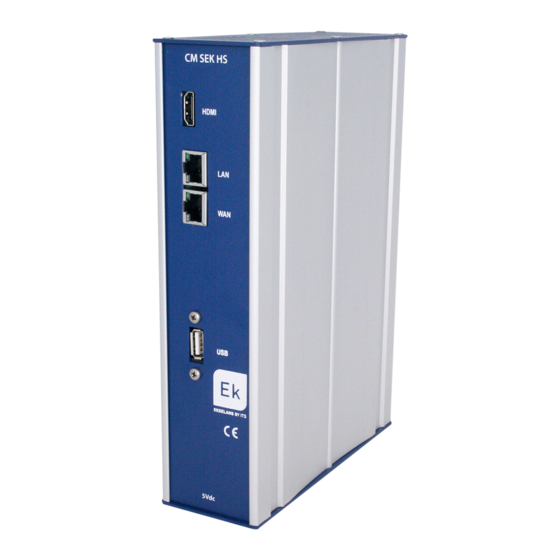

EK HOTEL TV BASIC USER MANUAL Interfaces, wiring and access to the equipment. Interfaces: HDMI port: No use for the user. Only usable for SAT. LAN port: Not to be used for EK HOTEL. WAN port: WAN port to be connected to the internet. -
Page 6: Access To The Equipment
EK HOTEL TV BASIC USER MANUAL Access to the equipment Connect to the EK HOTEL using a network cable to the WAN port. Configure the network adapter of the PC with a static IP. The EK HOTEL is supplied with a sticker and its IP on the back, generally, 172.16.5.209. -
Page 7: Equipment Configuration
EK HOTEL TV BASIC USER MANUAL Equipment configuration Once the equipment has been accessed, an IP must be configured within our network in its WAN link. This will facilitate our access to the server locally and will enable it to be updated remotely automatically. - Page 8 EK HOTEL TV BASIC USER MANUAL Network configuration: Displays the status of the current network configuration. To configure the equipment in our network, follow the steps below: Go to “Edit Network Settings”. Then save the configuration. The configuration in the image is a simple example, which is why it must not be used if the same configuration is not shared.
- Page 9 EK HOTEL TV BASIC USER MANUAL Accept request. Reset the PC back in our network with DHCP or as it was configured, then it is connected using a LAN cable to the NETWORK. Connect the EK HOTEL with its WAN to the network. Now it should be possible able to access the EK HOTEL internally through our LAN via the IP which was configured in step 2.
-
Page 10: Access To The Interface And Overview
EK HOTEL TV BASIC USER MANUAL Access to the interface and overview Access to the configuration interface After having the system correctly configured and running, the equipment can be accessed through the IP which is configured, but this time completed in /cpanel. For example, 172.16.5.209/cpanel. User: admin Password: Admin123. -
Page 11: Main Information
EK HOTEL TV BASIC USER MANUAL Main information. This is the information and menus which will be kept, even if menus are changed. This is set at the upper section. Minimize tab: Enables minimizing the menu on the left side. Mem: Displays the current memory being used in the system. -
Page 12: Administration
EK HOTEL TV BASIC USER MANUAL Administration. The network configuration of the device and the users who can access same, as well as their permissions, can be changed. Device settings. Clicking on the device settings will display the general information configured for the WAN and LAN network. -
Page 13: Edit Network Configuration
EK HOTEL TV BASIC USER MANUAL Edit Network Configuration. This configuration is already configured when accessing the 9090 port. However, it is possible to reconfigure the network from here. Connection mode. Automatic DHCP: Acquires the IP automatically without having to configure network parameters. -
Page 14: Local Dns Server
EK HOTEL TV BASIC USER MANUAL Local DNS Server. Allows enabling a local DNS to access the equipment through a domain instead of the IP locally. Enable DNS server: Enable the EKHOTEL itself to act as DNS server. Once enabled, it allows the local use of the “Domains”. -
Page 15: Https Configuration
EK HOTEL TV BASIC USER MANUAL Https configuration. Thanks to this, when attempting to connect through the explorer to the equipment, the connection will be a secure connection. Https Disabled: If the Https protocol is not enabled, there is no need to configure anything. Signed certificate: An own key file and certificate file is configured and uploaded. -
Page 16: Login Configuration
EK HOTEL TV BASIC USER MANUAL Login Configuration. Enables to configure a captcha to access the equipment or not. The captcha can be enabled/disabled at login. Click “Save” to apply the configuration. System reboot. Reboots the system. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·... -
Page 17: System Shutdown
EK HOTEL TV BASIC USER MANUAL System shutdown. Enable shutting the device down securely. It is always advisable to switch off the equipment using this button. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 18: Broadcasters
EK HOTEL TV BASIC USER MANUAL Broadcasters. These are the IPs through which the configured channels are broadcast. For a local network, the same IP that the EK HOTEL has must be configured. This same IP is also the one configured for the different STB-IP/STB-IP BASIC as the channel server. -
Page 19: Create Broadcaster
EK HOTEL TV BASIC USER MANUAL Create broadcaster. Creation of broadcasters according to requirements: Broadcaster name. Broadcaster URL: Address through which the services are distributed. EPG: Facilitates enabling the electronic channel guide. Once finished, click on “Create Broadcaster” so that it is created correctly. Delete Broadcaster. -
Page 20: Users
EK HOTEL TV BASIC USER MANUAL Users. From the following menu the created users can be seen. The user privileges can also be managed, as well as their creation or deletion. The users can be selected one by one or all users at the same time so as to delete these. -
Page 21: Create User
EK HOTEL TV BASIC USER MANUAL Create User. Creation of users required to manage the system. User: The name and password are configured. Roles: These are the permissions that the user has. Broadcaster: Permission on which broadcaster can act. Once finished, click on “Create User” so that it is created correctly. Delete User. -
Page 22: Broadcaster
EK HOTEL TV BASIC USER MANUAL Broadcaster. In this section all services and channels will be configured. Main configuration. This is the main configuration, the first broadcaster to be configured in the equipment. The “Logo” and the color that will appear on the STBs can be changed. Platform Name: Name which will be assigned to our EK HOTEL platform. -
Page 23: Sources/Services
EK HOTEL TV BASIC USER MANUAL Sources/Services. From this menu the different “Sources” (the video sources that are to be played back on the STBs) and “Services” (videos that are played on the STBs) can be seen. Sources: These are the video sources (the URL address of the videos) that are to be played back on the STBs. -
Page 24: Create Source
EK HOTEL TV BASIC USER MANUAL Create Source. Name: Name of the source to be created. External URL: Address of the source, it can be “udp://234…” type or https://vcngfc1.tel... Once finished, click on “Create Source”. Delete Source. The selected sources can be deleted. ITS Partner O.B.S S.L ·... -
Page 25: Create Service
EK HOTEL TV BASIC USER MANUAL Create Service. Name: Name of the service that is to be created. Source: Source to which the service is linked. It is the Video that will be seen in the STB when selecting that channel. Category: A category can be assigned to the previously created service if so wished. -
Page 26: Order Services
EK HOTEL TV BASIC USER MANUAL Order Services. The services can be organized as so desired. This will affect the order in which these will be displayed in the STBs. Thanks to the up arrows it can be moved up one or several positions and with the down arrow it can be moved down positions. -
Page 27: Products
EK HOTEL TV BASIC USER MANUAL Products. These are the groups of channels which are created to link these to the STBs. Each STB will be able to display this group of configured channels, according to requirements. If a channel group expires, it will stop broadcasting and will appear in red. The STBs which have that feature configured will not be able to display this group of services. -
Page 28: Create Product
EK HOTEL TV BASIC USER MANUAL Create product. Enables creating the groups. Name: Name of the product that is to be created. Services which can be added: List of services which can be added. Arrows to add (right) or remove (left) services: Arrows to add or remove services to the product. Services added to the product: Services added to the product. -
Page 29: Set Top Boxes
EK HOTEL TV BASIC USER MANUAL Set Top Boxes. From this menu the STBs which have been have added, as well as add or delete these, can be managed. Simplified View This is the simplest view with which the status of the STBs can be seen. Filters: Filters can be applied to select only the devices that are to be searched. - Page 30 EK HOTEL TV BASIC USER MANUAL Extended View In the extended view there are more options available and similarly at a glance there is more information as regards the different STBs. Filters: Filters can be applied to select only the devices that to be searched. Views: Select “Simplified View”...
-
Page 31: Generate New Set Top Boxes
EK HOTEL TV BASIC USER MANUAL Generate new Set Top Boxes. New receivers can be generated. Number of Receivers: Number of receivers generated. Description: Description of the equipment. Group: Select the group to which the equipment belongs. Products which can be added: Products which can be added to the STBs with the arrows on the right. -
Page 32: Delete Set Top Boxes
EK HOTEL TV BASIC USER MANUAL Delete Set Top Boxes. Enables deleting the selected STBs. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus... -
Page 33: Import Macs List
EK HOTEL TV BASIC USER MANUAL Import Macs List. The STBs can be added by importing directly from a CSV file. Select file: Select the file in CSV format to add the STBs. It must be created with one MAC address per line. -
Page 34: Organize Set Top Boxes
EK HOTEL TV BASIC USER MANUAL Organize Set Top Boxes. The STBs can be organized as seen fit. Current order of the STBs. Arrows to move the selected STB up or down. When finished click on “Save” to apply the configuration. ITS Partner O.B.S S.L ·... -
Page 35: Download List Of Set Top Boxes
EK HOTEL TV BASIC USER MANUAL Download list of Set Top Boxes. Enables to download a file with the data requested and the selected STBs. Click on “Generate file” to generate the file and save it on one’s PC. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·... -
Page 36: Edit Subscription Types
EK HOTEL TV BASIC USER MANUAL Edit Subscription types. From this menu the subscriptions can be created/deleted and modified. Add/delete: Enables adding or deleting Subscriptions Add/delete: Enables adding or deleting Subscriptions Add/delete: Enables adding or deleting Subscriptions. Edit Subscriptions: The created Subscriptions can be edited. List of Subscriptions: List of the subscriptions created. -
Page 37: Edit Groups
EK HOTEL TV BASIC USER MANUAL Edit Groups. From this menu groups can be created/deleted or modified. Add/delete: This enables to add or delete groups. Edit groups: The created groups can be edited. List of groups: List of the subscriptions created. When finished click on “ok”. -
Page 38: Upload Firmware
EK HOTEL TV BASIC USER MANUAL Upload Firmware. Enables loading a FW in the STBs when selecting these. Send a remote action. Different actions can be sent directly to the selected STBs. To perform the desired action, click on “Send a remote action”. ITS Partner O.B.S S.L ·... -
Page 39: Users
EK HOTEL TV BASIC USER MANUAL Users. Different users can be managed/created. User information. Edit button: The created users can be edited. Additional information: Information of the selected user which is not shown in point 1. Create User. Users can be created. Finally click on “Create User”... -
Page 40: Delete User
EK HOTEL TV BASIC USER MANUAL Delete User. The selected users can be deleted. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus... -
Page 41: Statistics
EK HOTEL TV BASIC USER MANUAL Statistics. A history of use and connections of the services can be visualized. Historical Graph. Color of the services which are displayed in the historical graph. ZOOM: A zoom in time to adjust the graph as required can be adjusted. Zoom Reset. -
Page 42: Generate Statistics Report
EK HOTEL TV BASIC USER MANUAL Generate Statistics report. A PDF format file can be generated with the selected date range. Finally click on “Generate” if it is to be downloaded the PDF file, if so desired. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·... -
Page 43: Faqs
EK HOTEL TV BASIC USER MANUAL FAQS. • There is no access to the EK HOTEL: It is connected directly to the WAN port. Then verify that it is within the IP range of the equipment, by default it comes with 172.16.5.209 mask 255.255.255.0. A ping attempt is made to that IP if it responds the IP 172.16.5.209:9090 should be able to be accessed.
