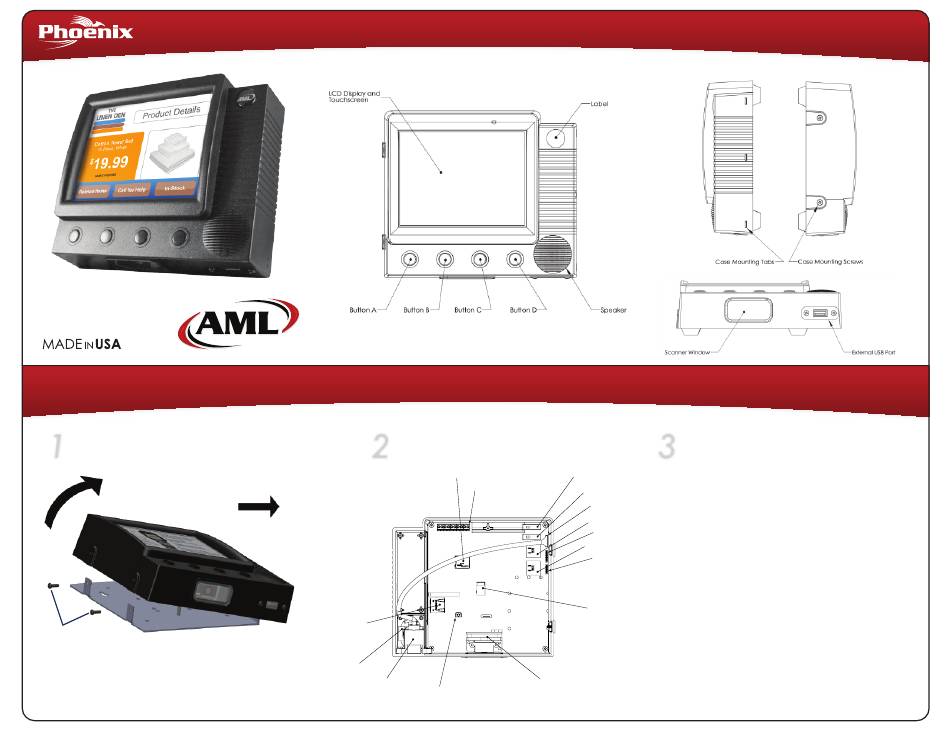

Mini-Kiosk Quick-Start Guide
800.648.4452
www.amltd.com
05152015
Getting Started
1
Open Outer Case
2)
Rotate Up
Slightly
1)
Remove
Screws
Connections to the Phoenix unit are
housed internally to prevent vandalism
and to secure devices.
Wiring Installation
2
Internal Connections
3)
Slide Off
Tabs
Etnernet (POE)
Speaker
External USB
Front View
Getting Started
Radio/USB
Micro SD Card
I/O
Internal USB
External USB
Debug/RS-232
USB Slave
RS-232
HID
+12V DC
Scan Engine
Optional 24-48V DC
Side and Bottom View
Getting Started
3
Power Requirements
The Phoenix can utilize three power
sources: external DC power supply,
Power-over-Ethernet, and an optional
internal backup battery.
External DC Power Supply
WARNING: Using power supplies that are not supplied
by AML for use with the Phoenix unit can cause
damage to the unit and will void all warranties.
Internal Power-over-Ethernet Supply
The Phoenix contains an 802.3af compatible power
supply. The unit can be powered via category 5
networking cable when used with an 802.3af
compatible power injector. Both network traffic and
power can be sent via the same category 5 wire.
