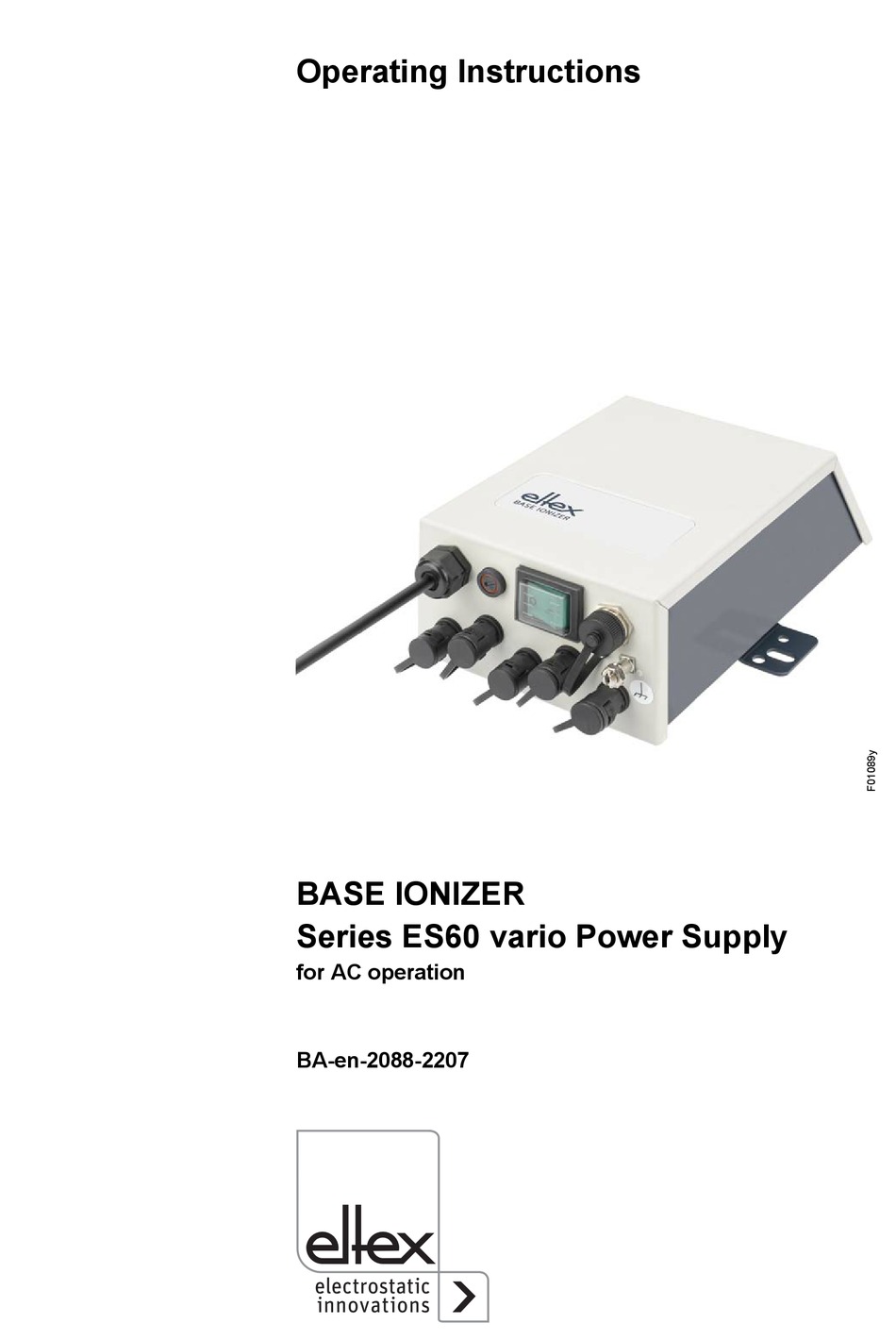

- Page 1 Operating Instructions BASE IONIZER Series ES60 vario Power Supply for AC operation BA-en-2088-2207...
- Page 2 BA-en-2088-2207_ES60...
-
Page 3: Table Of Contents
List of contents Outline of appliance ........5 Safety . - Page 4 Dear Customer, The ES60 high voltage power supplies are power supply units for AC operation discharging bars. The discharging bars and the ES60 power supply are used mainly in cases where disruptive static charges impair production processes and need to be eliminated. The ES60 power supply features the following characteristics: •...
-
Page 5: Outline Of Appliance
1. Outline of appliance Fig. 1: ES60 high voltage power supply for AC operation 1 Power supply lead 2 High voltage terminals (5 pcs) 3 Fuse (type: see name plate) 4 ON/OFF switch (ON = illuminated) 5 Plug for functional signal (only for functional monitoring, optional) 6 Grounding terminal 7 Mounting bracket BA-en-2088-2207_ES60... -
Page 6: Safety
2.1 Proper use The ES60 Power Supplies may be operated only in connection with the appropriate Eltex discharging bars for AC operation as well as the ion blower nozzles, ion blower pistols and distributors, , each with a perma- nently connected high voltage cable. - Page 7 • If electrically conductive substrates or substrates coated with conduc- tive material (e.g. metal foil or metal composites) are used, the mains supply must be interrupted (see chapter 4.2 "Operating mode with con- ductive substrats”, page 13). • Before carrying out any work involving the units, the machine which has the units fitted must not be in operation (see chapter 5 "Maintenance”, page...
-
Page 8: Technical Advance
The manufacturer reserves the right to make changes to the technical specifications without prior notice in order to adapt the units to state-of- the-art engineering. Eltex will provide the latest information on any changes or modifications in the operating instructions on request. -
Page 9: Installation And Assembly
3. Installation and assembly 3.1 Assembling the power supply The power supply is designed for wall mounting. Attach using the brackets provided (installation dimensions, see Fig. 2). The operating elements of the power supply and the terminals must be freely accessible at all times and the display LEDs must be visible. -
Page 10: Ground Connection
3.3 Discharging bars, ion blower nozzles, ion blower pistols and distributors suitable for connection Eltex discharging bars for AC operation as well as the ion blower nozzles, ion blower pistols and distributors can be connected to the ES60 power supplies, each with a permanently connected high voltage cable. -
Page 11: Maximum Active Bar Length And Length Of The High Voltage Cable
3.5 Maximum active bar length and length of the high voltage cable Both the lengths of the high voltage cable and of the active bars are limited. The shielded high voltage cables cause a capacitive load on the transformer inside the power supply. The maximum loading capacity is a result of the function of the total active bar length and the total length of all high voltage cables. -
Page 12: Connecting The Supply Voltage
3.6 Connecting the supply voltage Connect the supply voltage via the power supply lead (1, Fig. 1) using an earthing pin plug (depending on cable version). To ensure that no voltage is supplied to the bars when the material web is at rest, enabling the supply voltage to the power supply via machine con- tact is recommended. -
Page 13: Operation
4. Operation 4.1 Startup Before starting up the power supply the user must make sure that the power supply and the bars have been installed and assembled correctly. The supply voltage can then be switched on. Use the toggle switch (4, Fig. 1) to switch on the power supply. In the ON position the switch lights up green. -
Page 14: Maintenance
5. Maintenance Warning! Electric shock hazard! • Switch the power supply off and disconnect the supply voltage before carrying out any maintenance or repair work. • The machine which has the units fitted must not be in operation. • Any work involving the units must be carried out by qualified electrici- ans. -
Page 15: Trouble-Shooting
• Any work involving the units must be carried out by qualified electrici- ans. Fault Cause Measure • Inform Eltex Service. No high voltage • Lamp in mains power switch lit: transformer defective. -
Page 16: Technical Specifications Es60
7. Technical specifications ES60 Input Supply voltage 115 or 230 V AC 50/60 Hz Power input max. 80 VA Fuse (primary circuit) see name plate Recommended Tripping Characteristic 2A/K according to protection DIN EN 60947-2 Mains power cable depending on the unit variant, either with groun- ding contact plug (approx. -
Page 17: Dimensions
8. Dimensions Fig. 7: Dimensions ES60 Power Supply BA-en-2088-2207_ES60... -
Page 18: Spare Parts And Accessories
9. Spare parts and accessories Article Article No. High voltage distributor discharging , 5 terminals (1 high voltage cable, 4 outputs) specify plug and cable length ESV61/_ _ High voltage distributor discharging, 2 terminals (1 high voltage cable, 2 outputs) (specify plug and cable length) ESVY61/_ _ Extenxion cable... - Page 20 Eltex offices and agencies The addresses of all Eltex agencies can be found on our website at www.eltex.de Eltex-Elektrostatik-Gesellschaft mbH Blauenstraße 67-69 79576 Weil am Rhein | Germany Phone +49 (0) 7621 7905-422 eMail info@eltex.de Internet www.eltex.de...
