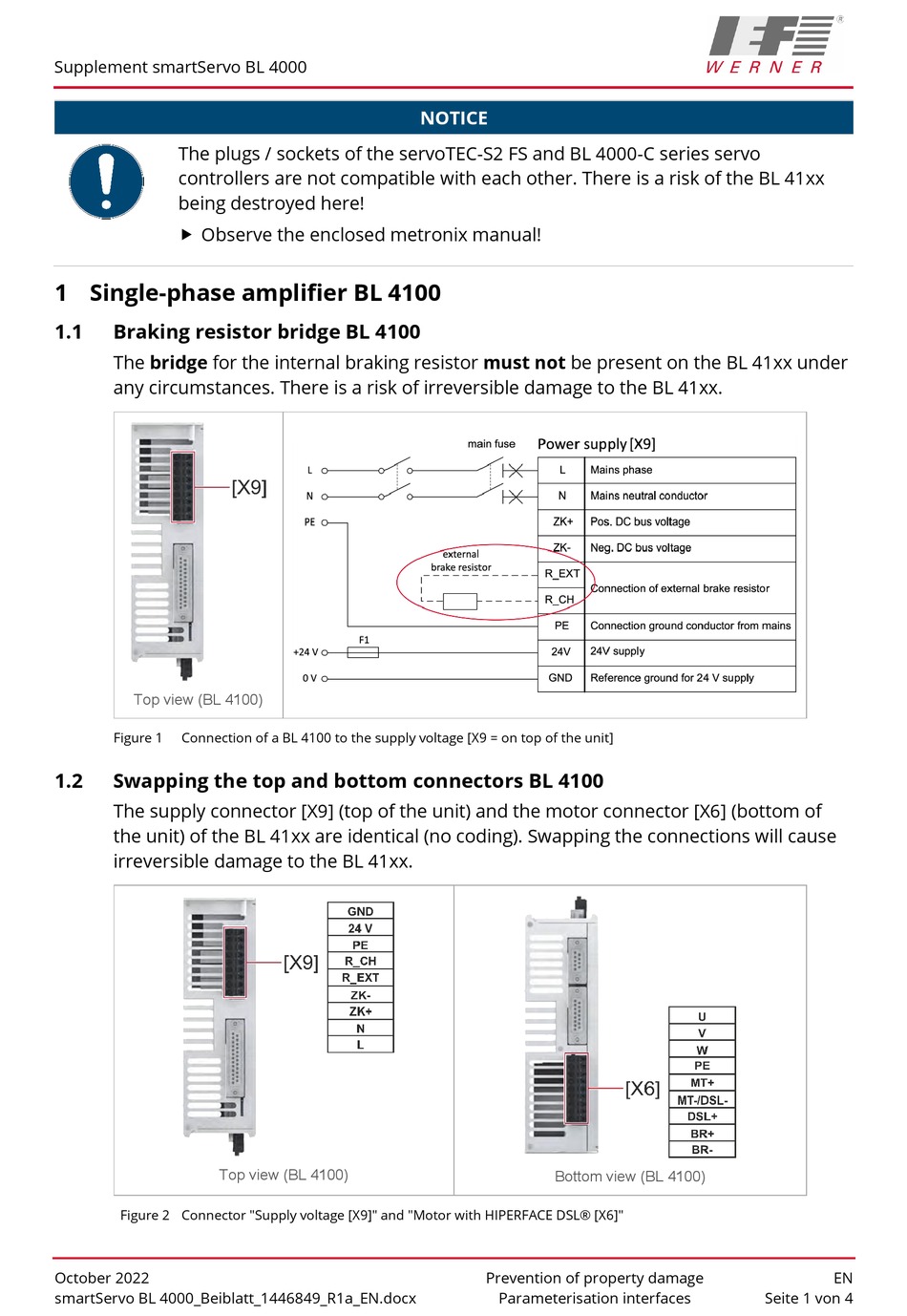

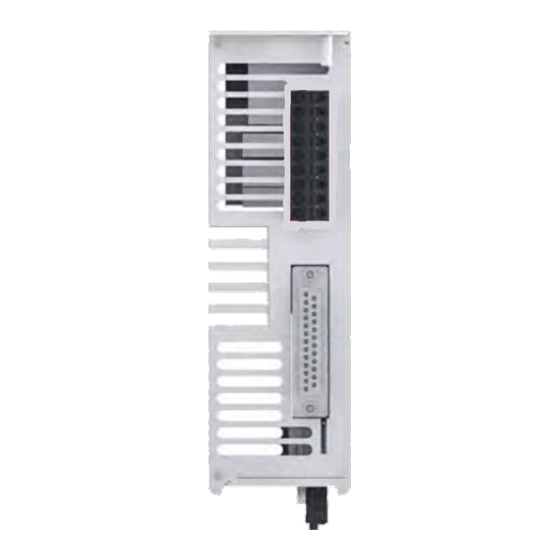

Supplement smartServo BL 4000
The plugs / sockets of the servoTEC-S2 FS and BL 4000-C series servo
controllers are not compatible with each other. There is a risk of the BL 41xx
being destroyed here!
 Observe the enclosed metronix manual!

1 Single-phase amplifier BL 4100

1.1

Braking resistor bridge BL 4100

The bridge for the internal braking resistor must not be present on the BL 41xx under
any circumstances. There is a risk of irreversible damage to the BL 41xx.
Top view (BL 4100)
Figure 1
Connection of a BL 4100 to the supply voltage [X9 = on top of the unit]
1.2

Swapping the top and bottom connectors BL 4100

The supply connector [X9] (top of the unit) and the motor connector [X6] (bottom of
the unit) of the BL 41xx are identical (no coding). Swapping the connections will cause
irreversible damage to the BL 41xx.
Top view (BL 4100)
Figure 2 Connector "Supply voltage [X9]" and "Motor with HIPERFACE DSL® [X6]"
October 2022
smartServo BL 4000_Beiblatt_1446849_R1a_EN.docx
NOTICE
Bottom view (BL 4100)
Prevention of property damage
EN
Seite 1 von 4
