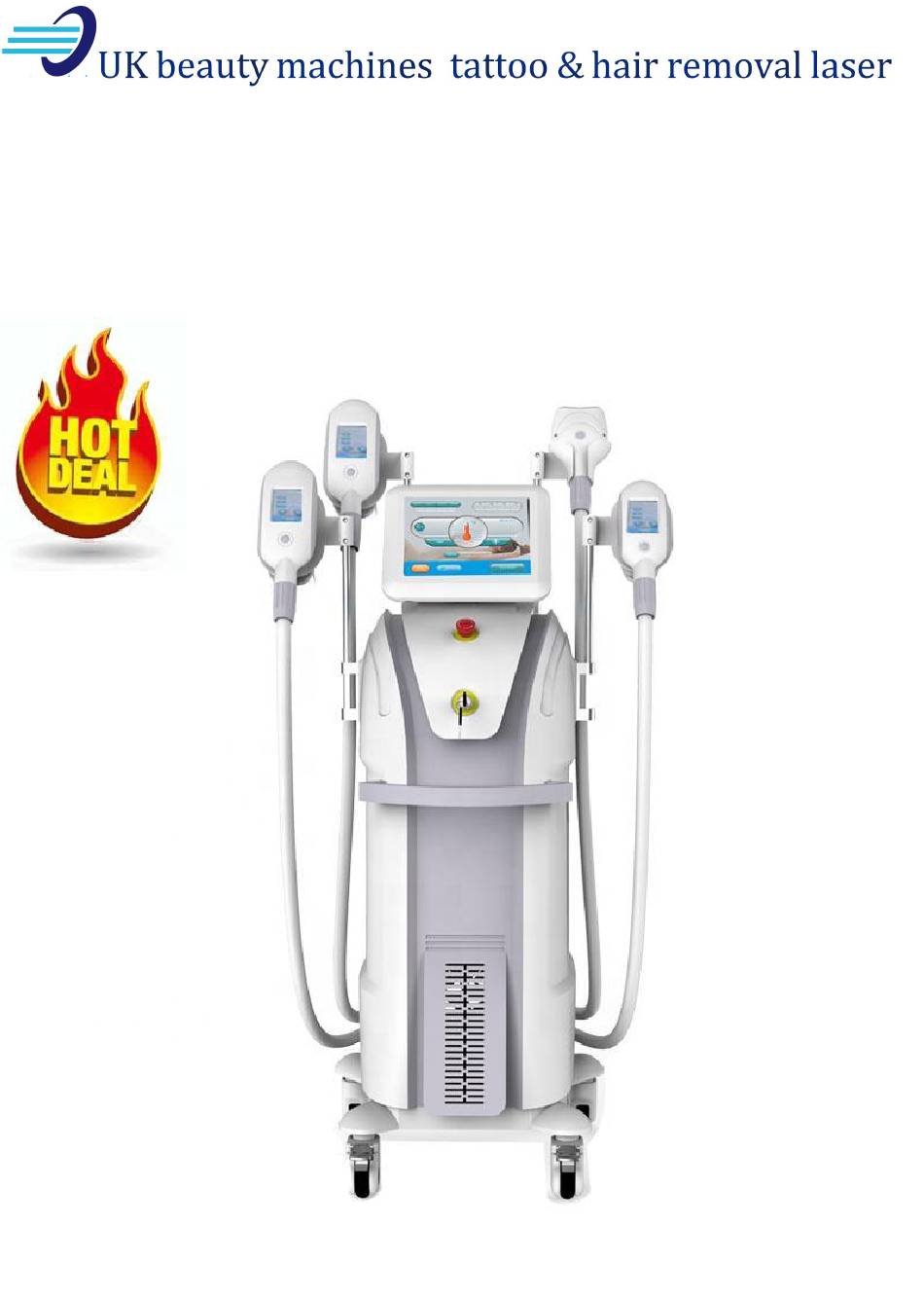

- Page 1 User Manual Cryolipolysis HF008...
-
Page 2: Precautions For Use
Precautions for use Foreword 1.The size of suction is adjustable. It is perfect when customer feels suction with no pain. Suggested cooling temperature is 0~3°, best effect is -3°, best treatment time is 20-30mins. No less than -5°for first-time user. -8~-10°is applicable only to fat thickness higher than 55mm. - Page 3 About fat freezing slimming technology: an innovative machine called "Zeltiq" used in Technology American. A cooling method called "freezing lipolysis" is used to lock, freeze, and eventually break down fat cells. Zeltiq was developed by researchers at Harvard University and Massachusetts General Hospital, and has been in use since a year ago.
- Page 4 fat layer thinning and reduce fat, to achieve reduction of stubborn fat effect without loss of peripheral nerves, blood vessels and skin surface tissue. it stimulates and coordinate with the start and the end of movement of the muscle at the same time, to induce muscle fiber tension and tension, so that the skin back to firm and elastic.
- Page 5 1.5 Product structure and performance Item Parameters Parameters 1.1.1 Power Supply 220V Power 1500VA Heating temperature 20℃~42℃ Cooling temperature -10℃~10℃ Vacuum 10-83Kpa Cold light 570nm 50mw Cooling liquid Pure water Dimension 410mm*397mm*1000mm working temperature 5℃~40℃ Operation interface 10.4" touch screen Accessories Host Machine I set...
- Page 6 Software operate instruction 2 Operation interface 2.1 Interface introduction Use one handle at a time, two handles, or all four at a time, depending on your needs for the treatment area. The button descriptions are as follows: (1) vacuum 1/2/3/4 represents the suction of the handle 1/2/3/4, first select Vacuum 1 Guide and then adjust the "-"...
- Page 7 (4) To prepare for treatment, first spread the membrane on the treatment area (close to the skin, without air bubbles), adjust the treatment parameters of the handle, click "Standby" on the interface, stick the handle tightly on the membrane, and then click the handle button, the handle starts Work. 2.2 Handle operation guide 2.2.1 Cooling upgrade The upgraded handle material is aluminum alloy, and 360°...
- Page 8 the treatment site. Now show every body treatment heads:...
- Page 9 Now show double chin handle: 2.3 The handle has a color touch screen to set treatment parameters. Detection temperature Suction strength Hand treat cooled temperature Treatment time Increase Decrease Temperature/Vacuum/Time Temperature/Vacuum/ Time preparatory work...
- Page 10 Start work button (3.1) After setting the parameters: Temperature/Vacuum/Time; (3.2) Click the standby button: "standby" (3.3) Paste the membrane on the treatment site, place the handle flat on the treatment membrane, and gently press the handle with your hand; (3.4) After operation (2.3), click the work button "start work botton" on the handle, the handle starts to work and sucks the skin;...
- Page 11 Picture 4-2 Picture 4-1 (4.5)Install the treatment head Align in the direction of the arrow as shown below: buckle the treatment head, and then fix the treatment head with the buckle...
- Page 12 3 Application 1)Clean the skin firstly and the skin surface must be dry, otherwise it may cause 3.1 Treatment process frostbite. 2)Place the anti-freeze membrane onto the skin (Must be flattened) 3)Place the treatment head on the skin with anti-freeze membrane (Be sureit is in the middle to prevent the deflection from causing the insufficient of anti- freeze membrane and frostbite the skin), then turn on the switch to ad- just the instrument or adsorption knob on the handle, until the vacuum is suitable for the customer’s vacuum.
- Page 13 be sucked into the handle. 2)It is forbidden to take a hot bath within 24hours after treatment (Cold water is allowed) 3)It is forbidden to have water for a long time within 24hours after treatment 4)Please put the treatment head in the middle of anti-freeze membrane during treatment to prevent the deflection from causing insufficient of antifreeze membrane and frostbite the skin.
- Page 14 Q&A about Cryolipolysis Q 1:What is the process of the freeze fat-dissolving method? A1: Complete the treatment table — Ask and check the physical condition locate the treated area — Paste antifreeze membrane — Begin to treatment — Having a rest after finished, if no discomfort you could leave.
- Page 15 listen to music, or have a rest. Q7: How long the effect will maintain? A7: It depends on personal diet habits and varies with the corporeity. The efficacy after the treatment could maintain at least 1 year in the user of reducing fat layer .The removed fat cells will gradually release the lipids and absorbed by natural metabolism of the body.
- Page 16 Q11: Does the course have a recovery period? A11: The freeze fat dissolving method is non-invasive treatment, both before and after treatment will not affect normal lifestyle, office ladies even can do treatment at noon break. Q12: What is the feeling during the treatment? A12: Using of exact computer program to control the temperature accurately within the safe range.
-
Page 17: Maintenance
Maintenance 5.1 FAQ (Frequently asked questions) 5.1.1 The solution of whole machine with no electricity: 1)Check the emergency stop button, if it bounced, it is open, and press down is closed. 2)Check if the main switch is open, O bulges is open. 3)Check the fuse at the input power if is broken. - Page 18 5)The water in the machine should be replaced 2-3 months (Purified or distilled water). 6)Place the machine in a ventilation and dust-free room (Very important). 7)Any non-professional is prohibited to use of machine except operator.
