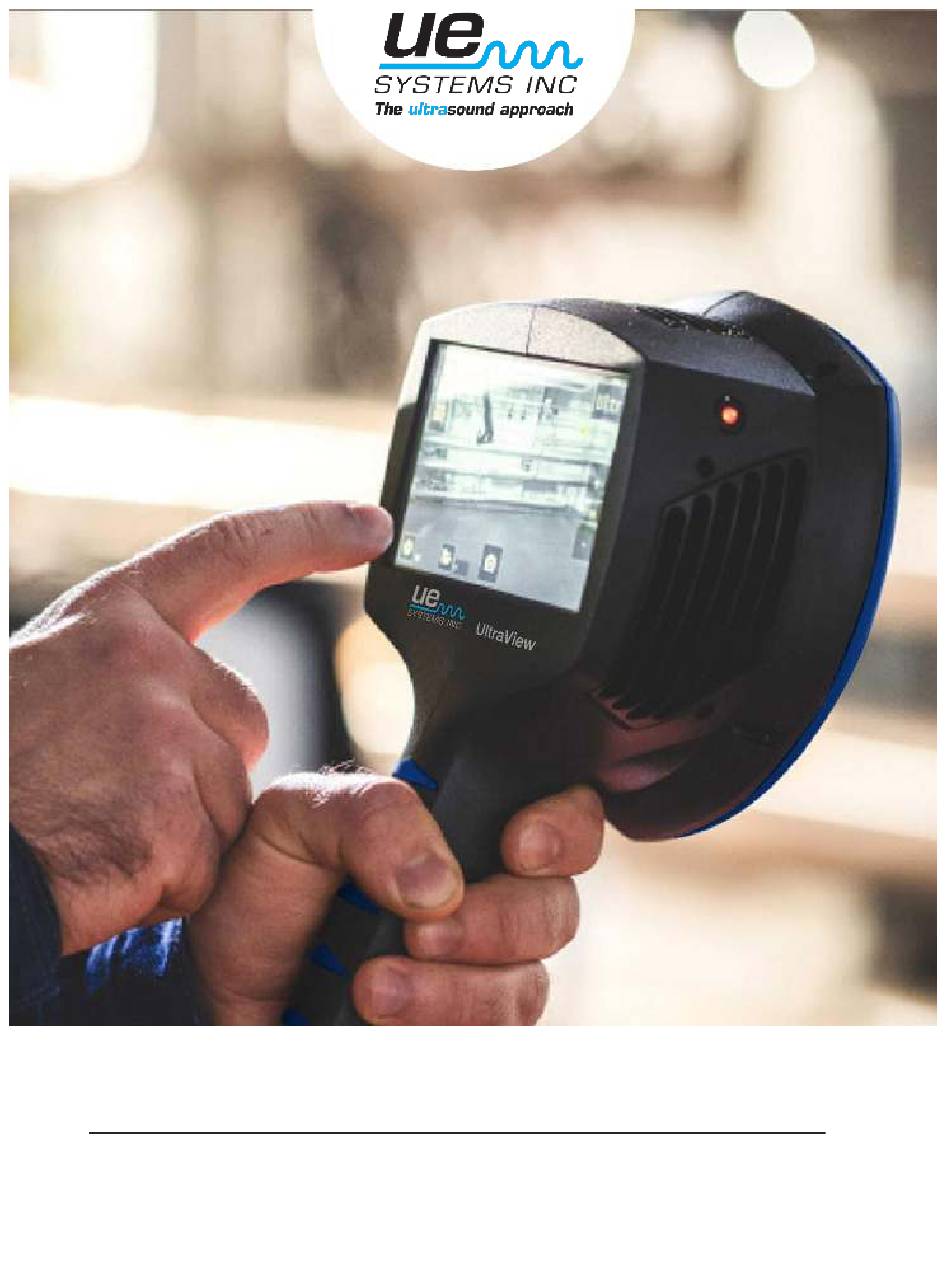

UE SYSTEMS INC.
ULTRAVIEW
MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRAVIEW and is the answer not in the manual?

Questions and answers

Summary of Contents for UE Systems ULTRAVIEW

  • Page 1 UE SYSTEMS INC. ULTRAVIEW MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. NOTICE TO USER 1.1 Legal 1.2 Compliance 1.3 Markings 1.4 Customer help 1.5 Intended use of the device 1.6 Disposal of electronic waste 2. INTRODUCTION 2.1 User safety 2.2 Specifications 2.3 Package contents 2.4 Camera parts 2.5 External battery parts 2.5.1 RRC2040 external battery parts 2.5.2 RRC2040 external battery charger...
  • Page 3 4.6 Quick settings 4.6.1 Screen brightness 4.6.2 Single-source / multi-source mode 4.7 Settings 4.7.1 Network settings 4.7.2 Time settings 4.7.3 Change mode 4.7.4 Advanced settings Language Distance unit Reset settings Available filters Remove all data Calibration mode 4.7.5 Air mode settings 4.7.6 Power mode settings 4.8 Filters 4.9 Real-time analysis...

  • Page 4: Notice To User

    All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners. UE Systems Inc. is committed to a policy of continuous development; therefore, we reserve the right to make changes and improvements to any of the products without prior notice.
  • Page 5 Please include the serial number of the device with your request. For customer help, go to www.uesystems.com. 1.5 Intended use of the device The UltraView is a solution for localizing sound sources and analyzing acoustic phenomena in compressed air systems and power grids.

  • Page 6: Introduction

    2. INTRODUCTION Thank you for choosing the UltraView. The UltraView is a standalone system for acoustic image measurements and signal analysis. The 124 microphones of the UltraView are used to form a precise acoustic image at a specific location. This acoustic image is transposed in real- time on top of a digital camera picture.

  • Page 7: User Safety

    One of the core benefits of using the UltraView comes from being able to listen and analyze ultrasonic frequencies. Most maintenance and operational problems can be identified and located precisely at these frequencies.

  • Page 8: Specifications

    2.2 Specifications DEVICE USER INTERFACE AND DISPLAY Manufacturer: UE Systems Inc. Display: Size: 5 in, 800x480; Colour: 24-bit RGB. Name: UltraView Brightness: 1000 cd/m2 (adjustable) Input device: Resistive touchscreen MECHANICAL & ENVIRONMENTAL Power on indicator: Red LED Size: 273 x 170 x 125 mm (10.7 x 6.7 x 4.9 in) Image resolution: 800x480 Video frame rate: Weight: 0.980 kg (2.2 lb).

  • Page 9: Package Contents

    2.3 Package contents The UltraView with the RRC2040 external The UltraView with the Tracer external battery, the product packaging consists of: battery, the product packaging consists of: 1. UltraView 1. UltraView 2. Two batteries 2. Battery 3. Battery housing 3. Battery cable 4.
  • Page 10 IN IMAGE 2) AS THEY WILL BECOME HOT IN USE. LONG-TERM CONTACT MAY CAUSE BURNS!! The front side of the UltraView consists of a video image sensor (item 1 in Image 2) and the item 2 in Image 2 microphone array ( ).

  • Page 11: External Battery Parts

    2.5 External battery parts The battery parts depend on whether you have purchased the UltraView with the RRC2040 external battery or with the Tracer external battery. See the battery parts below. 2.5.1 RRC2040 EXTERNAL BATTERY PARTS The main parts of the RRC2040 set are the battery housing and the RRC2040 batteries.

  • Page 12: Tracer External Battery Parts

    For charging the battery, the charger has a DC barrel plug at the end of the output cord. Do not use any chargers other than UE Systems approved chargers. 2.6 Spare parts and accessories Please ask your UE Systems for the available spare parts information: www.uesystems.com...

  • Page 13: Spare Parts And Accessories

    3.1 Spare parts and accessories The main power source of the UltraView is either RRC2040 or the Tracer external battery. The batteries should be charged fully before operating the device. Please note that the batteries should also be fully charged before storage.

  • Page 14: Charging

    This depends on multiple variables which may decrease the usage time. These are the cell temperatures, the load, and the age (cycles) of the battery. The Tracer battery and the charger are delivered with the UltraView. Only use the provided battery charger.

  • Page 15: Startup

    Image 6 item 3 in Image After you have attached the battery housing to the UltraView, by open the lid ( ) by turning the knob of the battery housing counterclockwise and insert the battery in to the item 2 in Image 7 battery housing with the connectors at the front and the charge gauge ( facing upwards.
  • Page 16 The camera is now ready for use! If the power LED of the UltraView blinks, your battery has depleted its charge before startup. When the power is on, the red Power LED is lit. The system starts after approximately 10 to 15 seconds.

  • Page 17: Startup With Tracer External Battery

    45 minutes, so the internal backup batteries are charged fully. 3.3 Device setup wizard The first time the UltraView is powered up, the device setup wizard is shown. The wizard will help you set up the settings needed for using the device. These settings can be changed later through 4.7 Settings...

  • Page 18: Shutdown

    Tracer battery. 3.4.1 SHUTDOWN WITH RRC2040 3.4.2 SHUTDOWN WITH TRACER EXTERNAL BATTERY To turn off the UltraView, simply press the on/off button. While in To turn off the UltraView, simply off state, the button is in the up disconnect the battery connector position.

  • Page 19: Heatmap

    4. USER INTERFACE The UltraView supports the following application modes, depending on the camera version. • • Air mode is used for localizing Power mode is used for localizing compressed air leaks. and classifying high-voltage and medium-voltage partial discharges. 4.1 Heatmap The main view of the user interface shows the active in the Power application mode.

  • Page 20: Take A Snapshot

    Similarly, the recorded videos cannot be replayed directly on the 4.4 Snapshot browser The number of snapshots currently saved on the UltraView is shown to the right of the Snapshot Browser button. If there are two dots visible next to the number, snapshots are currently being uploaded to the Cloud.

  • Page 21: Snapshot Upload Options

    Cloud upload for more Cloud upload for more information information. 4.5 Zoom The UltraView is equipped with a 2x digital zoom, which can be used for close- Zoom Buttons up snapshots. Press the to zoom in or zoom out. 4.6 Quick settings...

  • Page 22: Settings

    The current time and date are shown under the time settings. Choose the correct time zone to see the correct local time. The time and date are automatically synchronised when connected to WiFi. 4.7.3 TIME SETTINGS Depending on the version of the UltraView, the device can have two different modes available:...

  • Page 23: Advanced Settings

    Calibration mode settings reset will not remove any For periodically checking the accuracy of the snapshots, revert to any previous UltraView, a Sonic Tester is sold separately. For software version or remove the more information, please contact UE Systyems. device registration.

  • Page 24: Filters

    For details, see features 4.10 Cloud upload When connected to the Internet via WiFi, the UltraView will automatically upload any snapshots on Upload snapshots Snapshot browser the device to the Cloud as long as is turned on under (section 4.4: Snapshot Browser)

  • Page 25: Application Specific Features

    UltraView filter out background noise and can dampen industrial sound disturbances. The UltraView will determine if a detected sound source is likely to be a leak. On the camera, the detected leak’s size is shown in real-time. Also, the UltraView will also display an estimate of how much the detected leak costs annually.

  • Page 26: Distance

    Specify the relative humidity to get the most accurate leak size estimate. Leak corr.: The UltraView’s leak size estimate is based on a large set of different measured leaks If the leak size estimate systematically differs from your own observations, you can adjust it by setting the leak correction (leak corr.) factor.

  • Page 27: Partial Discharge Detection

    The UltraView will automatically determine when a detected sound source is likely to be a partial discharge. This autodetection works for AC frequencies of 50 and 60 Hz.

  • Page 28: Usage Techniques

    6. USAGE TECHNIQUES See the following sections for tips on how to get the most out of your UltraView. 6.1 General usage If you are using the UltraView with the RRC 2040 battery, use the wrist lanyard to ensure that you do not accidentally drop the UltraView.

  • Page 29: Reflections

    UltraView. In this case, taking a snapshot and viewing it in the Cloud might help. In the Cloud, it is possible to adjust the dynamic range of the heatmap with the slider below the image.

  • Page 30: Distance

    Image 14. An example of an actual sound source and three reflections shown by the UltraView in multi- source mode. The actual sound source is on the floor, while the three reflections are visible on the walls. When the camera is moved around, the location of the actual sound source remains the same, while the reflections move around on the walls and are not visible from all angles.

  • Page 31: Cloud

    Cloud. 8. MAINTENANCE !! NOTE: DO NOT TRY TO REPAIR OR OPEN THE ENCLOSURE OF THE ULTRAVIEW OR THE BATTERY. DO NOT USE ANY DAMAGED DEVICES, BATTERIES OR CABLES. PROTECT THE DEVICE AND ACCESSORIES FROM DIRT, DUST, IMPACTS AND LIQUIDS!! The intended usage conditions and instructions are described in this user manual.

  • Page 32: Storage

    8.1 Storage Store the equipment in a dry location at room temperature. Store the batteries fully charged and recharge once every three months. Start up the UltraView at least once every three months. These actions ensure the camera’s operational reliability.
  • Page 33 Need further support? Want information regarding products or training? CONTACT: UE Systems, Inc. 14 Hayes Street, Elmsford, NY 10523 USA 914-592-1220 | info@uesystems.com | www.uesystems.com...
