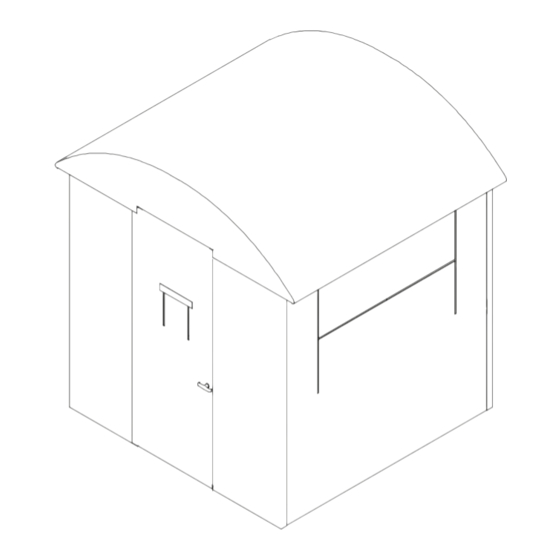

Rivers Edge LANDMARK 600 BLIND Operator's Manual

Hide thumbs

Advertisement

Quick Links

Operator's Manual
LANDMARK
™
600 BLIND
MODEL LM603
GAS/O
RATIO
50:1
Get parts online at
P/N: 39725
© 2022 RETI
C/N: 40109
www.HuntRiversEdge.com
All Rights Reserved
REV1: 1/26/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the LANDMARK 600 BLIND and is the answer not in the manual?

Questions and answers

Summary of Contents for Rivers Edge LANDMARK 600 BLIND

  • Page 1 Operator's Manual LANDMARK ™ 600 BLIND MODEL LM603 GAS/O RATIO 50:1 Get parts online at P/N: 39725 © 2022 RETI C/N: 40109 www.HuntRiversEdge.com All Rights Reserved REV1: 1/26/22...

  • Page 2: Table Of Contents

    Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge customer ®...

  • Page 3: Warnings/Tools Required

    Operator’s Manual Landmark 600 Blind ™ READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP WARNING WARNING Read, understand and follow all assembly, inspection KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent meets the flammability and use instructions provided before each use.

  • Page 4: Hardware Identification Chart

    Operator's Manual Landmark 600 Blind ™ HARDWARE LIST Item Part No. Image Description BOLT # 8909B 1/4 X 1-1/4 IN BOLT # 48240B 1/4 X 1-1/2 IN BOLT # 48153B 1/4 X 2 IN BOLT # 48271B 1/4 X 2-1/4 IN BOLT # 63282 1/4 X 1 IN...

  • Page 5: Assembly Instructions

    Operator’s Manual Landmark 600 Blind ™ ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: Do not tighten any nut and bolt combinations completely until instructions indicate to. Finger tighten plus one turn of 1. Open box, remove contents and organize all a wrench only! This will temporarily hold the lock- nut on the parts together according to their labels.
  • Page 6 Operator's Manual Landmark 600 Blind ™ 3. Attach the four middle hubs (2) to the (18) poles so that the snap buttons secure the parts together. SEE FIGURE 3. Attach the two (30) parts to the middle hubs (2) and the (15) and (17) poles as shown. The end that attaches to the middle hub does not attach with a snap button and will be secured together with hardware in a later step.
  • Page 7 Operator’s Manual Landmark 600 Blind ™ 5. Slide the four (19) poles into the middle hubs (2) so that the snap buttons secure the parts together. Pay attention to the orientation of the snap buttons. The snap buttons must face each other as shown and each through- hole must be located closer to the top.
  • Page 8 Operator's Manual Landmark 600 Blind ™ 6. Assemble the top tier frame of the blind to the rest of the frame by lifting it up and sliding the roof hubs (3) onto the rear (19) poles, the right and left front roof hubs (35, 36) onto the front (19) poles, and the door hubs (9) onto poles (10) and (16).
  • Page 9 Operator’s Manual Landmark 600 Blind ™ 8. Attach each set of angled braces (20, 21) to the four (19) poles using a 1/4-20 X 1-1/2 IN bolt (49) and 1/4-20 nut (56) for each set. SEE FIGURE 8. 9. Slide the four (26) poles into the four (27) poles and set aside.
  • Page 10 Operator's Manual Landmark 600 Blind ™ DETAIL B 10. Attach the assembled roof to the rest of the blind frame using eight 1/4-20 X 1-1/2 IN bolts (49) and 1/4-20 nuts (56). SEE FIGURE 10. Pay attention to the orientation of the roof! The roof attaches on the inside of the roof hub (3, 35, 36) tabs.
  • Page 11 Operator’s Manual Landmark 600 Blind ™ 12. Attach the two side wall panels (42) to the blind frame by first hanging the panels from the top tier of the frame using the two D-ring DETAIL E straps and hook and loop straps along the top edge of the panel.
  • Page 12 Operator's Manual Landmark 600 Blind ™ 13. Repeat similar process for back wall panel, DETAIL G slide the two (29) window poles into the sewn sleeves on the back wall panel (43). SEE FIGURE 11. Attach the back wall panel (43) to the blind frame by first hanging the panels from the top tier of the frame using the two D-ring straps and hook and loop straps along the top...
  • Page 13 Operator’s Manual Landmark 600 Blind ™ DETAIL I 15. Drape the roof panel (41) over the assembled roof frame. Secure the hook and loop attachment strips on the front and the back of the roof panel to the strips on the front and back wall panels and top tier of blind frame.
  • Page 14 Operator's Manual Landmark 600 Blind ™ 17. With the door panel (47) laid out flat, flip the assembled door frame over onto the panel. Then, flip pole (14), top edge of panel and the Hook two long ends of cam straps over the frame. and Loop SEE FIGURE 17.
  • Page 15 Operator’s Manual Landmark 600 Blind ™ 19. Attach the six vertical window panels (46) on the interior of the blind by clipping two panels onto the top and middle tiers of the frame on each wall as shown. SEE FIGURE 19.

  • Page 16: Notes

    Operator's Manual Landmark 600 Blind ™ ILLUSTRATED PARTS BREAKDOWN - BASE Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 17 Operator’s Manual Landmark 600 Blind ™ ILLUSTRATED PARTS BREAKDOWN - CENTER Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 18 Operator's Manual Landmark 600 Blind ™ ILLUSTRATED PARTS BREAKDOWN - ROOF Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 19 Operator’s Manual Landmark 600 Blind ™ ILLUSTRATED PARTS BREAKDOWN - PANELS Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...

  • Page 20: Parts List

    Operator's Manual Landmark 600 Blind ™ PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 22864 BASE HUB 39088 WINDOW VERTICAL BACK WALL 22868 MIDDLE HUB 39089 HORIZONTAL SUPPORT MID- DLE FRONT 22873 ROOF HUB 39090 HORIZONTAL SUPPORT LOW- 22876...
  • Page 21 Operator’s Manual Landmark 600 Blind ™ NOTES Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...

  • Page 22: Notes

    Operator's Manual Landmark 600 Blind ™ NOTES Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 23 Operator’s Manual Landmark 600 Blind ™ NOTES Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 24 WE ARE HUNTERS Ardisam, Inc. Phone: 800-345-6007 1730 Industrial Ave. Fax: 715-822-2124 Cumberland, WI 54829 www.HuntRiversEdge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product images may have been removed for photography purposes only.
