Page 1

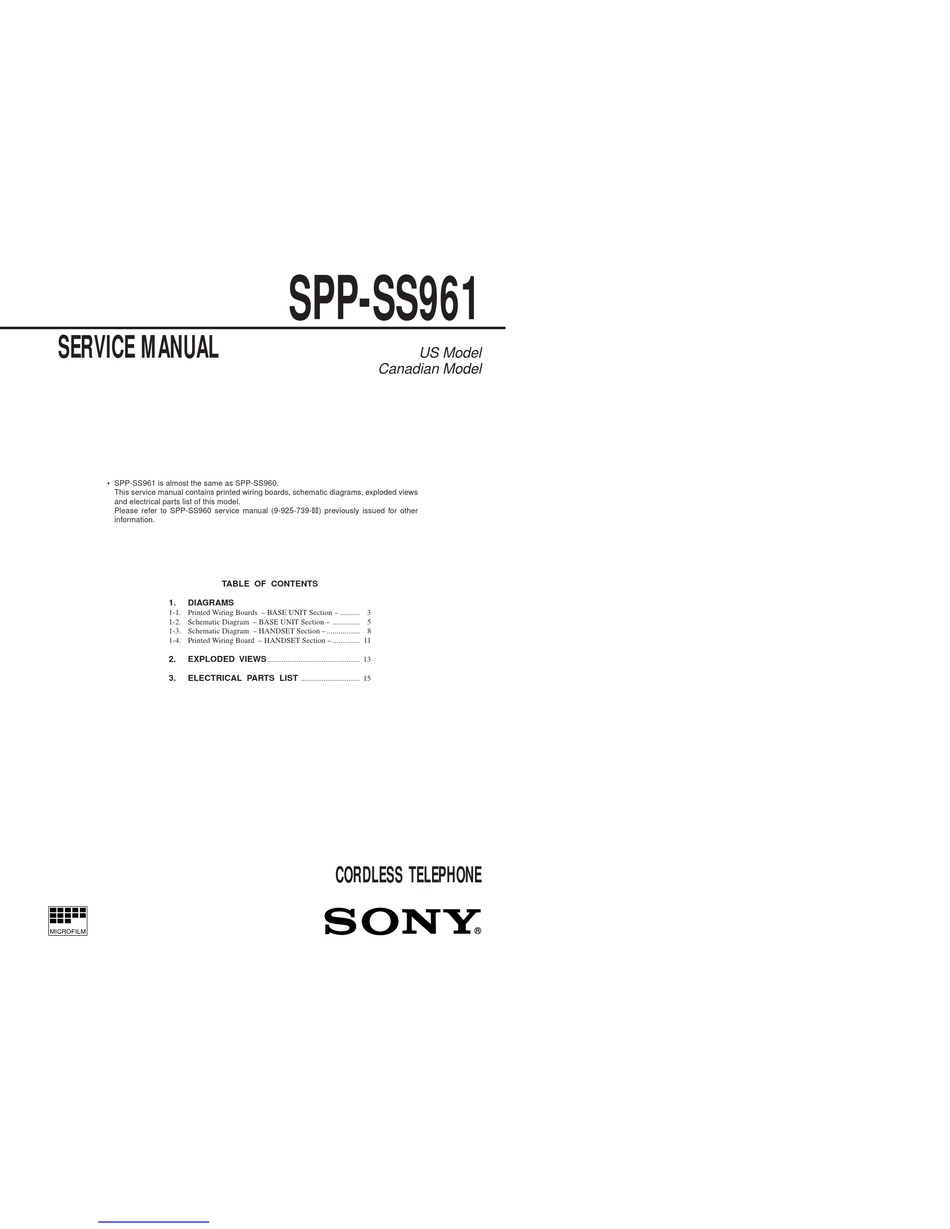

SERVICE MANUAL US Model Canadian Model • SPP-SS961 is almost the same as SPP-SS960. This service manual contains printed wiring boards, schematic diagrams, exploded views and electrical parts list of this model. Please refer to SPP-SS960 service manual (9-925-739-∏) previously issued for other information.
Page 2
SPP-SS961 1. DIAGRAMS 1-1. PRINTED WIRING BOARDS – BASE UNIT Section – • Semiconductor Location – BASE MAIN Board – (Side B) • Semiconductor Location Note: • X : parts extracted from the component side. – BASE MAIN Board – (Side A) Ref.
Page 3
• Waveform 1 IC751 (¶ (XTALI) 4 Vp-p 9.6 MHz Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and W or less unless otherwise specified.
Page 4
• Waveform 1 IC501 (¶ (XTALI) 2.9 Vp-p 9.6 MHz Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and W or less unless otherwise specified.
Page 5
SPP-SS961 1-4. PRINTED WIRING BOARD – HANDSET Section – • Semiconductor Location – HAND MAIN Board – (Side A) Ref. No. Location D403 D502 D503 Q501 Q504 Q505 • Semiconductor Location – HAND MAIN Board – (Side B) Ref. No.
Page 6
2. EXPLODED VIEWS (2) BASESET SECTION NOTE: • -XX and -X mean standardized parts, so they • Items marked “*” are not stocked since they may have some difference from the original are seldom required for routine service. Some one. delay should be anticipated when ordering •...
Page 7
BASE MAIN 3. ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • Items marked “*” are not stocked since they The components identified by are seldom required for routine service. parts list may be different from the parts speci- mark ! or dotted line with mark fied in the diagrams or the components used Some delay should be anticipated when order-...
Page 8
BASE MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D105 8-719-157-36 DIODE RD6.8M-B D108 8-719-914-42 DIODE DA204K < JACK > D109 8-719-914-42 DIODE DA204K D110 8-719-914-42 DIODE DA204K ! MJ101 1-766-250-11 JACK, MODULAR (2C) 6P (LINE) D150 8-719-991-33 DIODE 1SS133T-77 <...
Page 9
BASE MAIN HAND MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R153 1-216-081-00 METAL CHIP 1/10W R914 1-216-041-00 METAL CHIP 1/10W R154 1-216-089-00 METAL CHIP 1/10W R952 1-216-049-11 METAL GLAZE 1/10W R156 1-216-049-11 METAL GLAZE 1/10W R157 1-216-073-00 METAL CHIP...
Page 10
HAND MAIN Ref. No. Ref. No. Part No. Part No. Description Description Remark Remark Ref. No. Ref. No. Part No. Part No. Description Description Remark Remark IC502 8-759-487-05 IC S-24C16AFJ-TB C415 1-163-243-11 CERAMIC CHIP 47PF C416 1-163-243-11 CERAMIC CHIP 47PF <...
Page 11
HAND MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R416 1-216-817-11 METAL CHIP 1/16W R594 1-216-827-11 METAL CHIP 3.3K 1/16W R417 1-216-809-11 RES, CHIP 1/10W < SWITCH > R501 1-216-121-00 RES, CHIP 1/10W R502 1-216-025-00 RES, CHIP 1/10W S501 1-692-991-11 SWITCH, SLIDE (RING ON/BATT SAVE)
