- Page 1 Setup Guide & Manual...
- Page 2 What’s in the Box Voltera NOVA Smart Dispenser Wi-Fi Dongle Smart Probe Power Cable Brush Power Adapter 150 µm Nozzle Luer Couplers Anchor Mount 100 µm Nozzle Tip Cap Swivel Mount Pistons Thumbscrews Pressure Sensor Conductive Ink Nozzle Wrench UV Blocking Cartridges 225 µm Nozzle...

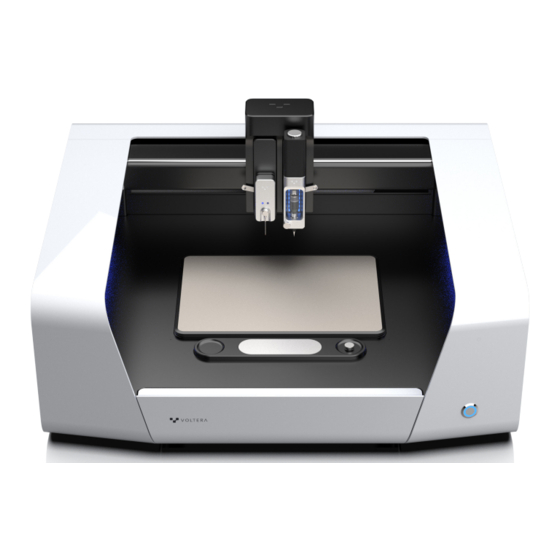

- Page 3 Printer Anatomy NOVA 1. Power button 2. The bridge 3. Mounting grid 4. Module hub 5. Drawer 6. XYZ positioner 7. Calibration plate 8. Module port 9. Smart Dispenser 10. Connection ports Smart Dispenser Pressure Sensor 1. Pressure sensing 1. Actuator override dial membrane 2.
- Page 4 First Time Setup Guide Connect NOVA Plug wifi dongle to computer with in to NOVA’s ethernet cable USB port Plug in Power Cable Proceed to Step 5 of the document Power on NOVA...
- Page 5 When connecting your computer to NOVA with an ethernet cable, your computer will typically view NOVA as a router and try to connect to the internet through NOVA. If NOVA does not have a stable connection, this can cause your computer to lose internet connection, and your browser may indicate an interrupted connection (see below, for example, on Chrome).
- Page 6 Step 5a - For Computers Running Windows 1. Wait for the System to Recover In the majority of cases, Windows computers will restore their internet connection in 2-3 minutes. If the connection doesn’t recover, continue to the following steps. 2. Refresh your Wi-Fi Connection Refresh your Wi-Fi connection.
- Page 7 When your computer connects to NOVA over an ethernet cable, it will automatically configure NOVA as a new ethernet connection, which has a higher priority than Wi-Fi by default. When this happens, your browser will give an error — for example, in Safari: Follow the steps below to give priority to your computer’s stable internet connection.
- Page 8 Your computer should now have internet access, you can proceed with setup. If you are still not able to access the internet, contact Voltera Support. If you’re trying to connect to the Internet at an institution that has a dedicated IT Department, refer to the...
-
Page 9: Table Of Contents
Getting NOVA Online (For IT Department Involvement) 4.1 NOVA’s MAC Address 4.2 Static vs. Dynamic IP Lease 4.3 Connecting NOVA via Wi-Fi 4.4 Connecting NOVA to a Mobile Wi-Fi Hotspot 4.5 Connecting NOVA via Ethernet Hardware Overview & Network Capabilities Communications... -
Page 10: Introduction
NOVA is a flexible and accessible platform which is designed to be easy to use. However, proper training and supervision is required to ensure safe operation. As with any lab equipment, NOVA and the accompanying materials and modules should be handled with care, and you should read this manual carefully before using NOVA. -
Page 11: Safety Markings & Warning Statements
2.3 Two Person Lift Heavy Equipment NOVA weighs 35 kg (77 lbs), and should always be lifted by two people to avoid injury. Use proper lifting technique when relocating. Failing to do so can cause muscle strain or back injury. -
Page 12: Use Personal Protective Equipment
2.0 Safety Markings & Warning Statements 2.4 Use Personal Protective Equipment Hearing Protection NOVA contains vacuum pumps which can run loud at maximum power. If the pumps are run above 30% duty cycle for extended periods, wear hearing protection. Eye Protection Wear eye protection if using the Smart Probe Module with custom fixturing, printing on 3D structures, or when using mounting accessories. -
Page 13: Physical Installation & Setup
3.0 Physical Installation & Setup 3.1 Unbox the Machine Your NOVA will arrive in a box on a pallet. Before installing NOVA, make sure you have another person available to help lift the equipment. 1. Open the box and lift NOVA out. -
Page 14: Getting Nova Online (For It Department Involvement)
MAC address can be found any time through the Network window in NOVA’s web app. 4.2 Static vs. Dynamic IP Lease A dynamic IP lease for NOVA is fine. NOVA does not require a static IP lease, but it can be set up if desired. 4.3 Connecting NOVA via Wi-Fi... -
Page 15: Connecting Nova To A Mobile Wi-Fi Hotspot
4.5 Connecting NOVA via Ethernet NOVA can also connect to a network over an Ethernet cable, but only through a router or wall port (computers will not share their internet connection with NOVA by default). Registering the MAC address of NOVA may or may not be required, depending on how the LAN is set up. - Page 16 1. Plug in a Wi-Fi adapter (such as the one provided) into one of NOVA’s USB ports. If NOVA does not see a wifi adapter on startup (even if it is not in use), it will display an error message.
-
Page 17: Hardware Overview & Network Capabilities
To connect the Nano module to the Internet, a Wi-Fi adapter or an Ethernet cable must be plugged into NOVA. The Wi-Fi adapter that is shipped with NOVA is a TP-link TL-WN725N 2.4 GHz USB Wi-Fi Adapter. A different Wi-Fi adapter can be used instead of the one provided by Voltera if desired, but Voltera cannot guarantee it will be compatible with NOVA’s... -
Page 18: Privacy Policy
6.3 Traffic NOVA requests software updates if they are available and network information once every hour if it is sitting idle. During operation, NOVA sends the data detailed in section 8.0 to Voltera for product improvement. 7.0 Privacy Policy... -
Page 19: Data Nova Collects
Voltera for assistance. 9.2 Suggested 3rd-Party Tools & Software NOVA allows you to pattern flexible or rigid substrates with your materials of choice. However, oftentimes, you may need programs, processing equipment, or additional materials to achieve the full functionality of your device. Based on your discretion, we recommend making any arrangement necessary to access the following: 9.2.1 Consumables and Equipment... - Page 20 Autodesk EAGLE or KiCad. There are many free resources and tutorials readily available online which should allow you to quickly learn how to design and export Gerber files, if required. Voltera also has Gerber export guides for EAGLE, KiCad, and Altium available on the Voltera website.
- Page 21 9.0 Service & Maintenance 9.4 Protect the Nozzle The golden rule of high quality dispensing is to protect the dispensing nozzle. If the nozzle tip is dented, bent, broken, or contaminated with dry ink, print quality will suffer. To ensure optimal performance, follow the guidelines below: 1.
- Page 22 If conductive ink gets into the pores of the vacuum table, it can clog and prevent suction. If ink gets on the vacuum table, wipe with solvent quickly and thoroughly. If the pores are clogged, contact Voltera directly. 9.10 Hold the Modules When Releasing the Locking Lever When the locking lever on the module hub is released, there is nothing supporting your modules and they may drop off the hub.
-
Page 23: Specifications
10.0 Specifications Disclaimer: Voltera reserves the right to change or update the following specifications at any time without notice. Please contact support@voltera.io for the most up-to-date information. System Specifications Maximum Dimensions 675 x 605 x 345 mm 26.6” x 23.8” x 13.6”... - Page 24 10.0 Specifications Disclaimer: Voltera reserves the right to change or update the following specifications at any time without notice. Please contact support@voltera.io for the most up-to-date information. Dispenser Module Specifications Maximum fluid pressure 70 PSI Maximum control temperature 40ºC 104ºF...
-
Page 25: Company And Product Identification
11.0 Company and Product Identification Voltera Inc. 113 Breithaupt Street, Suite 100 N2H5G9 ON, Canada 1-888-381-3332 For support, call or email Voltera at support@voltera.io 11.1 Markings... - Page 26 For consumables and replacement parts, please contact our sales team or visit our online store: sales@voltera.io +1 888-381-3332 Ext. 1 voltera.io/store For technical assistance, please reach out to our technical support team: support@voltera.io +1 888-381-3332 Ext. 2 voltera.io/support 113 Breithaupt St. Suite 100...
