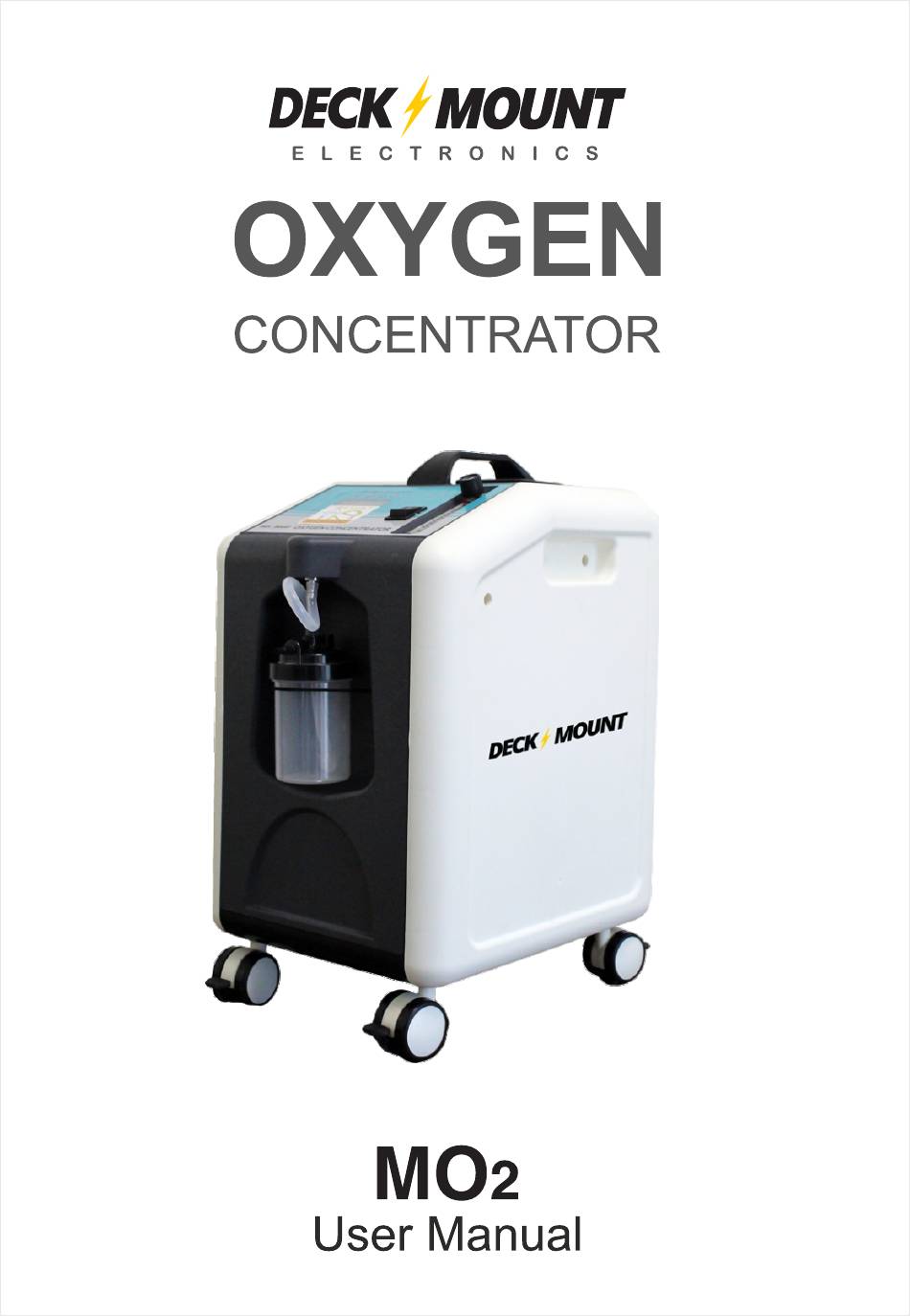

DECK MOUNT MO2 User Manual

Oxygen concentrator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MO2 and is the answer not in the manual?

Questions and answers

Summary of Contents for DECK MOUNT MO2

  • Page 2: Table Of Contents

    TABLE OF CONTENTS P R E FA C E ..................2 S A F E G U A R D S M E A S U R E S .

  • Page 3: Preface

    PREFACE Dear User, Greetings from team MO2 ! Congratulations on your purchase. We value your support! This user manual will guide you through the notices, operational process, functions, technical parameters and troubleshooting; making you familiar with our product to reach the optimum performance of your device.

  • Page 4: M A N U Fa C T U R E R I N F O R M At I O

    SAFEGUARD MEASURES Avoid using the machine whilst taking a shower/bath. If needed, please consult with your doctor / medical practitioner. The oxygen concentrator must be used in another room at least 2.5 meters away from the bathroom. We recommend to keep the ‘p’ nasal oxygen tube less than 11 meters in length.
  • Page 5 SAFEGUARD MEASURES To avoid cross infection caused by various viruses and bacteria, avoid sharing the same set of nasal oxygen tubes and oxygen masks amongst multiple users. It is recommended that you turn off the power switch and unplug the power cord when it is not in use.
  • Page 6 PLEASE PAY SPECIAL ATTENTION TO THE FOLLOWING After booting up the purity of the oxygen will be up to 90% for the first 5 minutes. The nasal oxygen tube used by patients needs to be cleaned thoroughly and sterilized at regular intervals for multiple or repeated use. The standard sanitary measures of the parts of the oxygen concentrator are as follows - Humidification Bottle - needs to be cleaned and sterilized every 2 to 3 days...

  • Page 7: Related Use Symbol Description

    To recognize and understand your machine and the symbols, kindly refer to the table Ÿ given below - RELATED USE SYMBOL DESCRIPTION Serial Number This way up Waste Electrical and Electronics Equipment Directive 2002/96/EC (WEEE DIRECTIVE).To scrap or do away with your machine, always contact your local supplier or the manufacturer for...

  • Page 8: C H E C K Pa C K A G E A N D Pa C K I N G L I S T

    Notify your local supplier or the manufacturer in case of any missing components. Sr. No. Product/Component Quantity Unit Oxygen Concentrator Unit Humidification Water Bottle Piece(s) Oxygen Nasal Tube Piece(s) Air Intake Filtering Foam Piece(s) MO2 Oxygen Concentrator Piece(s) User Manual...

  • Page 9: Product Operating Procedure

    PRODUCT OPERATING PROCEDURE 1. Before booting your oxygen concentrator, make sure to cut off all the packaging knots and ties from the bottom. The back of your device should at least have a distance of about 30 cms from the wall. Ensure that there is a normal airflowat the bottom of the oxygen concentrator which will maintain the normal heat and functioning of your device.
  • Page 10 B).Attach the water humidification bottle to the oxygen concentrator using the elastic band . Since the humidification bottle is suspended, ensure that it is connected properly to the outlet port of the oxygen concentrator and with intake connector of the humidifier bottle (Refer FIGURE 2) Elastic band...

  • Page 11: A B O U T T H E P R O D U C

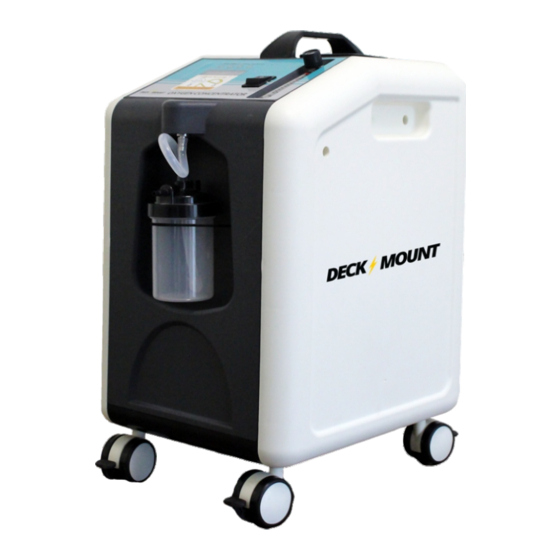

    ABOUT THE PRODUCT MO2 Oxygen Concentrator is an oxygen concentrator used at home, nursing homes or patient care centres to provide low flow oxygen therapy. Our oxygen concentrator works on the concept of pressure swing adsorption. It uses the ambient air present in the atmosphere and separates nitrogen out of it.

  • Page 12: Additional Remarks

    ADDITIONAL REMARKS Classification of protection against electric shock: Class II Classification according to the degree of protection against electric shock: Class BF Classification according to the degree of protection of the liquid into the machine: IP21 Device According to the degree of safety classification implied in flammable anaesthetic mixture with air or oxygen or Nitrous Oxide anaesthetic mixture case: when do not use of flammable gas and air mixed with oxygen or Nitrous...

  • Page 13: Purity Value And Flow Functions Chart

    PURITY VALUE AND FLOW FUNCTION CHART output pressure=0, Purity and value flow funtions chart ( Figure - 4) PURITY VALUE AND FLOW FUNCTION CHART...

  • Page 14: T E C H N I C A L P A R A M E T E R

    TECHNICAL PARAMETERS Parameter Value Voltage 230V-+10% / 50Hz + 1 Hz Highest flow 10 Liter Per Minute Power consumption 770 VA Weight 20.5 Kg Warranty 1 year Oxygen output pressure 60 kPA - 80 kPA Purity 90%-93% at 10 Liter Per Minute Range of adjusting flow 0 to10 Liter Per Minute Noise...

  • Page 15: Components Name And Functions Description

    COMPONENTS OF MO2 OXYGEN CONCENTRATOR OXYGEN OUTLET - Attach to the humidification water bottle or nasal oxygen tube using the connecting tube. PRODUCT NAME PLATE/ PRODUCT LABEL – Refer to this label to know about your product performance or serial number.
  • Page 16 MO2 - OXYGEN CONCENTRATOR Power Switch: O (OFF) I (ON) Oxygen Flow Meter - 8 a) The oxygen flow meter indicates the oxygen flowing from the oxygen outlet port in litres per minute (lpm). 8 b) Flow Adjusting Regulator : Adjust and control the flow of the output oxygen to the prescribed settings by turning the knob on the top of the flow...
  • Page 17 TROUBLE SHOOTING MO2 is equipped with the following self-testing features: Low Purity Cycle Fault < 80% purity alarm Low Pressure Alarm High Pressure Alarm While functioning normally the fault monitoring feature of your oxygen concentrator will monitor the state of your machine. If the purity of the oxygen output level is <80% the red (10c) oxygen indicator light will shine.
  • Page 18 CLEANING AND MAINTENANCE INSTRUCTIONS The Outside Shell – It is recommended to clean the outside shell twice a month. Please cut off the power supply and use a detergent-soaked wet towel to clean the exteriors gently. Follow it up to dry using a dry cloth/towel. The Water Humidification Bottle –...
  • Page 19 FAULT AND REPAIRING COMPARISON TABLE pull...
  • Page 20 ELECTROMAGNETIC IMMUNITY The MO2 oxygen concentrator is intended for use in the electromagnetic environment specified below. The user of MO2 oxygen concentrator should ensure that the following requisites are fulfilled. Immunity test IEC 60601 test lev Compliance level Electromagnetic environment-guidance...
  • Page 21 fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strengthens in the location in which the MO2 oxygen concentrator is used and it exceeds the applicable RF compliance level above, the MO2 oxygen concentrator should be observed to verify normal operation.

  • Page 22: Warranty

    The warranty period is valid till 1 year from the date of purchase to the expiration of the time cut-off point for the quality assurance period. We do not accept the failure of MO2 oxygen concentrator due to unauthorized modification or installation of other features.
