PeriMicro, PeriMilli, and PeriNano OPERATOR'S MANUAL
Congratulations on your purchase from CorSolutions! Please read this Operator's Manual which explains
proper operation of the fluid delivery pump.
Safety Warning:
CorSolutions Version V2.003

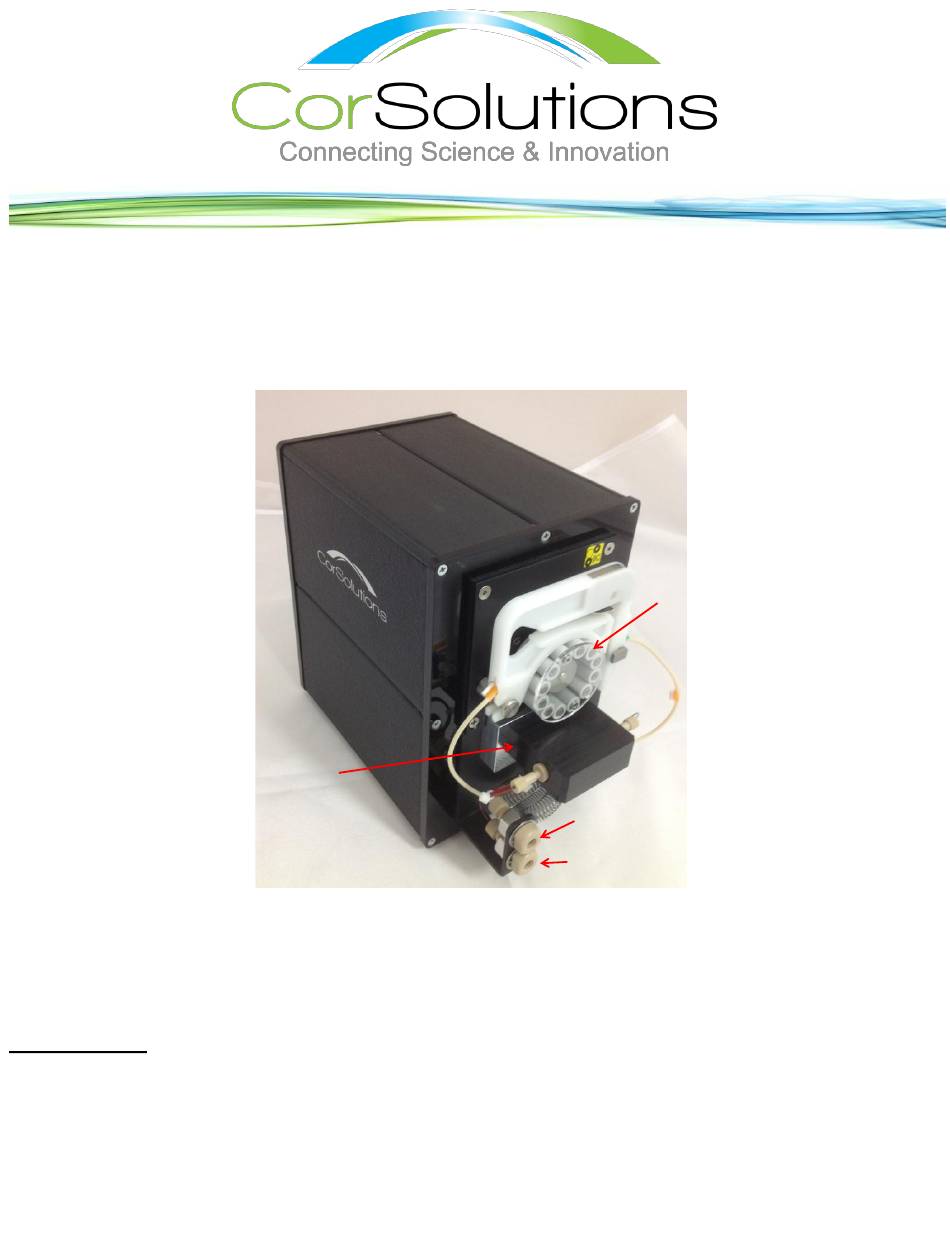

The PeriWave Pump Product Line:
Flow
Sensor
- Not approved or intended for human use.
- Always wear protective eyewear when pump is in use.
Pump
Rollers
Liquid Inlet
Liquid Outlet
1
Advertisement
Summary of Contents for CorSolutions PeriMicro
- Page 1 Flow Sensor Liquid Inlet Liquid Outlet Congratulations on your purchase from CorSolutions! Please read this Operator’s Manual which explains proper operation of the fluid delivery pump. Safety Warning: - Not approved or intended for human use. - Always wear protective eyewear when pump is in use.
-
Page 2: Important Points
If a different outlet tubing type is desired, please employ a union at the end of the 1/32-inch outlet tube to connect to the desired tubing type. CorSolutions has adapters available to convert from 1/32-inch to 1/16-inch (part number: Union-188-P) 3) The lines should be rinsed with 5% bleach before turning off the pump or after use with salty or viscous solutions. - Page 3 1B. To install the software version for computers currently running the program LabVIEW use the “CorSolutions Pump App Build” . Copy the entire directory “CorSolutions Pump App Build” with all its contents, to the computer hard drive. Then click on the application CorSolutionsPump.EXE, and installation will begin.
- Page 4 Right click on the "USB Serial Port (COMx)" entry, a drop down will appear: 7. Click on the "Port Settings" tab at the top, then click the "Advanced" button. CorSolutions Version V2.003...
- Page 5 9. The "Latency Timer (msec)" setting is to be changed. Click on it then select and change the value to 2. 10. Click on the OK button, and follow back through the dialogs clicking OK in turn. CorSolutions Version V2.003...
-
Page 6: Using Your Pump
Starting the Software. Start the software by clicking on the “CorSolutions” icon shown below. A box, similar to the one below will then open. Then select “Scan All Ports”, as indicated below. A CorSolutions’ pump will be detected if present, and will be indicated in the “Device Found” field. CorSolutions Version V2.003... - Page 7 The software will then open as indicated below for a single pump (Left) or two pumps (right). CorSolutions Version V2.003...
- Page 8 Next remove the fitting to the inlet side of the flow sensor, as shown below. This will relieve the backpressure in the system during the purge process. Remove Inlet Line To Flow Sensor When Purging At high Flow Rates CorSolutions Version V2.003...
- Page 9 Liquid will soon be observed exiting the Flow Sensor inlet fitting, as shown below. Allow for liquid to continue exiting until all major air bubbles are purged. Purge Until Liquid Exits the tube and no air bubbles are observed CorSolutions Version V2.003...
- Page 10 Then reconnect the fitting into the flow sensor inlet, ensuring that the tubing is seated past the ferrule’s end for the PeriNano & PeriMicro pump models. (For the PeriMilli model, insure the tube is flush with the bottom of the flat bottom ferrule.) The image below shows how the tubing needs to protrude from the fitting end in order to make a proper connection to the flow sensor.
- Page 11 PeriNano = 7 microliters/min PeriMicro = 50 microliters/min PeriMilli = 1000 microliters/min Click the “Stop” button to stop the flow of liquid. And finally, click the “Purge Mode” button to take the pump out of “Purge Mode”.
- Page 12 When the time limit has been reached, the software sets the flow rate to 0 µL/min. This feature is useful if a user wants the pump to run for a period of time, but to stop before the user returns to the lab. CorSolutions Version V2.003...
- Page 13 The Sine Wave will be generated over 30 seconds with the flow resulting in 800 to 1200 with the center of the Wave being at 1000 The Wave will be repeated until you hit Stop or reenter into the Waveform dialog Box and un check the “Use Waveform” CorSolutions Version V2.003...
- Page 14 Click Here The Waveform Configuration Window will open: Waveform Configuration Window 1. Enter the values in the “offset”, “Amplitude”, and “Period” Field 2. Choose the “Type” of Waveform 3. Check the box “Use Waveform” 4. Select the “OK” CorSolutions Version V2.003...
- Page 15 This will generate a plug of air that will sweep out the small trapped bubbles in the system. CorSolutions Version V2.003...
-
Page 16: Maintenance
This valve loop allows for a small sample volume (based on user defined loop size) to be introduced to the microdevice with only the transfer tubing to the microdevice contributing to the system volume. The loop and tubing may be FEP or PEEK providing a relative inert flow path. CorSolutions’ Part number: ACC-154)
