Summary of Contents for CRD LASER TECHNOLOGY CR60

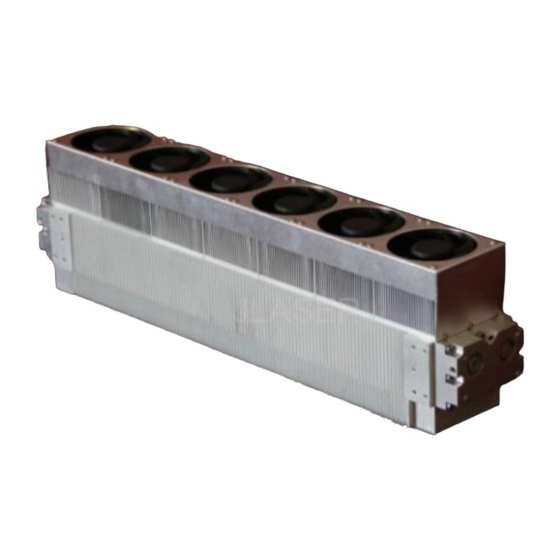

- Page 1 南京晨锐腾晶激光科技有限公司 NANJING CRD LASER TECHNOLOGY CO., LTD CR60 Laser Operator’s Manual...
-
Page 2: Table Of Contents
The back panel Description…………………………………………………………………………….8,9 Series CR Parameters and Installation diagram CR Series laser parameter table………………………………………………………………………..10 CR60 Installation diagram……………………………………………………………………….…..10 Figure 1：The panel Description…………………………………………………………………….….11 Figure 2：CR60 Outline diagram……………………………………………………………… …… 12 Figure 3：CR60 Mounting hole…………………………………………………………………….…13 CRD Laser after-sales service commitment CRD Laser after-sales service commitment………………………………………………………... 14,15... -
Page 3: Dangerous Warning
南京晨锐腾晶激光科技有限公司 NANJING CRD LASER TECHNOLOGY CO., LTD Laser Safety Dangerous Warning: Danger: Imminent hazards which, if not avoided, will result in death or serious injury. Warning: Potential hazards which, if not avoided, could result in death or serious injury. Caution: Potential hazards or unsafe practices which, if not avoided, may result in minor or moderate injury. -
Page 4: Safety Regulations
南京晨锐腾晶激光科技有限公司 NANJING CRD LASER TECHNOLOGY CO., LTD ◆ Class 4 laser product, Invisible laser radiation, Avoid eye or skin exposure to direct or scattered radiation ◆ Laser Radiation Warning. ◆ Laser label. Model: CR55; Serial Number: 109001；Production date: January 4th,2009 ◆... -
Page 5: Getting Started
南京晨锐腾晶激光科技有限公司 NANJING CRD LASER TECHNOLOGY CO., LTD Getting Started Inspection the packaging: 1. Inspect all shipping containers for signs of damage, Severe deformation and damp. 2. Inspect the integrity of the sealing tape. 3. Inspect the position of Laser in the box is correct after the unpacking (loose in the package of plastic bubble). -
Page 6: Operation
南京晨锐腾晶激光科技有限公司 NANJING CRD LASER TECHNOLOGY CO., LTD Operation Fan connection and installation requirements Shell on the chassis shall be fitted with exhaust devices (exhaust fan can be installed in the chassis in whole or in the middle of both sides of the chassis) and the chassis are required to have vents，Chassis to ensure the air can be recycled,... -
Page 7: Control Signals Connections
. The connection cannot be reversed between the power and laser; otherwise it will damage RF Driver IV. Control signals connections: ◆ The external control signals of CR60 Laser are accessed through the back panel BNC connector of the laser. Pulse width modulation (PWM): CR60 Laser is controlled laser power by Pulse width modulation (PWM). -
Page 8: The Back Panel Description
南京晨锐腾晶激光科技有限公司 NANJING CRD LASER TECHNOLOGY CO., LTD The Preionization Signal: CR60 have preionization signal, do not need to add preionization signal. If add preionization signal from the external controller, it may cause laser light leak. The back panel Description: The panel including (see Installation Figure 1): ● Power input terminals ● Switch ●Power indicator light (green) ●... -
Page 9: Series Cr Parameters And Installation Diagram
<1.2 Model Quality 2±0.2mm Beam Waist Size <7mrad Beam Divergence >100：1 Horizontal Polarization 0-25kHz，0-100% Modulation 48VDC/20A Power Supply CR60 Air cooling/CR60L water cooling 6L/M Cooling Heat dissipation 1000W power :540×93×145mm :540×93×95mm Air cooling water cooling Dimensions 20000Hours (inflatable) Life 2. CR60 Installation diagram... -
Page 10: Crd Laser After-Sales Service Commitment
NANJING CRD LASER TECHNOLOGY CO., LTD CRD Laser after-sales service commitment Dear customers: Thank you for purchasing series CR lasers from Nanjing CRD Laser Technology Co., LTD, in order to relieve your worries; we will make our warranted services for you, as the following commitments: 1. - Page 11 南京晨锐腾晶激光科技有限公司 NANJING CRD LASER TECHNOLOGY CO., LTD period of free warranty, are not within the free warranty: ■ The fault or the damage caused by without following manual request, wrongly install or use and so on. ■ Maintenance by non-manufacturers, the man-made treatment of customer resulted in failure and damage.
- Page 12 L A S E R R E D 3 0 . 5 1 2 . 5 4 5 0 . 4 1 2 . 5 D C 4 8 V + D C 4 8 V - P W M + S U P P L Y G R E E N B N C 4 ×...
- Page 13 L A S E R R E D 3 0 . 5 1 2 . 5 4 5 0 . 4 1 2 . 5 D C 4 8 V + D C 4 8 V - 6 5 . 5 P W M + S U P P L Y G R E E N B N C...
