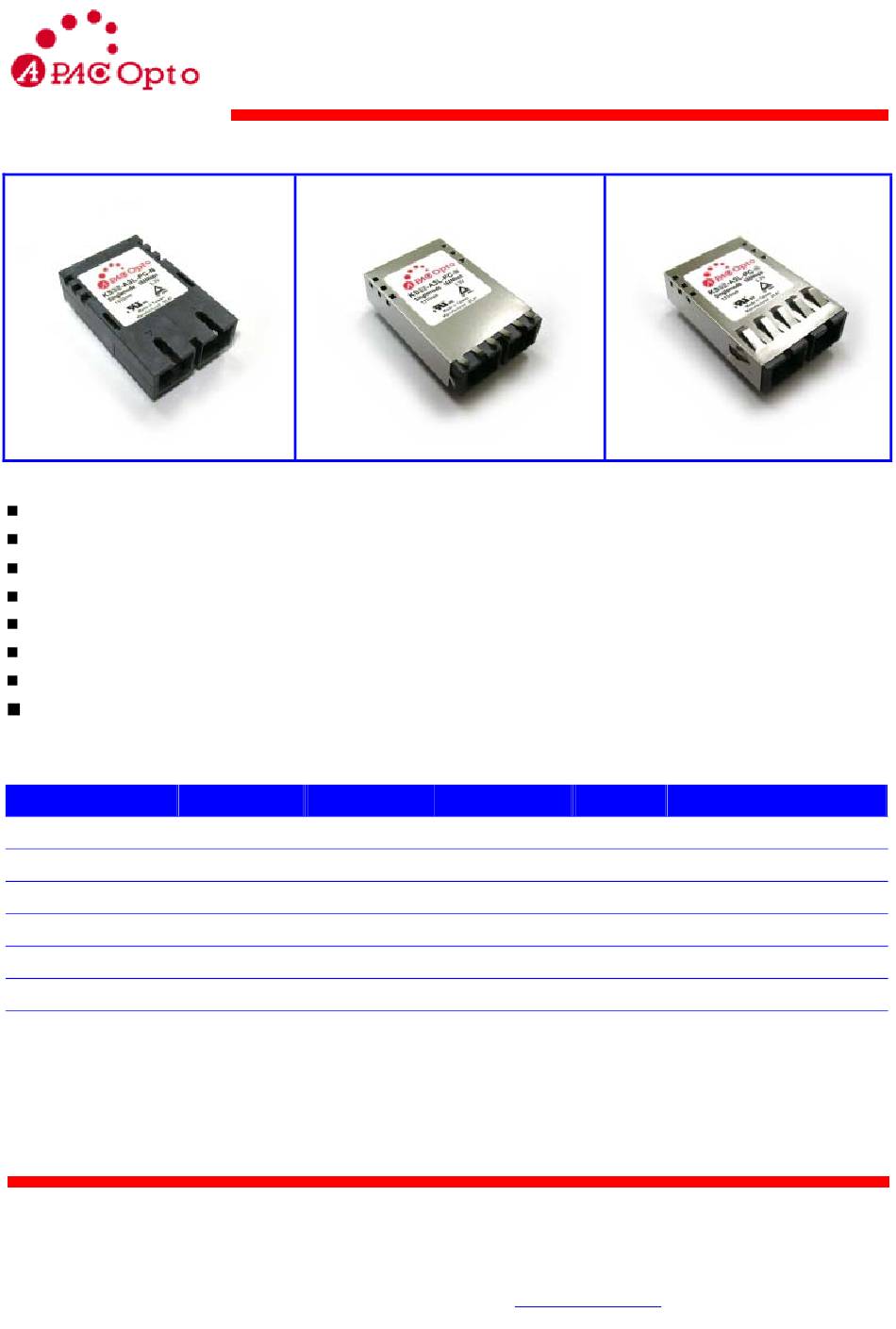

No Shield
Features
Compliant with IEEE 802.3z Gigabit Ethernet standard
Compliant with Fiber Channel 100-SM-LC-L standard
Industry standard 1×9 footprint
SC duplex connector
Single power supply 3.3V/5V
Differential LVPECL/PECL inputs and outputs
Compatible with solder and aqueous wash processes
Class 1 laser product complies with EN 60825-1
Ordering Information
PART NUMBER
LS32-CAU-PC-Nxx
LS32-CAU-PC-Bxx
LS32-CAU-PC-Fxx
LS32-CAU-TC-Nxx
LS32-CAU-TC-Bxx
LS32-CAU-TC-Fxx
Note: XX=27, Center Wavelength=1270nm
XX=31, Center Wavelength=1310nm
XX=35, Center Wavelength=1350nm
XX=39, Center Wavelength=1390nm
XX=43, Center Wavelength=1430nm
Page 1 of 14
Version 1.1
Date:1/30/2006
RoHS compliant
CWDM 1310 nm Single-mode Transceiver (24dB margin)
1×9, SC Duplex Connector, 3.3 V/5V
1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet
WAVELENGTH
INPUT/OUTPUT SIGNAL DETECT
1270 ~ 1450 nm
DC/DC
1270 ~ 1450 nm
DC/DC
1270 ~ 1450 nm
DC/DC
1270 ~ 1450 nm
AC/AC
1270 ~ 1450 nm
AC/AC
1270 ~ 1450 nm
AC/AC
, XX=29, Center Wavelength=1290nm
, XX=33, Center Wavelength=1330nm
, XX=37, Center Wavelength=1370nm
, XX=41, Center Wavelength=1410nm
, XX=45, Center Wavelength=1450nm
Forward Clipper
LVPECL/PECL
LVPECL/PECL
LVPECL/PECL
TTL
TTL
TTL
Headquarters :
12 Shyr Jiann Road, Hsinchu Industrial Park, Hukow,
Hsinchu Hsien,, Taiwan 303
TEL: +886-3-5986799
FAX: +886-3-5986655
Website:
www.apacoe.com.tw
Backward Clipper
VOLTAGE
CLIPPER
3.3 V/5V
---
3.3 V/5V
Backward
3.3 V/5V
Forward
3.3 V/5V
---
3.3 V/5V
Backward
3.3 V/5V
Forward
TEMPERATURE
0 ° C to 70 ° C
0 ° C to 70 ° C
0 ° C to 70 ° C
0 ° C to 70 ° C
0 ° C to 70 ° C
0 ° C to 70 ° C
Advertisement
Related Manuals for APAC Opto Electronics LS32-CAU-PC-N Series
Summary of Contents for APAC Opto Electronics LS32-CAU-PC-N Series
- Page 1 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet No Shield Forward Clipper Backward Clipper Features Compliant with IEEE 802.3z Gigabit Ethernet standard Compliant with Fiber Channel 100-SM-LC-L standard Industry standard 1×9 footprint SC duplex connector Single power supply 3.3V/5V...
- Page 2 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Absolute Maximum Ratings PARAMETER SYMBOL UNITS NOTE ° C −40 Storage Temperature −0.5 Supply Voltage −0.5 Input Voltage Output Current Operating Current °...
- Page 3 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Transmitter Electro-optical Characteristics = 0 ° C to 70 ° C Vcc = 3.1 V to 5.25 V, T PARAMETER SYMBOL TYP.
- Page 4 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Receiver electro-optical characteristics = 0 ° C to 70 ° C Vcc = 3.1 V to 5.25 V, T PARAMETER SYMBOL TYP.
- Page 5 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Block Diagram of Transceiver ELECTRICAL SUBASSEMBLY PIN PHOTODIODE DATA RRE- POST DATA/ AMPLIFIER AMPLIFIER IC SIGNAL DUPLEX SC OPTICAL DETECT RECEPTACLE SUB- ASSEMBLIES...
-
Page 6: Connection Diagram
RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Connection Diagram Pin-Out 1. RX GND 2. RD+ − 3. RD 4. SD TOP VIEW 5. V 6. V − 7. -
Page 7: Rohs Compliant
RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Recommended Circuit Schematic DC/DC Coupling TX GND Laser ECL/PECL TD− TD− Driver DRIVER Serializer/ RiteKom Transceiver Deserializer Signal detect SD to upper level LIMITING Pre- RD−... - Page 8 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet In order to get proper functionality, a recommended circuit is provided in above recommended circuit schematic. When designing the circuit interface, there are a few fundamental guidelines to follow. (1) The differential data lines should be treated as 50 Ω...
- Page 9 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Recommended Board Layout Hole Pattern Unit : mm(inches) This transceiver is compatible with industry standard wave or hand solder processes. After wash process, all moisture must be completely remove from the module.
- Page 10 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Drawing Dimensions- No Shield 9.50±0.15 0.40±0.10 25.40 20.32 2.54±0.10 0.45±0.10 20.32 2.00±0.10 12.70±0.15 1.30±0.15 ALL DIMENSIONS ARE±0.20mm UNLESS OTHERWISE SPECIFIED Unit: mm Page 10 of 14 Headquarters :...
- Page 11 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Drawing Dimensions- Forward Shield 0.4±0.1 9.60 25.7±0.25 20.32 2.54±0.1 20.32 29.60±0.40 25.40±0.25 9.50 1.30±0.15 12.70±0.15 ALL DIMENSIONS ARE±0.2mm UNLESS OTHERWISE SPECIFIED Unit: mm Page 11 of 14 Headquarters :...
- Page 12 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Drawing Dimensions- Backward Shield 25.70±0.25 20.32 0.40 9.60 0.45±0.10 2.54±0.10 20.32 9.50 29.50±0.40 25.40±0.25 12.70±0.15 1.30±0.15 ALL DIMENSIONS ARE±0.20mm UNLESS OTHERWISE SPECIFIED Unit: mm Page 12 of 14 Headquarters :...
- Page 13 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Optical Receptacle Cleaning Recommendations All fiber stubs inside the receptacle portions were cleaned before shipment. In the event of contamination of the optical ports, the recommended cleaning process is the use of forced nitrogen.
- Page 14 RoHS compliant CWDM 1310 nm Single-mode Transceiver (24dB margin) 1×9, SC Duplex Connector, 3.3 V/5V 1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet Eye Safety Mark The LS3 series Single-mode transceiver is a class 1 laser product. It complies with EN 60825-1 and FDA 21 CFR Required Mark 1040.10 and 1040.11.
