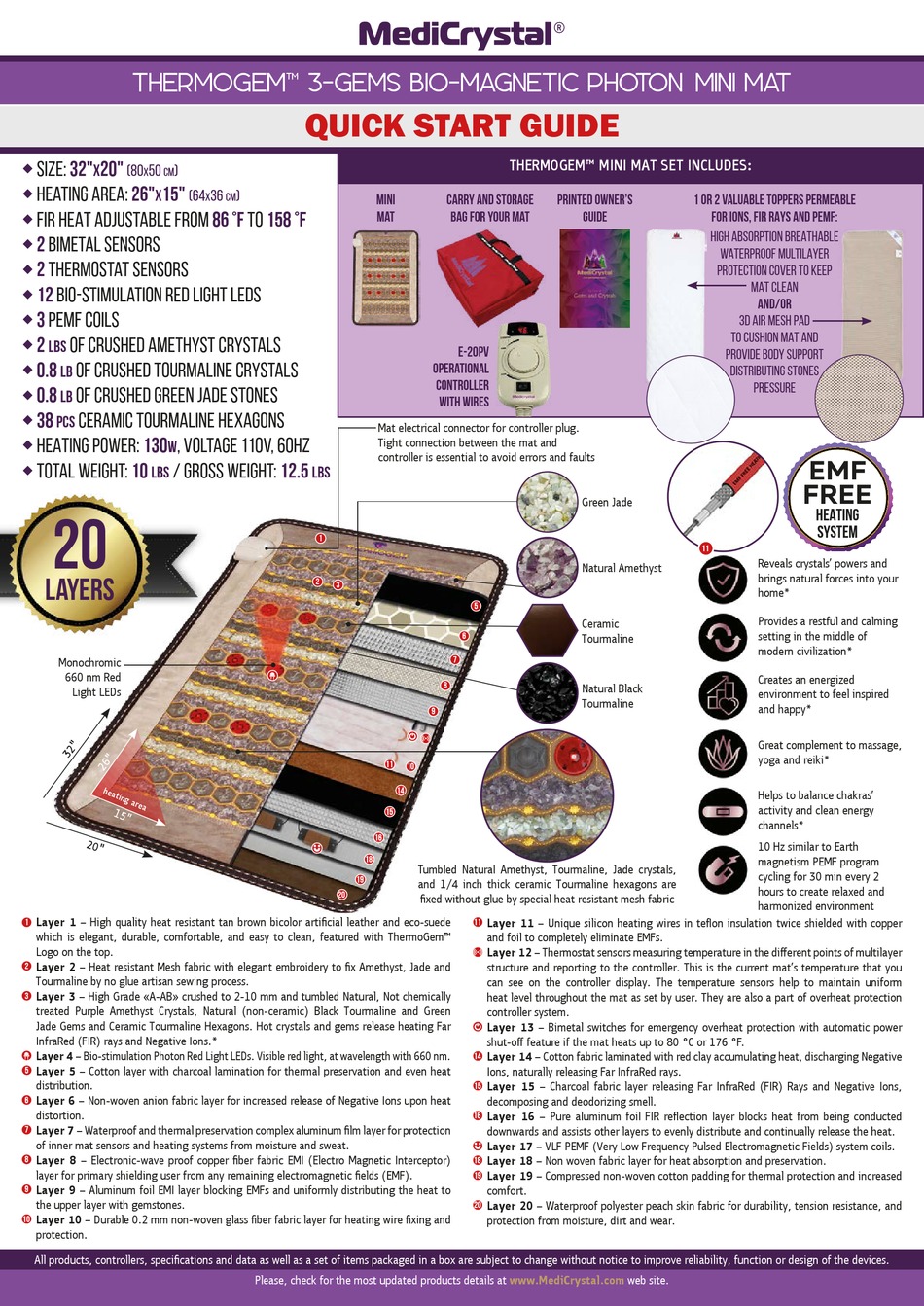

MediCrystal THERMOGEM 3-GEMS BIO-MAGNETIC PHOTON MINI MAT Quick Start Manual

THERMOGEM™ 3-GEMS BIO-MAGNETIC PHOTON MINI MAT
size: 32" 20"
x (80 50 )

x cm
26" 15"
heating area:
x (64

FIR HEAT ADJUSTABLE FROM

2 BIMETAL SENSORs

2 thermostat SENSORs

12 bio-Stimulation Red Light LEDs

3 PEMF COILS

2
of crushed Amethyst Crystals
lbs

0.8 of crushed tourmaline Crystals
lb

0.8 of crushed green jade stones
lb

38 ceramic tourmaline hexagons
pcs

HEATING POWER: 130 , voltage 110v, 60hz
w

Total weight: 10 / gross weight:
lbs

20
layers
Monochromic
660 nm Red
Light LEDs
Layer 1 – High quality heat resistant tan brown bicolor artificial leather and eco-suede
1
which is elegant, durable, comfortable, and easy to clean, featured with ThermoGem™
Logo on the top.
Layer 2 – Heat resistant Mesh fabric with elegant embroidery to fix Amethyst, Jade and
2
Tourmaline by no glue artisan sewing process.
Layer 3 – High Grade «A-AB» crushed to 2-10 mm and tumbled Natural, Not chemically
3
treated Purple Amethyst Crystals, Natural (non-ceramic) Black Tourmaline and Green
Jade Gems and Ceramic Tourmaline Hexagons. Hot crystals and gems release heating Far
InfraRed (FIR) rays and Negative Ions.*
Layer 4 – Bio-stimulation Photon Red Light LEDs. Visible red light, at wavelength with 660 nm.
Layer 5 – Cotton layer with charcoal lamination for thermal preservation and even heat
5
distribution.
Layer 6 – Non-woven anion fabric layer for increased release of Negative Ions upon heat
6
distortion.
Layer 7 – Waterproof and thermal preservation complex aluminum film layer for protection
7
of inner mat sensors and heating systems from moisture and sweat.
Layer 8 – Electronic-wave proof copper fiber fabric EMI (Electro Magnetic Interceptor)
8
layer for primary shielding user from any remaining electromagnetic fields (EMF).
Layer 9 – Aluminum foil EMI layer blocking EMFs and uniformly distributing the heat to
9
the upper layer with gemstones.
Layer 10 – Durable 0.2 mm non-woven glass fiber fabric layer for heating wire fixing and
10
protection.
All products, controllers, specifications and data as well as a set of items packaged in a box are subject to change without notice to improve reliability, function or design of the devices.
QUICK START GUIDE
36 )
x cm
mini
86 °F TO 158 °F
mat
Mat electrical connector for controller plug.
Tight connection between the mat and
controller is essential to avoid errors and faults
12.5
lbs
1
2
3
16
18
19
20
Please, check for the most updated products details at
THERMOGEM™ MINI MAT SET INCLUDES:
CARRY AND STORAGE printed owner's
BAG for your mat
E-20PV
operational
CONTROLLER
with wires
5
6
7
8
9
11
10
14
15
Tumbled Natural Amethyst, Tourmaline, Jade crystals,
and 1/4 inch thick ceramic Tourmaline hexagons are
fixed without glue by special heat resistant mesh fabric
Layer 11 – Unique silicon heating wires in teflon insulation twice shielded with copper
11
and foil to completely eliminate EMFs.
Layer 12 – Thermostat sensors measuring temperature in the different points of multilayer
structure and reporting to the controller. This is the current mat's temperature that you
can see on the controller display. The temperature sensors help to maintain uniform
heat level throughout the mat as set by user. They are also a part of overheat protection
controller system.
Layer 13 – Bimetal switches for emergency overheat protection with automatic power
shut-off feature if the mat heats up to 80 °C or 176 °F.
Layer 14 – Cotton fabric laminated with red clay accumulating heat, discharging Negative
14
Ions, naturally releasing Far InfraRed rays.
Layer 15 – Charcoal fabric layer releasing Far InfraRed (FIR) Rays and Negative Ions,
15
decomposing and deodorizing smell.
Layer 16 – Pure aluminum foil FIR reflection layer blocks heat from being conducted
16
downwards and assists other layers to evenly distribute and continually release the heat.
Layer 17 – VLF PEMF (Very Low Frequency Pulsed Electromagnetic Fields) system coils.
Layer 18 – Non woven fabric layer for heat absorption and preservation.
18
Layer 19 – Compressed non-woven cotton padding for thermal protection and increased
19
comfort.
Layer 20 – Waterproof polyester peach skin fabric for durability, tension resistance, and
20
protection from moisture, dirt and wear.
www.MediCrystal.com
1 or 2 valuable toppers permeable
guide for IONS, FIR RAYS and pemf:
HIGH ABSORPTION BREATHABLE
WATERPROOF MULTILAYER
PROTECTION COVER TO KEEP
MAT CLEAN
3D AIR MESH PAD
TO CUSHION MAT AND
PROVIDE BODY SUPPORT
DISTRIBUTING STONES
PRESSURE
Green Jade
11
Natural Amethyst
Ceramic
Tourmaline
Natural Black
Tourmaline
web site.
and/or
EMF
FREE
HEATING
SYSTEM
Reveals crystals' powers and
brings natural forces into your
home*
Provides a restful and calming
setting in the middle of
modern civilization*
Creates an energized
environment to feel inspired
and happy*
Great complement to massage,
yoga and reiki*
Helps to balance chakras'
activity and clean energy
channels*
10 Hz similar to Earth
magnetism PEMF program
cycling for 30 min every 2
hours to create relaxed and
harmonized environment
