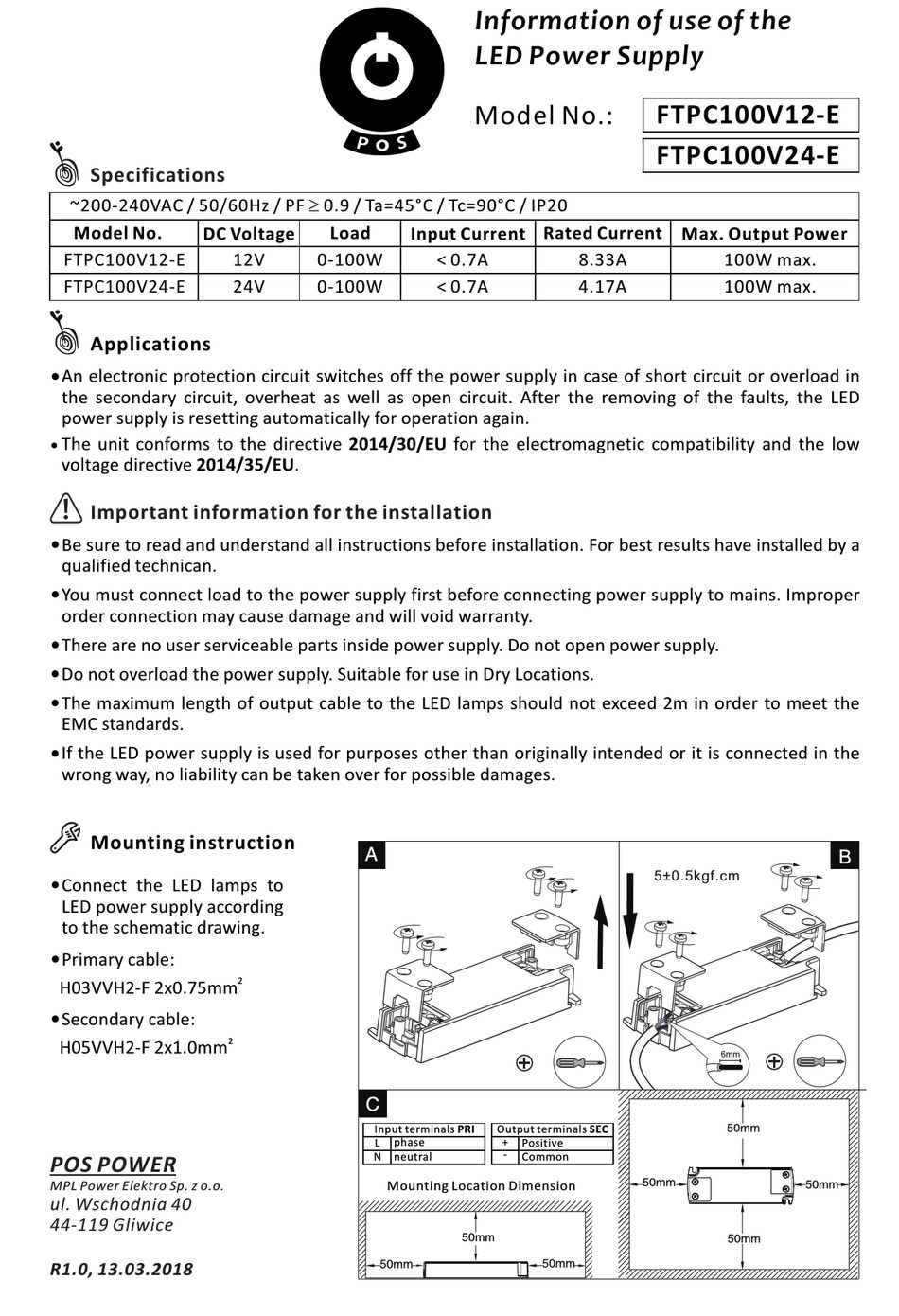

POS FTPC100V12-E Quick Start Manual

Specifications

~200-240VAC / 50/60Hz / PF ł 0.9 / Ta=45°C / Tc=90°C / IP20
Model No.
DC Voltage
FTPC100V12-E
FTPC100V24-E

Applications

ź
An electronic protection circuit switches off the power supply in case of short circuit or overload in
the secondary circuit, overheat as well as open circuit. After the removing of the faults, the LED
power supply is resetting automatically for operation again.
The unit conforms to the directive 2014/30/EU for the electromagnetic compatibility and the low
ź
voltage directive 2014/35/EU.

Important information for the installation

ź
Be sure to read and understand all instructions before installation. For best results have installed by a
qualified technican.
ź
You must connect load to the power supply first before connecting power supply to mains. Improper
order connection may cause damage and will void warranty.
ź
There are no user serviceable parts inside power supply. Do not open power supply.
ź
Do not overload the power supply. Suitable for use in Dry Locations.
ź
The maximum length of output cable to the LED lamps should not exceed 2m in order to meet the
EMC standards.
ź
If the LED power supply is used for purposes other than originally intended or it is connected in the
wrong way, no liability can be taken over for possible damages.

Mounting instruction

ź
Connect the LED lamps to
LED power supply according
to the schematic drawing.
ź
Primary cable:
H03VVH2-F 2x0.75mm
ź
Secondary cable:
H05VVH2-F 2x1.0mm
POS POWER
MPL Power Elektro Sp. z o.o.
ul. Wschodnia 40
44-119 Gliwice
R1.0, 13.03.2018
Load
12V 0-100W
24V 0-100W
2
2
Input terminals PRI
phase
L
N neutral
Mounting Location Dimension
Information of use of the
LED Power Supply
Model No.:
Rated Current
Input Current
< 0.7A 8.33A
< 0.7A 4.17A
Output terminals SEC
+
Positive
-
Common
FTPC100V12-E
FTPC100V24-E
Max. Output Power
100W max.
100W max.
5±0.5kgf.cm
