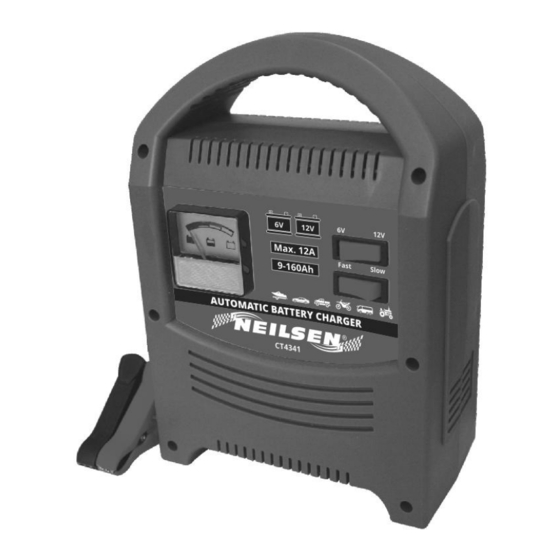

AUTOMATIC BATTERY CHARGER
Please Note: Please read and understand these instructions thoroughly before any
use of the Battery Charger and retain for future reference.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.UNITED KINGDOM
CT4341
ORIGINAL INSTRUCTIONS
Ref no. BCJ-12AN
Advertisement
Table of Contents
Summary of Contents for Cannon Tools Neilsen CT4341
- Page 1 Ref no. BCJ-12AN ORIGINAL INSTRUCTIONS Please Note: Please read and understand these instructions thoroughly before any use of the Battery Charger and retain for future reference. Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.UNITED KINGDOM...
- Page 2 EC DECLARATION OF CONFORMITY We, CANNON TOOLS LTD 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K Declare that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
- Page 3 1. SPECIFICATIONS AUTOMATIC BATTERY CHARGER Model: CT4341 Voltage Input: AC 230V/50Hz Rated Input Power: 158W Voltage Output: DC 6V/12V Selectable Max. Current: 12A Charging Current: 6V-8.4A Fast / 5.2A Slow 12V-8.4A Fast / 6A Slow Battery Capacity: 6V - 40-160Ah Fast / 9-36Ah Slow 12V - 40-160Ah Fast / 15-60Ah Slow Fuse: 15A 2.
- Page 4 switched to charging end within 50 hours, this is an indication of an error. Manually disconnect the charger. ♦ Batteries consume water during use and charging. For batteries where water can be added, the water level should be checked regularly. If the water level is low, add distilled water.
- Page 5 3. TECHNICAL DESCRIPTION 1. METER 2. 6V/12V Selection switch 3. Fast/ Slow Mode Selection switch 4. Handle 5. Negative (-) Black battery clamp 6. Positive (+) Red battery clamp 7. BS Plug...
- Page 6 4. UNPACKING AND CHECKING Carefully remove the charger from the packaging and examine it for any sign of damage that may have happened during shipping. Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the seller and do not attempt to use the charger.
- Page 7 7. DISPOSAL At the end of the machine's working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: Do not dispose of this tool with domestic waste.
- Page 8 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
