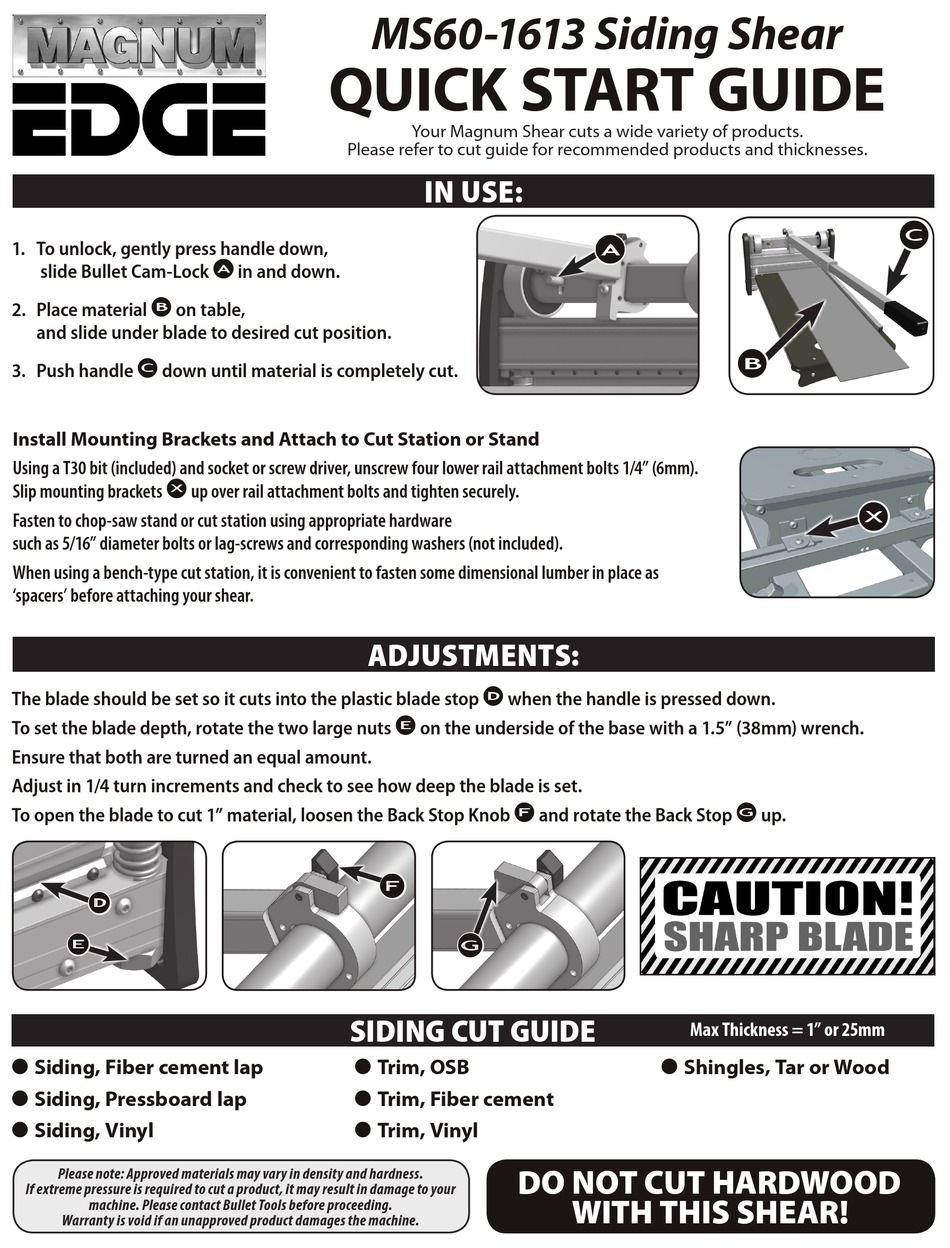

Bullet tools MAGNUM EDGE MS60-1613 Quick Start Manual

1. To unlock, gently press handle down,
slide Bullet Cam-Lock
b
2. Place material on table,
and slide under blade to desired cut position.
c
3. Push handle down until material is completely cut.
Install Mounting Brackets and Attach to Cut Station or Stand
Using a T30 bit (included) and socket or screw driver, unscrew four lower rail attachment bolts 1/4" (6mm).
x
Slip mounting brackets
Fasten to chop-saw stand or cut station using appropriate hardware
such as 5/16" diameter bolts or lag-screws and corresponding washers (not included).
When using a bench-type cut station, it is convenient to fasten some dimensional lumber in place as
'spacers' before attaching your shear.
The blade should be set so it cuts into the plastic blade stop
To set the blade depth, rotate the two large nuts
Ensure that both are turned an equal amount.
Adjust in 1/4 turn increments and check to see how deep the blade is set.
To open the blade to cut 1" material, loosen the Back Stop Knob
d
e
● Siding, Fiber cement lap
● Siding, Pressboard lap
● Siding, Vinyl
Please note: Approved materials may vary in density and hardness.
If extreme pressure is required to cut a product, it may result in damage to your
machine. Please contact Bullet Tools before proceeding.
Warranty is void if an unapproved product damages the machine.
QUICK START GUIDE
Please refer to cut guide for recommended products and thicknesses.
a
in and down.
up over rail attachment bolts and tighten securely.

ADJUSTMENTS:

SIDING CUT GUIDE

● Trim, OSB
● Trim, Fiber cement
● Trim, Vinyl
MS60-1613 Siding Shear
Your Magnum Shear cuts a wide variety of products.

IN USE:

d
when the handle is pressed down.
e
on the underside of the base with a 1.5" (38mm) wrench.
f
and rotate the Back Stop
f
g
Do Not Cut HARDWOOD
a
b
g
Max Thickness = 1" or 25mm
● Shingles, Tar or Wood
WITH THIS SHEAR!
c
up.
