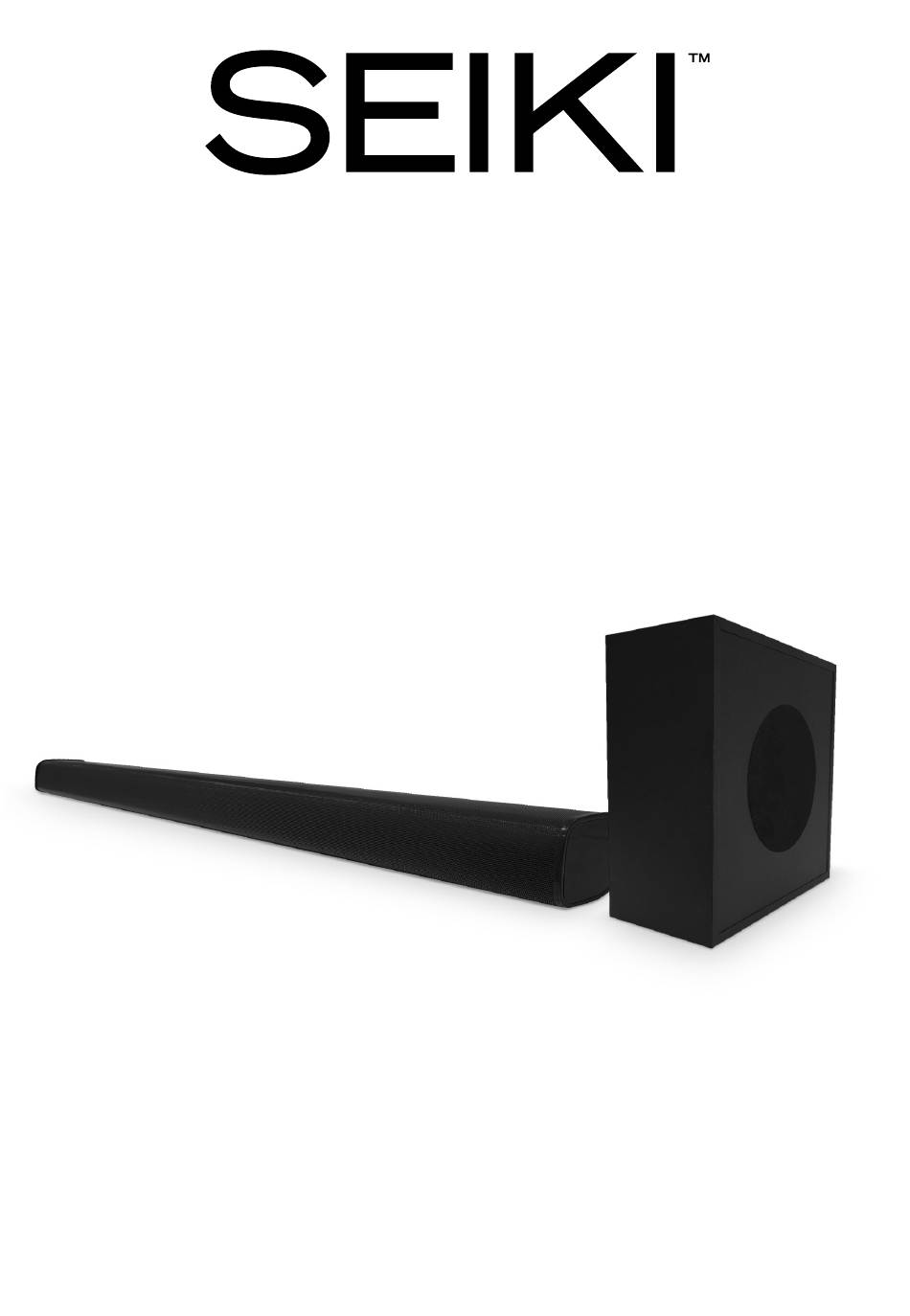

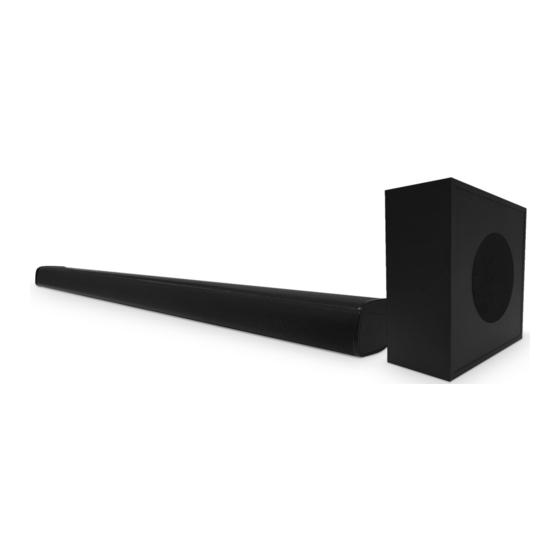

- Page 1 2.1CH SOUNDBAR WITH WIRED SUBWOOFER SC210SBWH INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Remote Control Product Overview Controls and Connections General Operations Pairing your soundbar Troubleshooting Specifications Last Page... -
Page 4: General Safety
GENERAL SAFETY INSTRUCTIONS Read this manual thoroughly before you start using the Soundbar. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) Please follow instruction when installing this product in accordance with the instruction manual. This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling when mounted and can cause injury, particularly to children if it positioned incorrectly. •...
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) • If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock. • When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power supply from the wall socket.
-
Page 7: Remote Control
REMOTE CONTROL • The remote control has a reception range of approximately 5m. Be sure to point the remote control directly at the sensor at the front of the soundbar. • Make sure there are no obstacles in the way. This will intefere with the sensor strength. •... - Page 8 REMOTE CONTROL (Cont.) CAUTION! Battery Precautions • Do not use other batteries other than the one specified in this manual. • Danger of explosion if incorrectly replaced by a battery other than the one specified. • Do not store battery with other metallic objects, doing so can cause the battery to short-circuit, leak or explode.
-
Page 9: Product Overview
PRODUCT OVERVIEW SOUNDBAR FRONT VIEW 1. LED INDICATORS 4. BLUETOOTH Show the current status. Blue indicator. 2. REMOTE CONTROL SENSOR 5. COAXIAL/OPTICAL Receive signal from the remote Green indicator (coaxial: solid, optical: blinking). 6. HDMI control. 3. STANDBY/SUBWOOFER Amber indicator. Red indicator 7. - Page 10 PRODUCT OVERVIEW (CONT.) SOUNDBAR REAR VIEW 1. USB INPUT (MEDIA PLAYBACK) 2. AUX INPUT - 3.5MM JACK 3. OPTICAL INPUT 4. HDMI (ARC) 5. POWER INPUT 6. SUBWOOFER INPUT...
-
Page 11: Controls And Connections
CONTROLS AND CONNECTIONS HDMI Connect a HDMI cable (not supplied) from your TV HDMI/ARC port to the HDMI socket on the soundbar. Then change the mode on your soundbar to HDMI Mode. Note: To enable the Audio Return Channel (ARC) feature, the HDMI must be connected to an ARC enabled HDMI on your TV. - Page 12 CONTROLS AND CONNECTIONS (Cont.) AUDIO RETURN CHANNEL (ARC) / HDMI ARC function is used for connecting the Soundbar to the TV with a HDMI cable through an audio return channel. This means you can listen to the TV sounds through your Soundbar via HDMI cable.
-
Page 13: General Operations
GENERAL OPERATION During On mode, press SOURCE on the unit repeatedly to select between AUX, BT (Bluetooth ®), COAXIAL, OPTICAL, HDMI OUT (ARC) modes. Operate your audio de- vice directly for playback features. When input signal cannot be decoded (e.g. DTS Studio Sound), the unit is mute and the mode indicator rapidly blink. -
Page 14: Pairing Your Soundbar
2. Now that the unit has entered pairing mode, on your Bluetooth device select to search for devices. 3. Select “SC210SBWH” in the list of devices that appear. The Bluetooth indicator light will stop flashing and will stay completely illuminated when there is a successful connection. -
Page 15: Troubleshooting
TROUBLESHOOTING Never try to repair the soundbar yourself. If you encounter any problems when using this unit, check the following points before seeking for service. Problem Solution No Power • Ensure that the Switching Adaptor is connected to power socket outlet. •... -
Page 16: Specifications
SPECIFICATIONS Power Supply DC 19V 2.5A Output Power Total: 50W RMS Tweeter 0.65” x 2 Driver 4” Subwoofer Soundbar: 50Hz to 20kHz Frequency Response Subwoofer: -10dB Amplifier Soundbar: 5 (RMS) x 4, @<3% THD Sound Pressure Level 50dB Soundbar: 950 (w) x 52 (h) x 63 (d) mm Dimensions Subwoofer: 120(w) x 270 (h) x 270 (d) mm The Bluetooth®...
