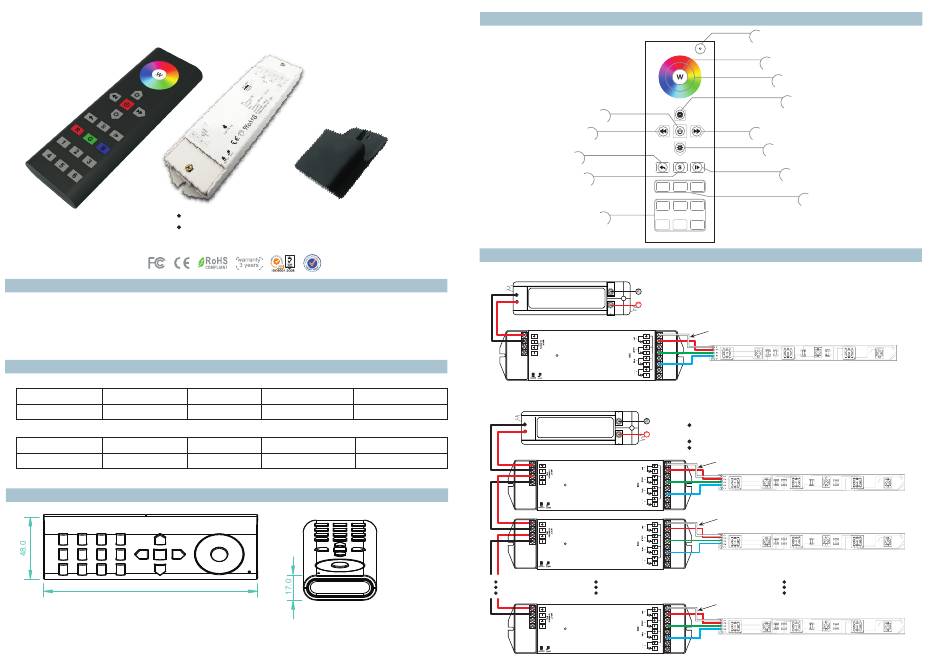

PowerLed RGBRF-RC1 Quick Start Manual

RF wireless LED remote controller

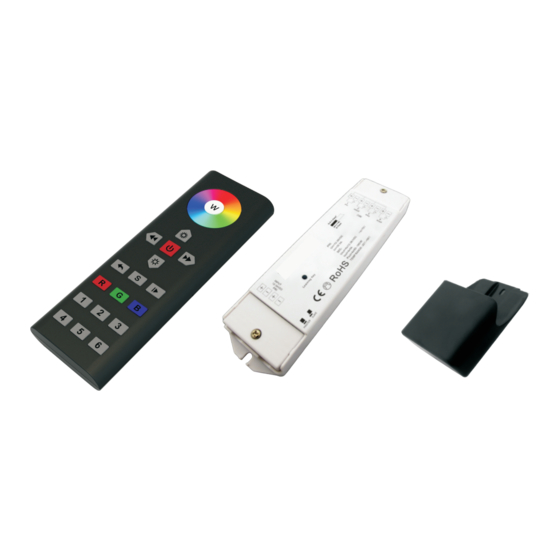

Model:RGBRF-RC1 with RGBRF-4x5A
Six zones/areas
Press-button RGBW controller

Product introduction

RGBRF-RC1 remote controller has 6 different zones. It can achieve Red/Green/Blue/White colour directly.
The remote controller can save up to 6 colours or 6 modes via the corresponding buttons (1-6 positions) for each zone.
You can choose any colour using the colour wheel. You can also set the system as RGB 3-channel output or
RGBW 4-channel output.

Parameter

Remote
Operation Voltage
Part No.
RGBRF-RC1 3.6VDC
Receiver
Iuput Voltage
Part No.
RGBRF-4x5A 12-36VDC
Product Size
140.0
Operation DIMENSIONS
Frequency ø/h (mm)
load 3pcs 7 AAA (1.5V)
434MHz/868MHz 48x140x16
Current Output
4x5A Constant voltage
4x(60-180)W

Brief introduction of buttons

ON/OFF of all zones
Speed down under dynamic mode
Return previous status button
Save button: save up to 6 colors
or modes into 6 positions
(6-zone buttons)
6 zones: each zone can save
6 color or modes

Wiring diagram

1) Receiver Connection Diagram for Single Unit
Power Supply
12-36VDC
Learning Key
Remarks 2) Receiver Connection Diagram for Multiple Units
batteries
Power Supply
12-36VDC
Remarks
Learning Key
Learning Key
Learning Key
R G B
1 2 3
4 5 6
110V-230VAC
White (positive)
RGBRF-4x5A
LED CONTROLLER
Note:
One receiver can work with 1-8pcs RGBRF-4x5A or 1pc RGBRF-4x5A
110V-230VAC
and up to 7pcs PRDIM
On e RGBRF-RC1 can control multiple receivers
The power supply chosen must be 20% higher than the actual load
White (positive)
RGBRF-4x5A
LED CONTROLLER
White (positive)
RGBRF-4x5A
LED CONTROLLER
White (positive)
RGBRF-4x5A
LED CONTROLLER
Indicator: indicate the state of
remote control
White channel: the 4th channel
Touch color wheel
Brightness: dim up
Speed up under dynamic mode
Brightness: dim down
Pause/Run button: 10 modes
built-in
R/G/B channels
