MODEL

DP430A

FOR YOUR SAFETY:

READ ALL INSTRUCTIONS CAREFULLY

Table of Contents

Need help?

Do you have a question about the DP430A and is the answer not in the manual?

Questions and answers

Summary of Contents for WoodFast DP430A

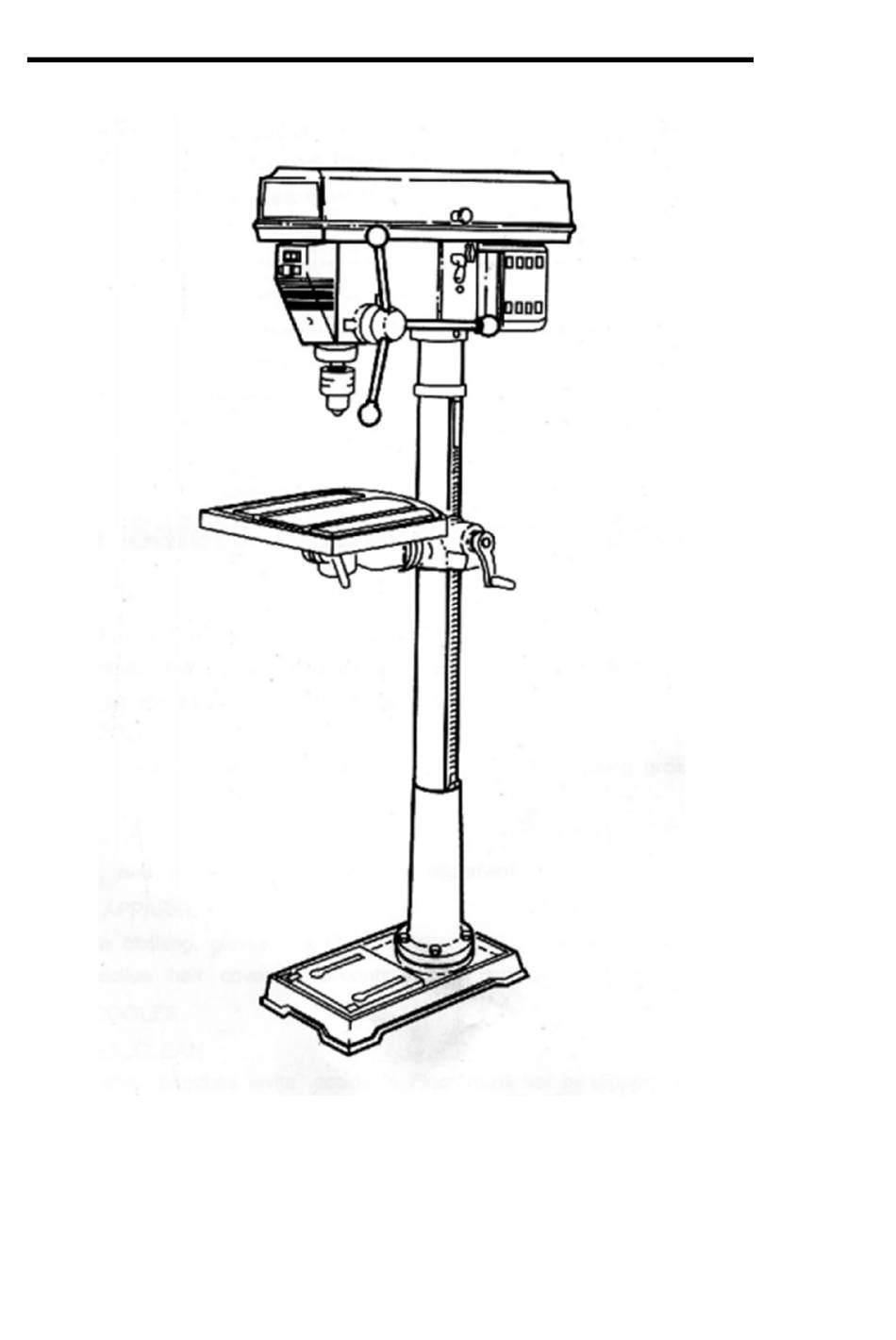

Page 1 MODEL DP430A FOR YOUR SAFETY: READ ALL INSTRUCTIONS CAREFULLY...
Page 2: Table Of Contents
Table of Contents General safety instructions for Power Tools================ Main specification============================ Unpacking and checking contents==================== List of loose parts in the box and bags==================. Getting to know your drill press=====================.. Assembly===============================.. Lubrication=============================== Maintenance============================== Wire diagram============================== Trouble shooting============================. Repair parts==============================.. General safety instructions for Power Tools 1.KNOW YOUR POWER TOOL Read and understand the ower's manual and labels affixed to the tool.Learn its application and limitations as well as the specific potential hazards peculiar to this tool.
Page 3: Main Specification
Main Specification Drill Capacity 25 mm Chuck Capacity 16 mm Sewing 430 mm Spindle Taper Spindle Travel 80 mm Column Diameter 80 mm Motor 230V/1ph/850W Rack & Pinion Base Size 485*290 mm Table Size 356*356 mm Overall Height 1050mm Range of spindle speeds 16 speeds Motor Speed Spindle Speeds (min...
Page 4: List Of Loose Parts In The Box And Bags
List of Loose Parts in the box and bags...
Page 5: Getting To Know Your Drill Press
Getting to know your drill press - 4-...
Page 6: Assembly
Assembly Refer to the figure install all parts correctly, tighten the screw and bolts securelly. 1 Base 2. Column/w Support Asm 3 M10*1.5-40Screw (4) 4 Head Asm 5 Table 6 Feed Handle 7 Clamp-Column Lock 8 Crank - 5-...
Page 7: Lubrication
Lubrication All of the BALL BEARING are packed with grease at the factory.They require no further lubrication. Periodically lubricate the table elevation machanism,the SPLINES (grooves) in the spindle,and the RACK (teeth of the quill),see "Getting to know your drill press." Maintenance Frequently blow out any dust that may accumulate inside the motor.
Page 8: Trouble Shooting
Trouble Shooting TROUBLE PROBABALE CAUSE REMEDY 1.Incorrect belt tension. 1.Adjust tension. 2.Dry Spindle. 2.Lubricate spindle. Noisy Operation 3.Checking tightness of retaining nut on 3.Loose spindle pulley pulley,and tighten if necessary. 4.Loose motor pulley 4.Tighten setscrews in pulleys. 1.Incorrect speed. 1.Change speed. 2.Chips not coming out of hole.
Page 9: Repair Parts
Repair Parts FIGURE1 FIGURE1 PARTS LIST Description Description Screw-Hex Soc.Set 11 Support Column M6*1.0-10 12 Screw-Hex HD M10*1.5-40 Collar-Rack 13 Screw-Hex Soc.Set Gear-Helical M10*1.5-12 Crank 14 Tube Column Table 15 Rack Clamp-Table 16 Clamp-Column Screw-Hex HD 17 Support Table w/Indicator M16*20-35 18 Worm-Elevation Arm-Table w/Scale...
Page 10 Repair Parts FIGURE2 FIGURE2 PARTS LIST Description Nut-Lock Ring-Locking Washer Bearing-Ball 17mm Washer-Rubber Tube-Quill Key-Chuck Chuck Arbor Key-Drift Spindle Bearing-Ball 25mm...
Page 11 Repair Parts FIGURE3 FIGURE3 PARTS LIST Description Description Ring-Retaining 10 Screw-Set M10*1.5-12 Bearing-Ball 25mm 11 Pulley-Motor Spacer-Bearing 12 Knob Belt-"V"1/2*29 13 Screw-Pan HD M5*0.8-12 Nut-Pulley 14 Pivot-Ldler Pulley-Spindle 15 Pully-Center Insert-Pulley 16 Bearing-Ball 15mm Guard-Pulley w/Labels 17 Belt-"V"1/2*27 Screw-RD HD Washer 18 Washer Foam M6*1.0-16 19 Lock Washer Ext.M6...
Page 13 FIGURE4 PARTS LIST Description Description knob-Motor Adjusting Retainer-Spring Screw-Socket Set M10*1.5-12 Spring-Torsion Handle-Belt Tension Cap-Spring Pin-Stop Nut-Hex M12*1.5-8 Ring-Depth Stop W/Scale Head w/Pointer and Trim Lock-Depth Screw Socket-Bulb Asm Tie-Wire Guide Scale Cord-Power w/Plug Knob Connector-Wire Screw-Pan HD M6*10*12 Lock-Washer-Ext M5 Clamp-Cord Screw-Pan HD M5*0.8-8 Support-Motor Bracket...
