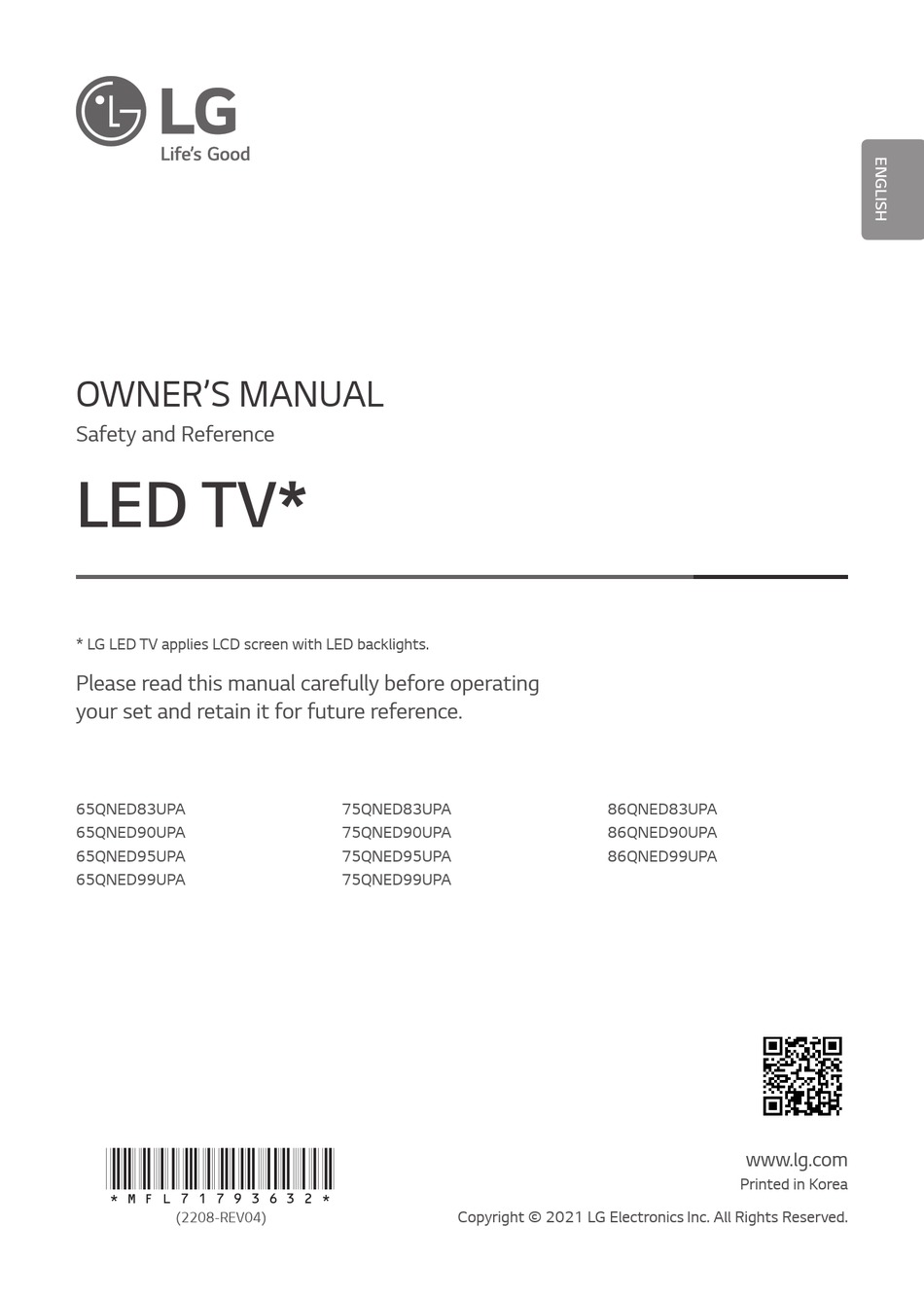

OWNER'S MANUAL
Safety and Reference
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating
your set and retain it for future reference.
65QNED83UPA
65QNED90UPA
65QNED95UPA
65QNED99UPA
*MFL71793632*
(2208-REV04)
75QNED83UPA
75QNED90UPA
75QNED95UPA
75QNED99UPA
Copyright © 2021 LG Electronics Inc. All Rights Reserved.
86QNED83UPA
86QNED90UPA
86QNED99UPA
www.lg.com
Printed in Korea
Advertisement
Table of Contents
Related Manuals for LG 65QNED83UPA
Summary of Contents for LG 65QNED83UPA
- Page 1 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 65QNED83UPA 75QNED83UPA 86QNED83UPA 65QNED90UPA 75QNED90UPA 86QNED90UPA 65QNED95UPA 75QNED95UPA...
-
Page 2: Important Safety Instruction
By using this product, you agree that all disputes between you and LG arising out of or relating in any way to this product (including but not limited to warranty disputes) shall be resolved exclusively through binding arbitration on an individual basis. The terms of the arbitration agreement (including details on the procedure for resolving disputes) is available at www.lg.com/us/arbitration (USA) or www.lg.com/ca_en/arbitration... -
Page 3: Before Reading This Manual
Title Warning! Safety instructions Using Remote Control - Using Magic Remote Control Preparing Connections - Lifting and moving the TV - Mounting on the Table Troubleshooting - Mounting to the Wall - Antenna/Cable Specifications Starting TV - Open Source Software Notice Information - Turning on the TV... - Page 4 Warning! Safety instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 5 • Use only an authorized attachments / accessories approved grounding of the mast and supporting structure, grounding by LG Electronics. Otherwise, this may result in fire, electric of the lead-in wire to an antenna discharge unit, size of shock, malfunction, or product damage.
- Page 6 • Batteries - Store the accessories (battery, etc.) in a safe location out of the reach of children. - Do not short circuit, disassemble, or allow the batteries to overheat. Do not dispose of batteries in a fire. Batteries should not be exposed to excessive heat. - Caution: Risk of fire or explosion if the battery is replaced by an incorrect type.
-
Page 7: Lifting And Moving The Tv
Preparing Lifting and moving the TV When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. • It is recommended to move the TV in the box or packing material that the TV originally came in. •... -
Page 8: Mounting On The Table
Mounting on the Table 1 Lift and tilt the TV into its upright position on a table. • Leave a minimum of 10 cm (4 inches) space from the wall for proper ventilation. 10 cm 2 Connect the power cord to a wall outlet. (4 inches) (Depending upon model) •... -
Page 9: Mounting To The Wall
We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 10: Wall Mounting Bracket
Wall Mounting Bracket (Depending upon model) Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. 65QNED83* 75QNED83* 86QNED83* 65QNED90* 75QNED90* Model Model 86QNED90* 65QNED95* 75QNED95*... - Page 11 Antenna/Cable Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and an RF cable is optional. • Make sure not to bend the copper wire of the RF cable. Copper wire •...
-
Page 12: Turning On The Tv
Starting TV Turning on the TV You can simply operate the TV functions, using the button. Using button Power On (Press) 1) All running apps will close. Power Off (Press and Hold) 2) You can access and adjust the menu by pressing the button when TV is on. Menu Control (Press 3) You can use the function when you access menu control. -
Page 13: Inserting The Battery
Inserting the battery When the message [Magic Remote battery is low. Please change the battery.] is displayed, replace the batteries. To install batteries, open the battery cover, replace batteries (1.5 V AA) matching the ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. - Page 14 (NFC) on the remote control. The required distance for NFC tagging is about 1 cm (0.39 inches). 3 Follow the instructions to install the LG ThinQ app on your smart device. 4 Retagging the smart device to the remote control allows you to conveniently access various features on the connected TV through the LG ThinQ app.
-
Page 15: Using Remote Control
Using Remote Control Using Magic Remote Control (Depending upon model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor. Number buttons Enters numbers. - Page 16 Connections You can connect various external devices to the TV. For more information on external device’s connection, refer to the manual provided with each device. HDMI • When connecting the HDMI cable, the product and external devices should be turned off and unplugged. •...
-
Page 17: External Devices
• The TV may be capable of operating without a set-top-box from a multichannel video programming distributor (MVPD). Remote To obtain the RS-232C external control setup information, please visit www.lg.com. Download and read the manual, (Depending upon model). RS-232C setup •... -
Page 18: Troubleshooting
Troubleshooting Cannot control the • Check if anything such as tape has been placed over the receiver. TV with the remote • Check if there is any obstacle between the product and the remote control. control. • Replace the batteries with new fresh ones. No image display and •... -
Page 19: Specifications
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). •... - Page 20 (Except for QNED99*) Wireless module(LGSBWAC95)Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 18.5 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz 18 dBm Bluetooth Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 9 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency.
-
Page 21: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. - Page 22 Regulatory...
- Page 24 NOTE TO CABLE/TV INSTALLER (For USA and Canada) This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
-
Page 27: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER TECHNOLOGY INDUSTRY CARES Manufacturers, retailers and the rest of the consumer technology industry are committed to making products safe and enjoyable. As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 28 Building, Englewood Cliffs, NJ 07632 LG Customer Information Center E-mail lg.environmental@lge.com For inquires or comments, visit www.lg.com or call; The model and serial number of the product are located 1-800-243-0000 USA, Consumer User on the back and on one side of the product. Record them...
-
Page 29: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com P/NO : MFL71445401 (1901-REV00) -
Page 30: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 31 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial(RS-232C) RS-232C IN converter which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
-
Page 32: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... - Page 33 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
- Page 34 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 35 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 36 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 37 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 38 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 39 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) 2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 40 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
