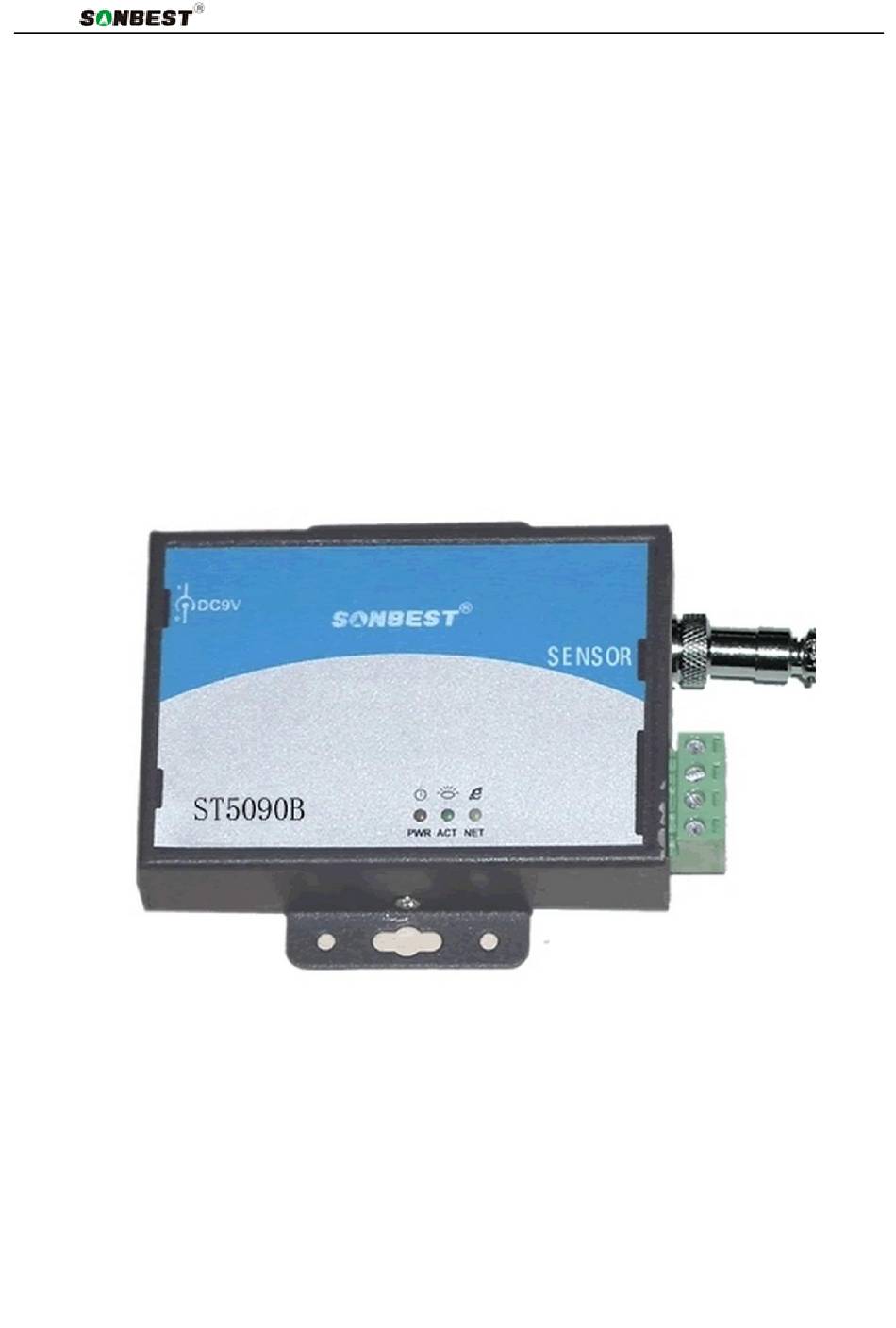

SM5090T Us er Ma nual

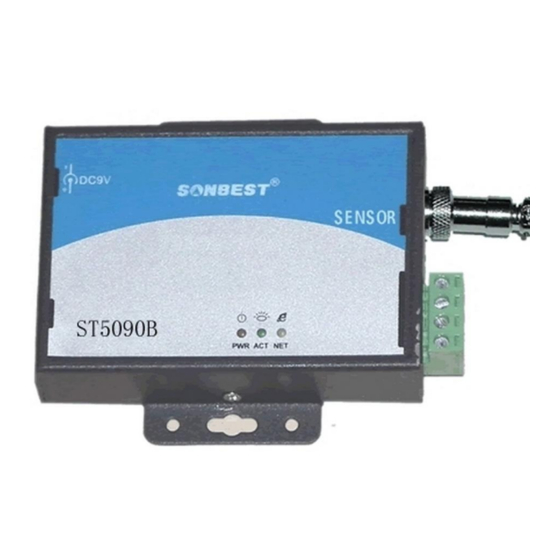

SM5090T
RS485 to Ethernet gateway
User Manual
File Version: V21.3.24
SM5090T using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS and
other instruments or systems for monitoring TCP state quantities.The internal use of high-precision sensing
core and related devices to ensure high reliability and excellent long-term stability,can be customized
RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
Technical Parameters
best Industrial Co., Ltd
Page1
Sha nghai Son
