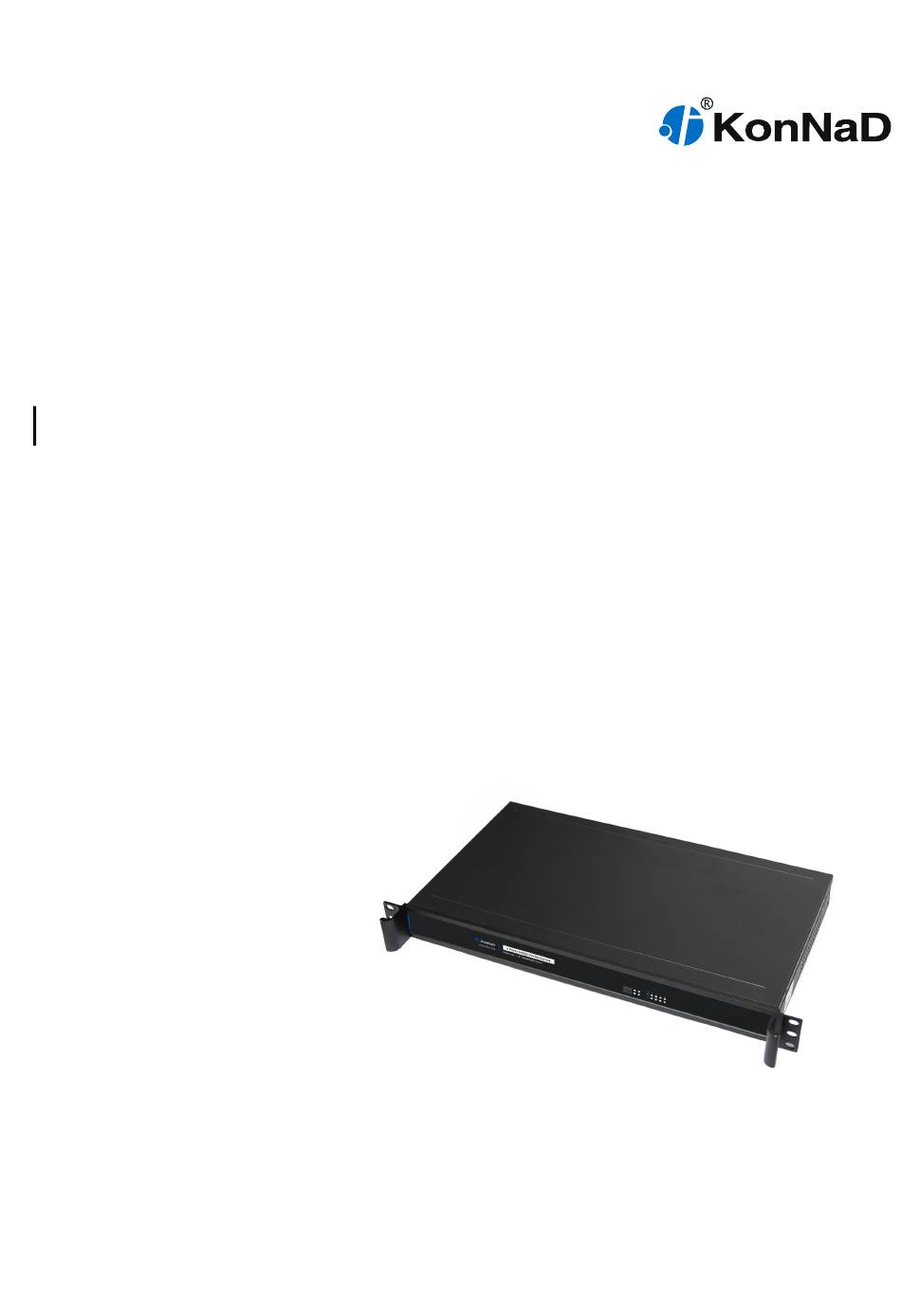

- Page 1 Last updated: 2020-9-2 C2000-B2-UJE0401-CB1 User Manual ⇋ Ethernet 4 * RS485/422/232 Serial-to-Ethernet Device — Serial Device Server SinoCon Co., Ltd.
-
Page 2: Copyright Notice
Copyright Notice ©2000 - 2020 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means. - Page 3 C2000-B2-UJE0401-CB1 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 11...
-
Page 4: Hardware Description
3-Pins Socket * 1 Input Voltage 220VAC Power ≤ 24W Physical Dimensions 428*244*44.5mm Characteristics Installation Desktop Environmental Limits Operating Temperature -40℃ ~ 85℃ Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 5 / 11... - Page 5 C2000-B2-UJE0401-CB1 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 6 / 11...
- Page 6 Serial Port data transmit Off：RS485/RS422/RS232 no transmitting data indicator RS485/RS422/RS232 Steady on：RS485/RS422/RS232 line fault，please data receive check if the RS485/RS422/RS232 line wiring is correct indicator Flashing：RS485/RS422/RS232 is receiving data Off：RS485/RS422/RS232 no receiving data SinoCon Co., Ltd. www.sinoconsys.com 7 / 11...
-
Page 7: Port Description
Description wiring Ethernet Ethernet RJ45 Ethernet port CAT-5e Downstream Serial RS485/422x RS485/422 communication port CAT-5e Port (downward) RS232x RS232 communication port (downward) CAT-5e Power Input Button Power switch button Socket 220VAC power input SinoCon Co., Ltd. www.sinoconsys.com 8 / 11... -
Page 8: Product Dimensions
C2000-B2-UJE0401-CB1 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 9 / 11... -
Page 9: Package Contents
C2000-B2-UJE0401-CB1 User Manual 2. Package Contents Contents Device * 1 Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 10 / 11... -
Page 10: Warranty Policy
8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 11 / 11...
