Summary of Contents for Superlift SSLG-2 800DC

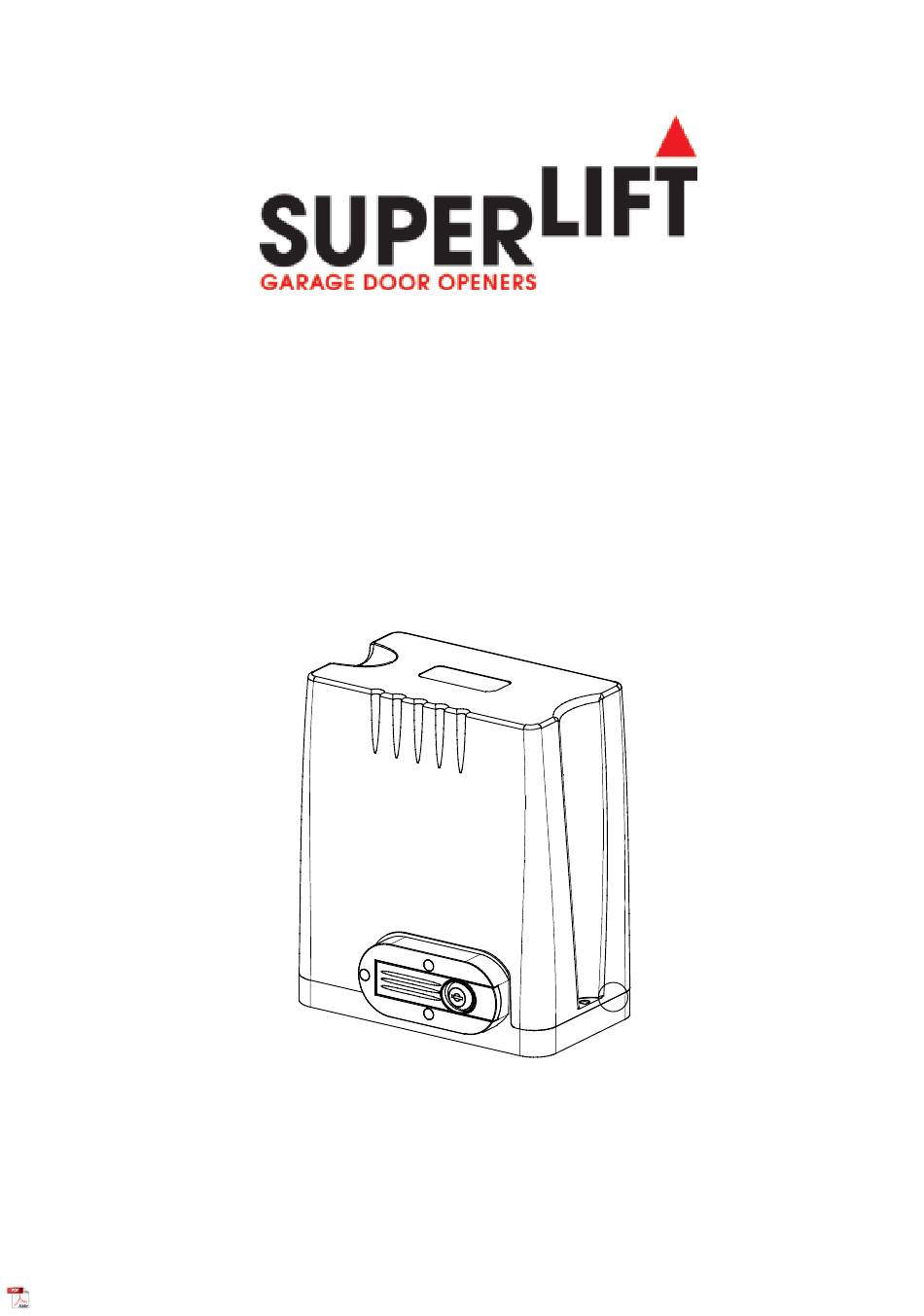

  • Page 1 SSLG-2 800DC Sliding Gate Opener User Manual...
  • Page 3: Safety Instruction

    Dear users, Thank you for choosing this product. Please read this manual carefully before installation and use. Please do not forget to include this manual if you send the product to a third party. 1. Safety Instruction Please make sure that the power voltage being used matches with the supply voltage of gate opener (AC110V or AC220V);...
  • Page 4 2. Packing List (standard) Picture Name Quantity Main engine Manual release key Remote control Magnetic limit switch accessories box Magnetic limit switch block Limit switch block mounting screw M6X18 Foundation bolt M8 Nut M8 Flat washer Ø8 Spring washer Ø8...
  • Page 5: Technical Parameters

    2. Packing List (optional) Picture Name Quantity Steel gear rack 1m/pc Nylon gear rack 1m/pc Infrared sensor Wireless keypad Alarm lamp Mounting plate Hexagon head bolt M8×60 3. Technical parameters DKC500DC DKC800DC Model Power supply 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz Motor power 150W 170W Gate moving speed 11-13m/min...
  • Page 6: Installation

    ≤58dB ≤58dB Noise Working duty S2, 20min S2, 20min Recording of up remote controls Frequency 433.92 MHz 433.92 MHz Working temperature -20°C ~ +70°C -20°C ~ +70°C Package weight 10Kg 10Kg 4. Installation DKC500DC/DKC800DC sliding gate opener is applicable to gate weight less than 500kg/800kg, and length of the sliding gate less than 8m.
  • Page 7 Figure 2 4.2.2 Size of mounting plate 204±0.3 Φ 8× 10 Figure 3 4.3 Installation procedures 4.3.1 Preparation work before installation Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener. Cable installation In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor &...
  • Page 8 Embedded screws Mounting plate Foundation bolt Concrete Power line Figure 4 4.3.2 Main engine installation a) Dismantle the plastic housing on the main engine before installation and keep relevant fasteners properly; b) Please prepare the power line for connecting the mounting plate to the main engine (the number of power supply cable cores should not be less than 3 PCS, the sectional area of cable core should be over 1.5mm²...
  • Page 9  Make sure that all racks on the same straight line.  Pull the gate after installed, make sure the entire trip is flexible without any stuck. Figure 6 The fit clearance of output gear and rack is shown in Figure 7 below: Gear Gear rack rack...
  • Page 10 4.3.4 Limit switch adjustment Magnetic limit switch - The installation position of magnetic limit switch is shown in Figure 8: Gate Gate ≤20mm Magnets Magnets Magnetic Magnetic limit limit switch switch stop stop block block Gear Gear rack rack Output Output gear gear Figure 8...
  • Page 11 The installation of magnetic limit switch stop block is shown in Figure 9: Right side mounting M6×18 M6×18 Figure 9 Note: The default setting is right side mounting. (According to actual situation to adjust, please refer to the section 4.3.5 “DIP switch adjustment”, to change the door opening direction through the DIP switch 5) Note : After first installed or Re-power up, please drive one opening and closing cycle by pressing remote control button or external button, then the door width will be remembered by control unit and...
  • Page 12 4.3.5 Control board wiring ON ON U1 U1 J9 J9 K4 K4 Learning Learning button button U4 U4 J8 J8 Alarm Alarm lamp lamp J1 J1 Infrared Infrared sensor sensor 24VDC 24VDC 24VDC 24VDC motor motor J4 J4 N1 N1 Stop Stop button button...
  • Page 13 Wiring instruction: J1 Terminal 5 COM (GND) 6 Photocell input (N.C.); 7 Extra power input +24VDC J2 Terminal Connect to 24VAC(Fig.11 shows 120W 230VAC/24VAC annular transformer connection) BAT+ Terminal Battery interface J4 Terminal DC motor wire connection (Red wire to top, black wire to bottom) J7 Terminal 1 Gate open control button (N.O.);...
  • Page 14 Clockwise rotation to increase, counter-clockwise rotation to reduce. The total time can be set to 10 seconds as minimum and 90 seconds as maximum. For example, if gate moves 20 seconds, please try to add 5 seconds, namely setting 25 seconds is suitable. VR3: For motor auto-reverse force adjustment when meeting obstacle.
  • Page 15 Infrared Infrared receiver receiver connecting connecting Infrared Infrared emitter emitter connecting connecting V R 1 V R 1 V R 2 V R 2 NO COM NC R L 6 R L 6 Figure 13 Remote control operation Three button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by three buttons separately on the remote control.
  • Page 16 learning button K4, the indicator light LRN will be on; then release it until LRN is off. After the steps, all the matched remote controls will be deleted. The fourth button on the remote control is for pedestrian mode, press the button while the door is closed, it will open for 1 meter which is for pedestrian only.
  • Page 17: Troubleshooting

    Solar panel connection Solar Solar charger charger Solar Solar panel panel Storage Storage battery battery BATTERY BATTERY CHARGE CHARGE LOAD LOAD - + + - + - + - - + C3 C3 J2 J2 D6 D6 F1 F1 BAT+ BAT+ DKC500DC.PCB DKC500DC.PCB...
  • Page 18 3.Re wiring according to instructions. 1.If not connect photocell, please make sure that the infrared port and GND short circuit; if connect 1.Photocell wiring with problem. infrared sensor, please make sure 2.Photocell mounting with problem. the wiring is correct and the The gate can open but 3.Photocell is blocked by objects.
  • Page 19: Warranty

    Warranty Warranty Ordinance 1. To repair against this warranty card and invoice during the warranty period. 2. Warranty period: 1 year after the date of invoice. 3. Without unauthorized dismantling, any product broken or damage due to quality problem, we’ll offer the repair service for free or replace for free.
