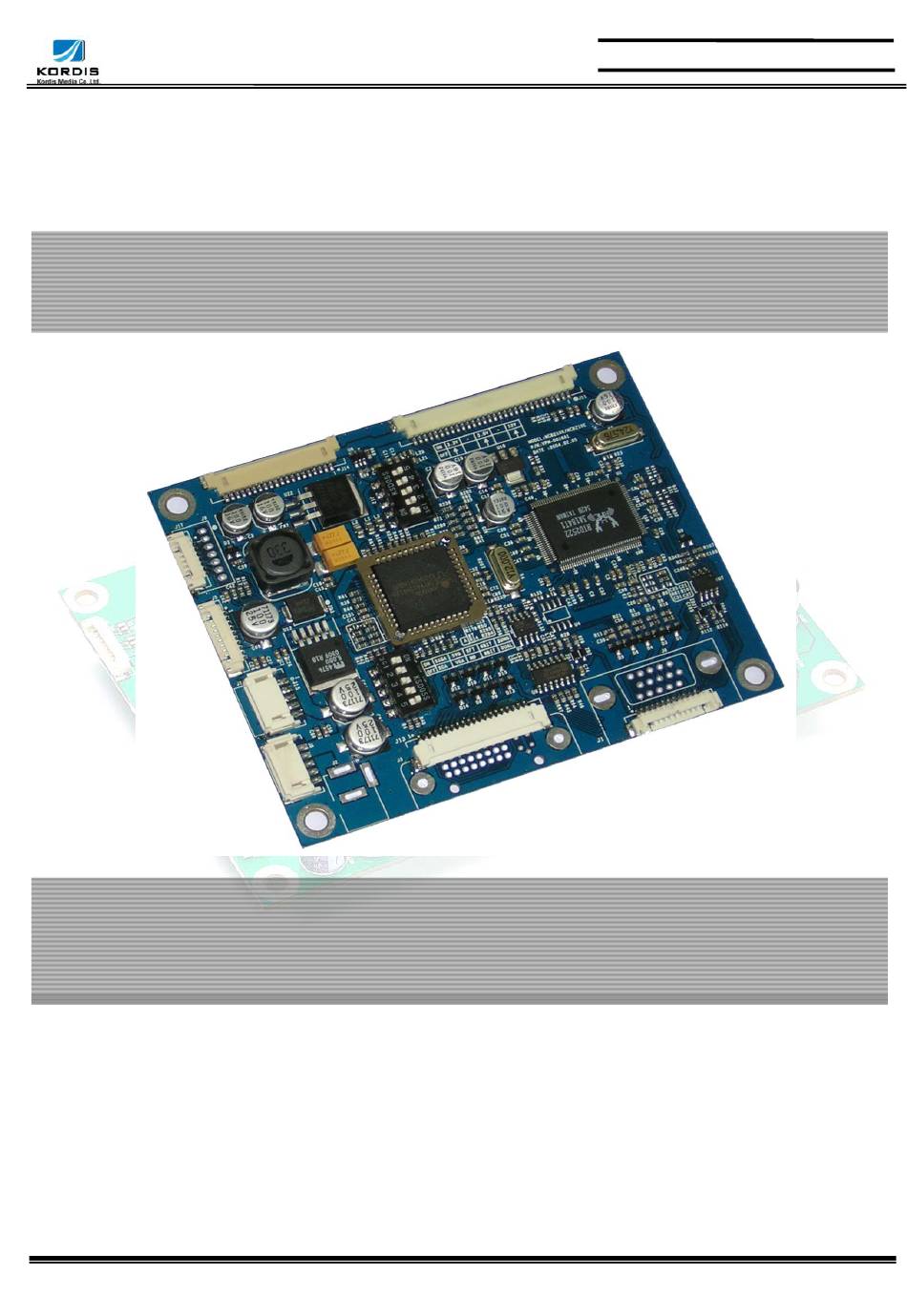

Data Sheet NCB210X2
For LCD Monitor (PC + DVI ) Interface Controller
For 800X600, 1024X768 Resolutions TFT LCD
DATA SHEET
TFT LCD Monitor Control Board
Kordis Media Co., ltd.
3F, 1006-9, Sadang-Dong,
NCB210X2-DS-AB
Dongjak-Ku, Seoul
156-090, Korea
March. 2004
TEL : 82-2-585-8347
FAX : 82-2-585-8391
1
Kordis Media Co.,ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCB210X2-DS-AB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kordis NCB210X2-DS-AB

  • Page 1 Data Sheet NCB210X2 For LCD Monitor (PC + DVI ) Interface Controller For 800X600, 1024X768 Resolutions TFT LCD DATA SHEET TFT LCD Monitor Control Board Kordis Media Co., ltd. 3F, 1006-9, Sadang-Dong, NCB210X2-DS-AB Dongjak-Ku, Seoul 156-090, Korea March. 2004 TEL : 82-2-585-8347 FAX : 82-2-585-8391 Kordis Media Co.,ltd...
  • Page 2: Table Of Contents

    CONNECTION & OPERATION --------------------------------------------- • --------------------------------------------- • OSD FUNCTION --------------------------------------------- • CONNECTOR, PINOUT & JUMPER --------------------------------------------- • CONTROLLER DIMENSIONS --------------------------------------------- • APPLICATION NOTES --------------------------------------------- • TROUBLESHOOTING --------------------------------------------- • APPLICABLE GRAPHIC MODE --------------------------------------------- • ACCESSORY --------------------------------------------- • APPENDIX --------------------------------------------- Kordis Media Co.,ltd...
  • Page 3 Data Sheet NCB210X2 Revision History Data Revision Page Preliminary Release Kordis Media Co.,ltd...
  • Page 4: Introduction

    Ensure that all necessary and appropriate safety measures are taken. Obtain suitable regulatory approvals as may be required. Check power settings to all component parts before connection. DISCLAIMER There is no implied or expressed warranty regarding this material. Kordis Media Co.,ltd...
  • Page 5: General Specification

    Power Consumption Max Power 35W (With Back Light Inverter) Analog DSUB 15P(R, G, B Separate H, V Sync) Signal Connector Digital DVI-D(TMDS) TMDS Notes 1) Depends On Panel Resolution S : SVGA (800X600) X : XGA (1024X768) Kordis Media Co.,ltd...
  • Page 6 Depends on Mode LCD Power 11.4 12.6 (12V) LCD Power(5V) Jumper option 3.16 Jumper option Power(3.3V) LVDS Interface Differential Differential +/- output (mV) Inverter Interface Power 11.4 12.6 On/Off control L=off, H=on Brightness control Step OSD Value Kordis Media Co.,ltd...
  • Page 7: System Design

    J12: Jumper for LCD Power 5. OSD KEY CABLE 8.OUTPUT POWER J4: Jumper for Panel Type. 9. DC Power Jack (12V) 10. DC Power Jack 12. ANALOG VGA Input (12V) 11. DVI-D 4. OSD Input Board Kordis Media Co.,ltd...
  • Page 8: Block Diagram

    Data Sheet NCB210X2 BLOCK DIAGRAM TMDS (DVI-D) SCALER LVDS 1CH GREEN BLUE SYNC (DSUB 15P) PROM POWER DC/DC Inverter Power Control Kordis Media Co.,ltd...
  • Page 9: Assembly Notes

    10. Power input: +12VDC is required to supply power for the controller, the Inverter and the LCD panel 11. VGA Input Cable: As this may affect regulatory emission test result, a suitably shielded cable should be utilized. Kordis Media Co.,ltd...
  • Page 10 *** Remarks*** For a specific panel use, One LCD panel sample and full technical specifications for the LCD panel from the manufacturer are required to test for tuning up screen image. KORDIS can provide engineering service for customers specific controller development.
  • Page 11: Connection & Operation

    PC Setting: The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphic performance we recommend choosing 60Hz vertical refresh rate – this will not cause screen flicker Kordis Media Co.,ltd...
  • Page 12: Osd

    DOWN ON/OFF Source change Button Function Status HOT Key Power Power on/off On/Off Menu Activate menu Select Menu Select Auto setting Indicates operation status Green/ Off/ Amber DOWN, UP Cursor control(Value Control) UP : Source change Down(Decrement)/Up(Increment) Kordis Media Co.,ltd...
  • Page 13 Sel, input sign: Select input signal (analog, composite, S-Video) • Power Switch Option: Select Power Switch on/off. • DPMS LED: IF When the DPMS select Amber LED color is Amber, otherwise LED is • off. Information: Displays current video mode and frequency • Kordis Media Co.,ltd...
  • Page 14: Osd Function

    Data Sheet NCB210X2 OSD FUNCTION BRIGHTNESS / CONTRAST Control 1) Menu 2) Select Brightness Procedure Menu > BRIGHTNESS/CONTRAST (Blue Highlight) > Select (Brightness) Dark Bright Contrast Procedure Menu (Blue Highlight) > Select (Contrast) Vague Distinctive Kordis Media Co.,ltd...
  • Page 15 Color (VIDEO Input Mode) Procedure Menu > Color (Blue Highlight) > Select Select (Blue Highlight) > SHARPNESS (select return to Left Status) SHAHPNESS : Focus of Image COLOR : Thickness of Color TINT : Tone of Image Kordis Media Co.,ltd...
  • Page 16 Procedure When display image is wrinkled, can adjust with this function for getting Optimized Image) Mismatch Optimized Phase POSITION > Phase select Procedure When display image is vague, can adjust with this function for getting Optimized Image) Kordis Media Co.,ltd...
  • Page 17 SETUP > OSD POSITION > Select OSD POSITION Function Procedure SETUP > OSD TIME > Select 10 to 60 Sec SOURCE Select Function Procedure SETUP > SOUREC > Select ANALOG -> DIGITAL -> ANALOG -> …… DIGITAL Kordis Media Co.,ltd...
  • Page 18 Input Signal is not present. This message is disappeared after 5 seconds. SELF DIAGNOSTICS Input Signal is not present after power on with power switch. This message is not disappeared before power off or activity of input signal. AUTO CONFIGURATION Execute AUTO Function. Kordis Media Co.,ltd...
  • Page 19: Connector, Pinout & Jumper

    53015-0710 MOLEX Switch Panel Power Select Switch HDR5X2 Connector DVI-D Input(TMDS) 12507WR-20 YEONHO Connector LVDS Single (LCD interface Signal) 12507WR-20 YEONHO Connector Output Power 20022WR-05A00 YEONHO Connector Inverter Connector 53261-1090 MOLEX Connector To OSD Board 53261-0790 MOLEX Kordis Media Co.,ltd...
  • Page 20 J2: 12V DC power supply Pin No. Symbol Description Pin No. Symbol Description Center Shell Ground J4: Panel Type Select Switch Description Pin No / Symbol XGA/SXGA SXGA VGA/SVGA SVGA LVDS/TTL LVDS 8BIT/6BIT 8BIT 6BIT DUAL/SINGLE DUAL SINGLE Kordis Media Co.,ltd...
  • Page 21 TMDS DATA0 Differential Positive Signal TMDS DATA0 Shield Shield for TMDS Channel #0 No Connection No Connection TMDS CLOCK Shield Shield for TMDS Clock differential Pair TMDS CLOCK+ TMDS DATA0 Differential Positive Signal TMDS CLOCK- TMDS DATA0 Differential Negative Signal Kordis Media Co.,ltd...
  • Page 22 DSDA DDC-SDA HSYNC Horizontal Sync VSYNC Vertical Sync DSCL Serial Clock Input J7, J15 : On board +12V/+5V logic power Output Pin No. Symbol Description J8: DC power Input Connector Pin No. Symbol Description Not connected Ground Kordis Media Co.,ltd...
  • Page 23 J9, 17: OSD control connector Pin No. Symbol Description GREEN LED2 RED LED1 LED2 LED1 GREEN LED1 Ground KEY1 Up, Power KEY0 Menu, Select, Down J12: Panel Type Select Switch Pin No / Symbol Description 3.3V 3.3V Kordis Media Co.,ltd...
  • Page 24 TMDS CLOCK Shield Shield for TMDS Clock differential Pair +5V Power +5 Volt signal for EDID (Un-powered Monitor) No Connection DDC Clock The Data Line for the DDC Interface DDC Data The Clock Line for the DDC Interface Ground Kordis Media Co.,ltd...
  • Page 25 VDD For LCD Module (12V, 5V or 3.3V) J16: Backlight Inverter connector Pin No. Symbol Description Dimming adjustment analog dimming control signal DIM-ADJ Min 3.3V, Max 0V (cross check inverter specification) No Connection ON/OFF Inverter digital ON(3.3V)/OFF(0V) signal 3,4,7,8 Ground 9,10 Kordis Media Co.,ltd...
  • Page 26 Data Sheet NCB210X2 Summary: jumpers setting Referenc Description Connector Type 3.3V panel power CAUTION: Incorrect setting can damage panel 5V panel power CAUTION: Incorrect setting can damage panel 12V panel power CAUTION: Incorrect setting can damage panel Kordis Media Co.,ltd...
  • Page 27: Controller Dimensions

    Data Sheet NCB210X2 CONTROLLER DIMENSIONS 16.2 mm max 13mm max 1.2m 6.8mm max 8.0 mm max 1.2m Kordis Media Co.,ltd...
  • Page 28: Application Notes

    DPMS will not operate. Pin 5 should be matched to the inverter specification for the ON/OFF pin. Brightness dimming control: NCB300 controller boards are analog dimming control method. And it is important to consider the specifications for the inverter to be used. Kordis Media Co.,ltd...
  • Page 29: Troubleshooting

    Items to check include: Power input, controls, inverter and Tubes generally in this order. If half the screen is dimmer than the other half: ► Check cabling for the inverter. Also: ► If system does not power down when there is a loss of signal. Kordis Media Co.,ltd...
  • Page 30: Applicable Graphic Mode

    1688 1280 75.035 1066 1024 ACCESSORY This board requires several accessories to build a complete display unit. Kordis can provide standard accessory for this board as below. Items Part No. Ex) LG. Philips LP121S1 LCD signal cable SC-Panel Part No.-mm...
  • Page 31: Appendix

    LCD panel. All of the LCD Panels listed can work without changing the control program of the NCB210X2 board. And KORDIS will try continuously to the model names of the LCD panels that have been tested.
