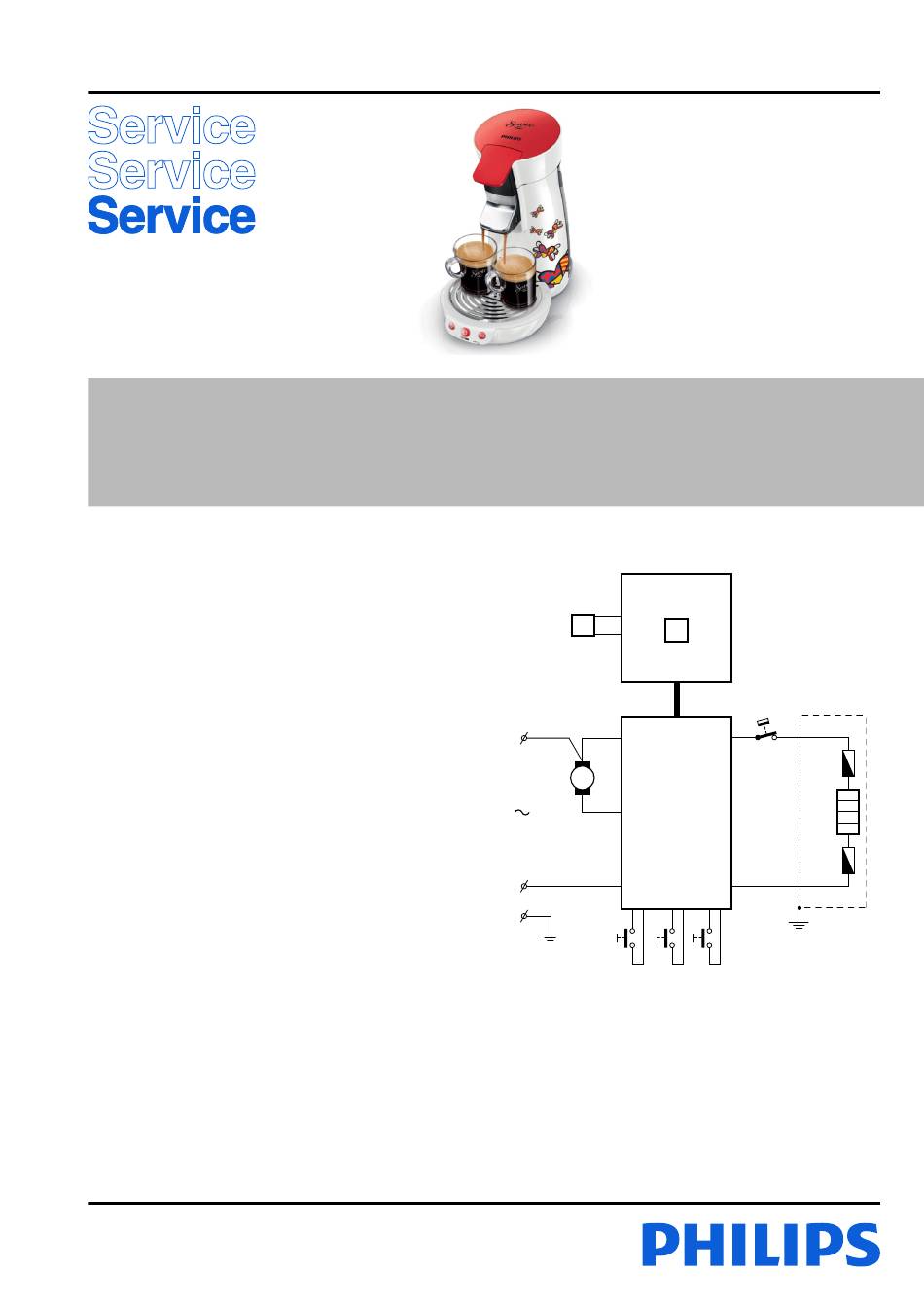

Service Manual
Product information
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety standards as
officially laid down at this moment.
Technical information
• Voltage
• Frequency
• Power consumption
• Standby power consumption
• Contents water reservoir
• Colour setting
• Functions
• Auto shut-off time
• Materials:
Housing
Brew chamber
Collector
Spout
Drip tray cover
Drip tray
Water container
Hoses
Published by Philips Consumer Lifestyle
15/01
Coff ee maker Senseo "Viva Café"
: 220 - 240 V
: 50 - 60 Hz
: 1450 W
: < 0,5 W
: 900 cc
: White / Red
: Direct start, Brew
stop Auto shut-off
: 30 min
: PP
: PA/PP
: PP
: POM
: Metal
: PP
: PP
: Silicon
Printed in the Netherlands
HD7825/06/B
HD7825/07/B
Interconnect
PCB
Temp.
y
sensor
Water level
sensor
L
Pump M
Control
PCB
N
Push buttons
© Copyright reserved
z
Boiler
TCO
Fuse
Fuse
Subject to modification
Advertisement
Related Manuals for Philips HD7825/06/B
Summary of Contents for Philips HD7825/06/B
- Page 1 Spout : POM Drip tray cover : Metal Drip tray : PP Water container : PP Hoses : Silicon Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 15/01...
-
Page 2: Optional Accessories
Disassembly- and reassembly advice HD7825/06/B /07/B Before you start dismantling! To remove the brew chamber head assy, follow below steps: For your safety be sure the plug is disconnected from the mains! • Remove the back cover. • Place the appliance in front of you in such a way that you The product is designed for easy access to the internal are facing the rear side of the appliance. -
Page 3: Repair Instruction
Repair instruction HD7825/06/B /07/B Note: Volume adjustment Please note after replacing the boiler the appliance has to The PCB circuit board makes it possible to adjust the be restored to factory default. The fi lling procedure (cold volume output by means of pushing the one-cup and two- fl ush), known from the predecessor Senseo’s is no longer... - Page 4 Repair instruction HD7825/06/B /07/B Filling procedure: Please note, the software of the Senseo Viva Café has changed, compared to predecessor Senseo’s! The fi lling procedure known from predecessor Senseo’s is no longer available. The command originally used to initiate the fi lling...
-
Page 5: Parts List
Parts list HD7825/06/B /07/B Service code Description Remark 4222 259 44211 Pad holder assy 1-cup Deep Black 4222 259 44221 Pad holder assy 2-cup Deep Black 4222 247 42550 Collector 4222 259 45072 Spout cover Metal 4222 259 48241 Spout assy... -
Page 6: Exploded View
Exploded view HD7825/06/B /07/B... - Page 7 Exploded view HD7825/06/B /07/B...
