Summary of Contents for Audio ACCESSIBILITE DCTSG1

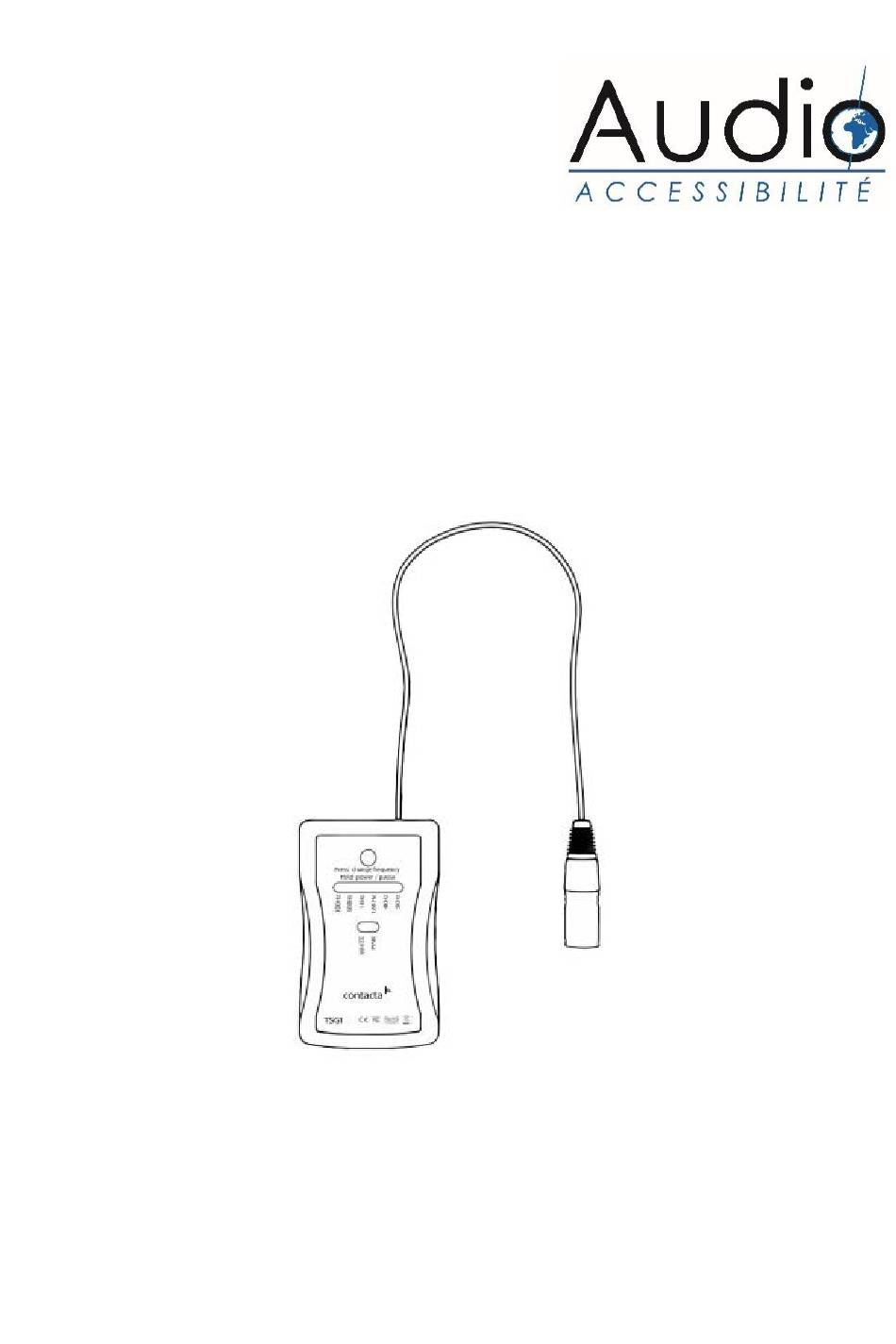

- Page 1 Test Signal Generator DCTSG1 User Guide February 2017...
- Page 2 Contents Product Overview Set-Up Handy Tips Troubleshooting Contacta has a policy of continuous product development, therefore small specification changes may not be reflected in this manual. Images, labels, packaging, accessories and product colours are subject to change without notice.

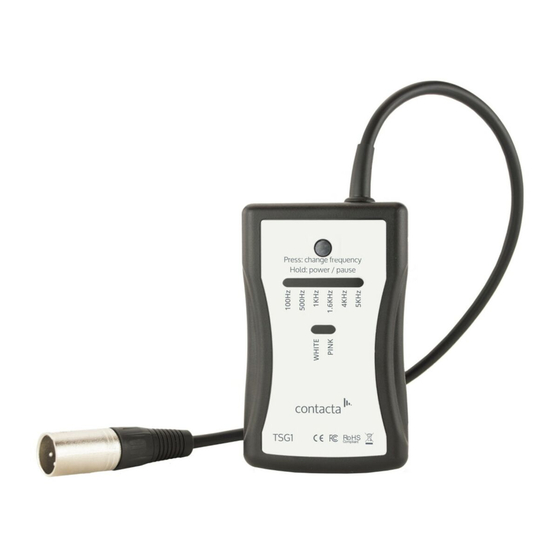

- Page 3 Product Overview Our Test Signal Generator (TSG1) is a compact, handheld engineer’s tool for large area hearing loop installations. When combined with our Field Strength Meter (IL-CONTACTA-FSM), it verifies whether a hearing loop is working to the BS EN 60118-4 standard. It provides continuous sine wave frequencies, allowing measurement of hearing loop systems.
- Page 4 Set-Up Open the rear of your Test Signal Generator (see diagram on the right) and insert two alkaline AA batteries. 2. Plug the XLR connection lead into the line input of the hearing loop driver being tested. 3. Press the power/pause button to turn on the Test Signal Generator (see diagram below).
- Page 5 Handy Tips The device will automatically power off if not used for one hour. The following procedures should be carried out on a regular basis to keep the product at its optimal performance: • Do not stretch or wrap the cable •...
- Page 8 Local dealer Audio Accessibilité By ARCHEAN Technologies 1899 Avenue d’Italie, ZI Alba sud II, 82000 Montauban, France +33 (0)5 63 93 50 00 contact@audioaccessibilite.tech www.audioaccessibilite.tech...
