Ninestars DZT-12-9 User Manual

User's Manual

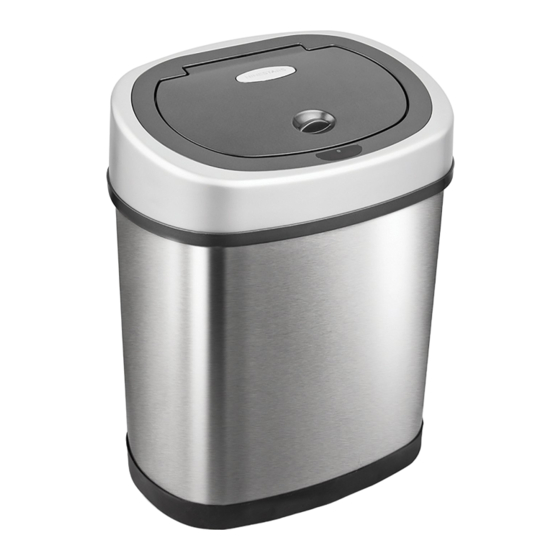

MOTION SENSOR TRASH CAN
Model: DZT-12-9
Introduction
Thank you for choosing Nine Stars Motion Sensor trash can. As the leader in smart trash
can technology, we're pleased to offer the most versatile, intuitive and reliable waste
solutions on the market. Our products are designed to fit seamlessly into any living space,
be easily maintained and effortlessly operated. Simply move an object or hand above the
strategically placed infrared motion sensor (located near the lip of the lid) and the lid will
open automatically. Once the object or the hand is out of the sensor range, the lid will close
automatically within seconds. We at Nine Stars use the highest quality materials and the
latest technology in our products to ensure reliable function and durability. Thank you again
for your business and we sincerely hope that you enjoy your unit.
Hands-Free
Automatic Lid
Liner Ring (Inside)
- Supports Trash Bag
LED Indicator Light
Infrared Motion
Detecting Sensor
Fingerprint Resistant
Stainless Steel Base
Capacity: 3.2 Gal / 12L
Model: DZT-12-19
Note: This model is to be used in-door at all times.
Instruction
Step 1 - Remove all components
from the box
• Lid
• Liner Ring
• Base
Step 2 - Insert batteries
Locate the battery compartment underneath the
lid. Squeeze the tab on the battery cap in and
carefully lift up to open. Insert two (2) HEAVY
DUTY "C" size batteries. Insert the batteries in
accordance with the positive (+) and negative (-)
poles. To close, insert side without clip first and
push the battery cap down. Make sure it clicks to
ensure that it's securely fastened.
Step 3 - Insert trash bag
Insert the trash bag using the liner ring (see
diagram). Fold the upper rim of the bag around the
liner ring. Place the trash bag and the liner ring in
the trash container. Tuck the bag completely into
the bottom of the container so that the edges of the
bag will be concealed once the lid is placed on
top. **DO NOT put the liner ring inside the bag**
Step 4 - Trash can set up
Align the lid with the base and gently place the lid
on top.
Step 5 - Turning the trash can On/Off
The power switch is located on the back side of the
lid. When the switch is in the "I" position the trash
can is ON. When the switch is in the "O" position
the trash can is OFF.
Step 6 - Using the trash can
Place your hand or an object within inches of the
motion sensor (located on the lid). The lid will open
instantly. Once your hand or object is out of the
sensor range, the lid will close automatically within
seconds. The lid will remain open if the object stays
within the sensor range.
Technical Facts
LED light indicators:
A. To turn ON the trash can: Turn the power switch into the "I" position and a flashing red
light will appear, which indicates the trash can is in sensor mode.
B. To open the lid: Waive above sensor, a solid red light will appear when the lid opens.
C. Lid closing: A solid red light will appear when lid is closing.
D. Low Battery: LED light will flash rapidly when battery power is low. Please replace
batteries.
Overview
Power Saving On/Off
Switch - Back of the Lid
Battery Compartment
- Underneath the Lid
(Fits 2 "C" Batteries
Not Included)
Patented Product
1. Align batteries according to the positive and negative poles.
2. Do not submerge the trash can into water because it is equipped with many electrical
components. The trash can may be wiped with a damp cloth.
3. Do not manually force the lid close; this can cause damage to the internal gears. If the
gears are damaged, the automatic lid will not function properly.
4. Replace used batteries in a timely manner to prevent battery acid leakage. Battery acid
may cause damage to the electrical components of the trash can.
5. Do not mix new and used batteries.
6. Do not place trash can in direct sunlight or a heavily moisturized environment.
7. Do not mix alkaline, standard (zinc-carbon), or rechargeable (NiCd, NiMH, etc) batteries.
Errors
Lid does not open
Lid does not close
Indicator light is
a constant Red
Lid opens slowly and
Indicator light flashing
rapidly
Note: If the above solutions do not correct the problem please contact Nine Stars Customer
Service.
Lid
What does this Warranty cover?
- This warranty covers the electronic mechanism of the lid such as the computer chip,
Liner Ring
motor, gear box and electrical circuits only.
How long does the coverage last?
Base
- This warranty is valid two years from the date of purchase.
What will Nine Stars do?
- Nine Stars will fix or replace any defective or malfunctioning lid.
- Customer is responsible for returning the defective or malfunctioning lid (entire top unit of
the Trash Can) to Nine Stars. The customer is also responsible for shipping charges to
return the product to us. Nine Stars will pay for shipping charges back to the customer if
Battery
the lid is covered under our warranty program outlined in this document.
Compartment
What does the warranty not cover?
- The base of the unit, battery caps (if applicable), liner rings (if applicable), inner bucket (if
applicable), or any problems with the automatic lid caused by abuse, misuse, or natural
disasters (such as earthquakes, floods and fires) are not covered.
- User's modifications or alterations to Nine Stars products will void User's Warranty.
- Only our authorized distributors will be covered under our warranty. We will NOT
warranty products purchased from auctions, auctioneers, discount/closeout stores.
Liner Ring
How do you get service?
Trash Bag
Follow these steps to be eligible for service under warranty
1. Register your product within 30 days of purchase. Register your product online at
www.ninestarsusa.com/register, an email will be sent to you as the confirmation.
Please reply with proof of purchase (such as a copy of original sales receipt) to
completed the product registration.
Place rear side
2. Return authorization is required, please make sure you contact Nine Stars before
down first
sending your unit
3. If you have any technical questions or problems, please contact us via email:
info@ninestarsusa.com or call us at 1-866-978-2778, M-F, 8:30am to 5:30pm PST
How does state law apply?
- This warranty gives you specific legal rights and you may also have other rights that vary
from state to state.
All Nine Stars products are covered by a two-year warranty.
product within 30 days of purchase.
Product registration is as easy as 3 steps:
Step 1 - Go to www.ninestarsusa.com/register
or scan the QR code
Step 2 - Complete the online form
Step 3 - A confirmation email will be sent to the registered
email. Reply with a proof of purchase (such as a
copy of original sales receipt) to completed the
product registration
CONTACT US:
Tel: 866.978-2778
Web: www.ninestarsusa.com
Email: info@ninestarsusa.com
Add.: 13505 Yorba Ave. Unit Y, Chino, CA 91710
Warning
Troubleshooting
Solutions
- Make sure the power is ON by turn the switch in "I" position.
- Check if the batteries are placed in correctly.
- Wipe the sensor with a dry cloth.
- Check to see if there are any objects within the sensor
area. If there are, remove them.
- Wipe sensor with dry cloth to insure the sensor is clean
and that there is no excess moisture on it.
- Battery power is low. Replace the batteries. Do not mix new
and used batteries.
Limited Warranty
Register Your Product
