Summary of Contents for Packard Bell PBO-1

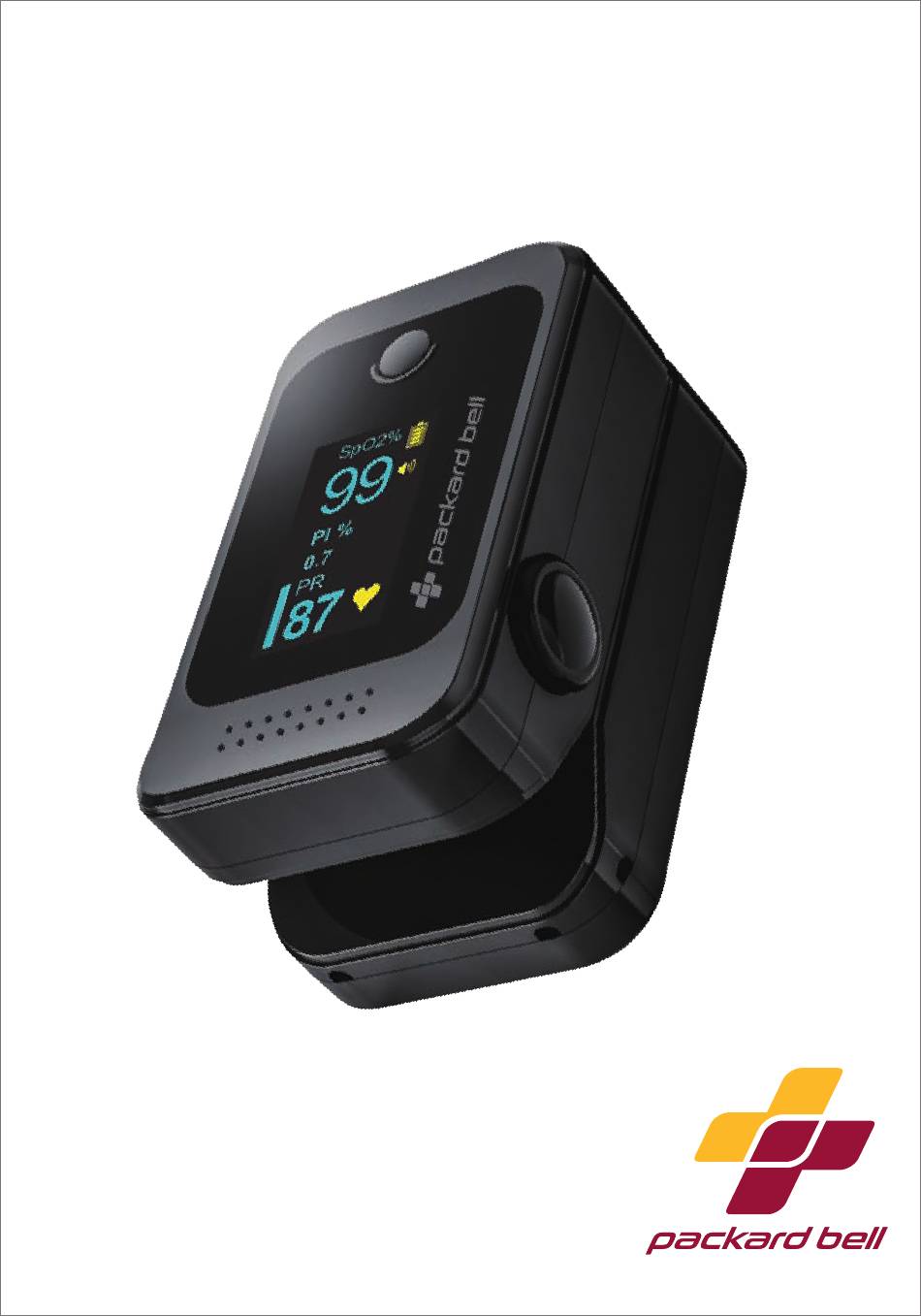

- Page 1 Portable Oximeter Measures Oxygen Level & Pulse Rate PBO-1 User Guide...

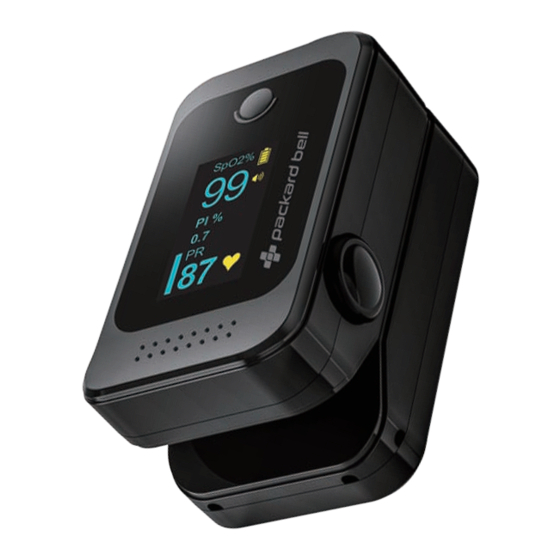

- Page 2 The Packard Bell Portable Oximeter quickly and accurately measures your oxygen (SpO2) level and pulse rate. Simply place your finger inside the Oximeter and quickly get an accurate reading. WARNING Please read these instructions carefully before using this product and keep the instructions and the oximeter in a safe place.
-
Page 3: Display Description
BUTTONS AND DETAILS Display Strap hole Power button Finger sensor Battery compartment DISPLAY DESCRIPTION Pulse rate Battery power Oxygen level Oxygen level result PI % Perfusion Index rate (Pulse strength) Indicator graph Pulse rate result Normal Readings: Oxygen level (SpO2): 95% - 100% Pulse rate (PR): 60 - 100 bpm Perfusion Index (PI): 0.02% - 20% Note: The readings might differ based on several factors such as age,... -
Page 4: Installing Batteries
INSTALLING BATTERIES 1. Open the battery cover as shown. Battery cover 2. Insert two new AAA alkaline batteries (not included) following the polarity (+/-) diagram in the compartment. Do not mix old and new batteries, or mix different types or brands of battery. Two AAA alkaline batteries (not included) -
Page 5: Using The Oximeter
USING THE OXIMETER Before using the oximeter, make sure your finger and the oximeter’ s finger sensor are clean. Please see “Care and Cleaning” (Page 8) 1. Press down on the edge of the oximeter and place your index finger into the oximeter’s finger sensor (nail side upward) as shown below. - Page 6 3. While the oximeter is working the numbers will fluctuate and the oximeter will beep. Keep you finger steady and wait until the Indicator graph displays a consistent pattern and the numbers stop fluctuating as shown below. Numbers PI % PI % Indicator graph Indicator graph...
-
Page 7: Changing The Display Orientation
CHANGING THE DISPLAY ORIENTATION You can change the display’ s orientation by pressing the POWER button once. Press the POWER button again to scroll through the four orientation options below. Power button Note: While changing the orientation of the display, if you press the power button 4 times, it will also turn off... -
Page 8: Attaching The Strap
ATTACHING THE STRAP The strap can be attached to the oximeter by following the instructions below: Strap... -
Page 9: Specifications
SPECIFICATIONS Model: PBO1 Type: Pulse Oximeter Display: OLED SpO2 Measuring Range: 0% - 100% SpO2 Accuracy: ±3% in the range of 70% - 100% Not defined < 70% Pulse Rate Measuring Range: 25-250 bpm Pulse Rate Accuracy: ±2 bpm Peak wavelength: 666nm - 905nm Automatic Shut-off: After 10 seconds of inactivity Operation Environment: 5°C - 40°C;... - Page 10 Designed and distributed by Southern Telecom Inc. © 2020 All Rights Reserved. Packard Bell® is a registered trademark of PBX Holding LLC. Images simulated and may differ from the actual product. Made in China. For questions or help with your product, please visit:...
Need help?
Do you have a question about the PBO-1 and is the answer not in the manual?
Questions and answers
Pulse Ox has a red light inside and screen will not light up even with new batteries
Pulse Ox has a red light inside but screen will not light up even with the new batteries
@Kim same for me this is crazy
If the Packard Bell PBO-1 Pulse Oximeter has a red light but the screen does not light up, even with new batteries, possible issues could include:
- The display may be damaged or malfunctioning.
- The device may have suffered impact or shock, which can affect internal components.
- The batteries might not be inserted correctly or the battery contacts may be dirty or corroded.
- The power button may not be functioning properly.
Ensure batteries are installed correctly, clean the contacts if needed, and check for any signs of physical damage.
This answer is automatically generated
