Summary of Contents for EK-Quantum Reflection 1000D

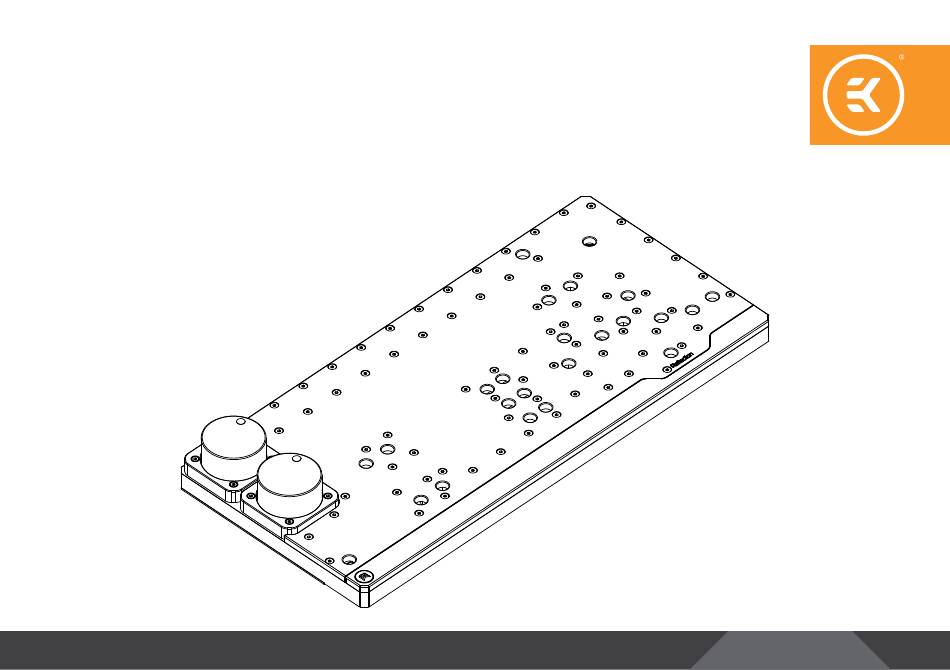

- Page 1 EK-Quantum Reflection 1000D DISTRIBUTION PLATE USER GUIDE...
- Page 2 Before you start using this product please follow these basic guidelines: Please carefully read the manual before beginning with the installation process! The EK Fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
-
Page 3: Table Of Contents
TABLE OF CONTENT ATTACHING MOUNTING BRACKETS ATTACHING THE DISTRIBUTION PLATE ON THE MOUNTING BRACKETS RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP-S TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Attaching Mounting Brackets
ATTACHING MOUNTING BRACKETS Attach the mounting brackets on PC case using M3 X 6 DIN7380 LOWER MOUNTING BRACKET Screws and M3 nuts. M3 Nut M3 x 6 DIN7380 UPPER MOUNTING BRACKET M3 x 6 DIN7380 M3 x 6 DIN7380 M3 Nut - 4 -... -
Page 5: Attaching The Distribution Plate On The Mounting Brackets
STEP 1 STEP 2 M4 x 8 LOWER MOUNTING BRACKET DIN7984 Attach the EK-Quantum Reflection 1000D D5 distribution plate on the Lower mounting bracket and secure it with enclosed M4 X 8 7984DIN Screws and steel washers. Steel Washer STEP 2... -
Page 6: Recommended Distribution Plate Configurations
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS In order to complete your loop, all of the ports should be used as marked on the diagrams. FILL VRM OUTLET All remaining and unused ports should be closed using the (OPTIONAL) supplied plugs and a EK-Loop Multi Allen Key (6mm, 8mm, 9mm). RADIATOR 2 INLET VRM INLET (WITH VRM) -
Page 7: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard. -
Page 8: Connecting The Pump-S
CONNECTING THE PUMP-S The EK-D5 PWM pump has two connectors. 1. 4-pin Molex: It must be connected directly to your PSU at all times as it is used to power the pump. 2. 4-pin PWM fan: It can be connected to your motherboard’s CPU Fan or designated water pump header. -
Page 9: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
