Summary of Contents for Mark 7 101-1287

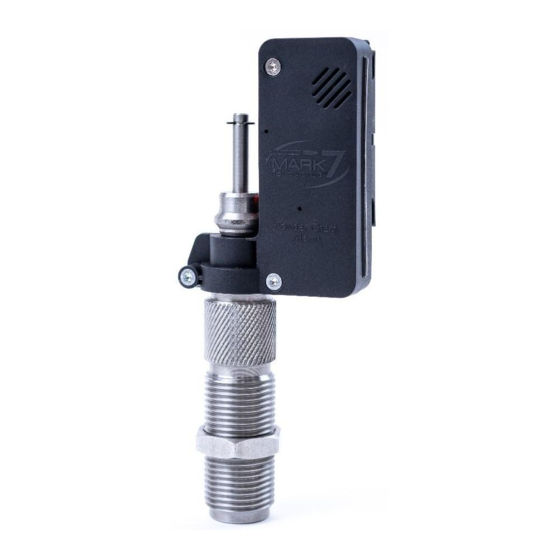

- Page 1 101-1287: Mark 7® Powder Check Alarm Instruction Manual V 1.0 Read this manual completely. Understand all safety and operating instructions. Failure to comply with the warnings and instructions may result in serious injury, illness or death. POWDER CHECK INSTRUCTION MANUAL VERSION 1.1...
- Page 2 Package Content: Please review package contents, if anything is incorrect or missing, please contact Mark 7 customer service immediately. Item No. Description Alarm Trigger Powder Check Alarm Housing Assembly Small Die Insert Medium Die Insert Large Die Insert X-Large Die Insert...
- Page 3 Setup Procedures: 1. Choose your Die Insert based on the following table and drop it into the die body: Small Insert Medium Insert Large Insert X-Large Insert 30-06 380 Auto 38 Special 300 Blackout 338 Lapua 38 Super 44 Mag 7.62.54R 40 S&W 45 Colt...
- Page 4 4. Verify there is a battery in the housing, then begin to thread the die down slowly until the buzzer starts going off, then go one last quarter turn and move the tool head to the top. Tighten the thin hex nut on the die. Choose your Powder Probe Tip for your caliber size.
- Page 5 7. Place a case with the desired charge onto the shell plate under the powder check alarm station. Move the tool head to bottom to verify your alarm triggers, if so, then remove the battery and set the height of the Trigger by aligning the upper switch in the middle of the larger OD section of the Trigger and tightening the set screw.
