Clas Ohlson MCR20I52D0S Quick Start Manual

Memory Card Reader/Writer Internal
Contents
• Memory card reader with connecting cable
• CD with drive routines for Windows 98SE
• Instruction manual
• 4x screws
Installation
1. If you are using Windows ME or 98SE you must first install the drive
routines from the included CD. This is not required if you are using
Windows XP or 2000.
2. Make sure that the motherboard has a USB 2.0 connection. The memory

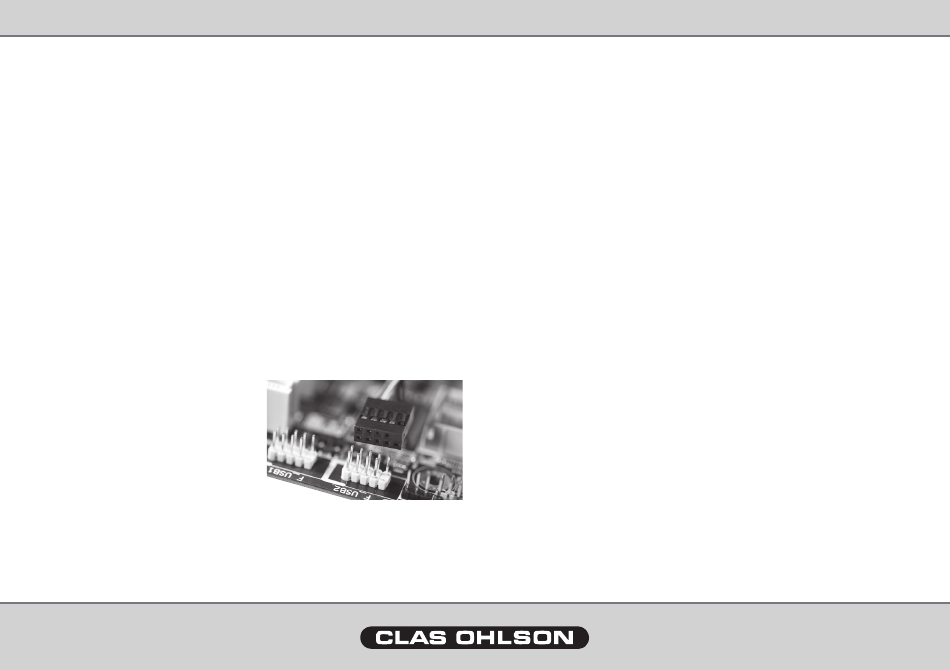

card reader is only suited for motherboards with a 9 pin connection. (See
figure). Note: Some older motherboards only have a 10 pin connection,
which is not compatible. Turn off the computer and detach the power
cable. Open the computer case and mount the memory card reader in an
available 3.5"drive bay.
3. Securely connect the memory card's cable to the motherboard (read the
manual for your motherboard if you are unsure).
Use
1. Insert a memory card (check first
how the memory card should be
inserted so as not to bend the
contacts in the reader).
2. Click on My Computer or Windows
Explorer. The card reader will
show as three Removable Disks.
3. Double-click on the Removable Disk which is represents the memory
card reader.
4. Never take out the memory card while the computer is reading or writing
to it (i.e. when the red LED is blinking).
Note: If the motherboard's connection is of type USB 1.1 then the card
reader can only read at this lower speed.
We apologise for any text or photo errors and any changes of
technical data. If you have any questions concerning technical
problems please contact our Customer Service Department.
ENGLISH
No. 38-2339 Model: MCR20I52D0S
Specifications
• USB 2.0 memory card reader/writer MCR-20152D2.
• Supports USB revision 2.0.
• Ports on the card reader: USB, Compact Flash, Memory Stick, Smart
Media and Secure Digital.
• Supports these memory card types: CF1 / CF II / Extreme CF / Extreme
III CF / Ultra II CF / HS CF/XS-XS CF / CF Elite Pro / CF PRO / CF PRO
II / IBM MD / Hitachi MD / MagicStor / MS / MS PRO / MS Duo / MS
PRO Duo / MS MG / MS MG PRO / MS MG Duo / MS MG PRO Duo/
MS Duo / Extreme MS PRO / Extreme III MS PRO / ULTRA II MS PRO
/ HS MS MG PRO / HS MS MG PRO / HS MS MG PRO Duo / HS MS
PRO / HS MS PRO Duo / MS Rom / MS Select / SD / miniSD / HS Mini
SD / Extreme SD / Extreme III SD / Ultra II SD / SD-Ultra-X / Ultra speed
SD / SD PRO / SD Elite Pro / HS SD / MMC / MMC 4.0 / HS MMC/ HS
RS MMC / RS MMC / RS MMC 4.0 / DVRS MMC / SM / SM ROM /
eXcellent Digital / T-Flash.
• Data transfer rate: 480 Mbps (High-Speed), 12 Mbps (Full-Speed), 1.5
Mbps (Low-Speed).
• Maximum transfer distance: USB cable with max. length of 5 metres.
• LEDs 1. Lights up when the memory card reader is operating. 2. Lights
up when data transfer is occurring.
• Power Supply: From motherboard via the USB cable.
• System requirements: PC with a USB interface and Windows 98SE or later.
• Operating temperature: 0 to +50 °C
• Humidity: 10 – 95 % RH(non-condensing).
• Supports Plug and Play.
• Supports Hot Swap (memory card can be inserted or taken out without
turning the computer off).
• Supports copying between different types of media or memory cards.
• Detects the memory card automatically.
Disposal
Follow local ordinances when disposing of this product. If you are unsure
about how to dispose of this product contact your municipality.
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk
and click on customer service.
