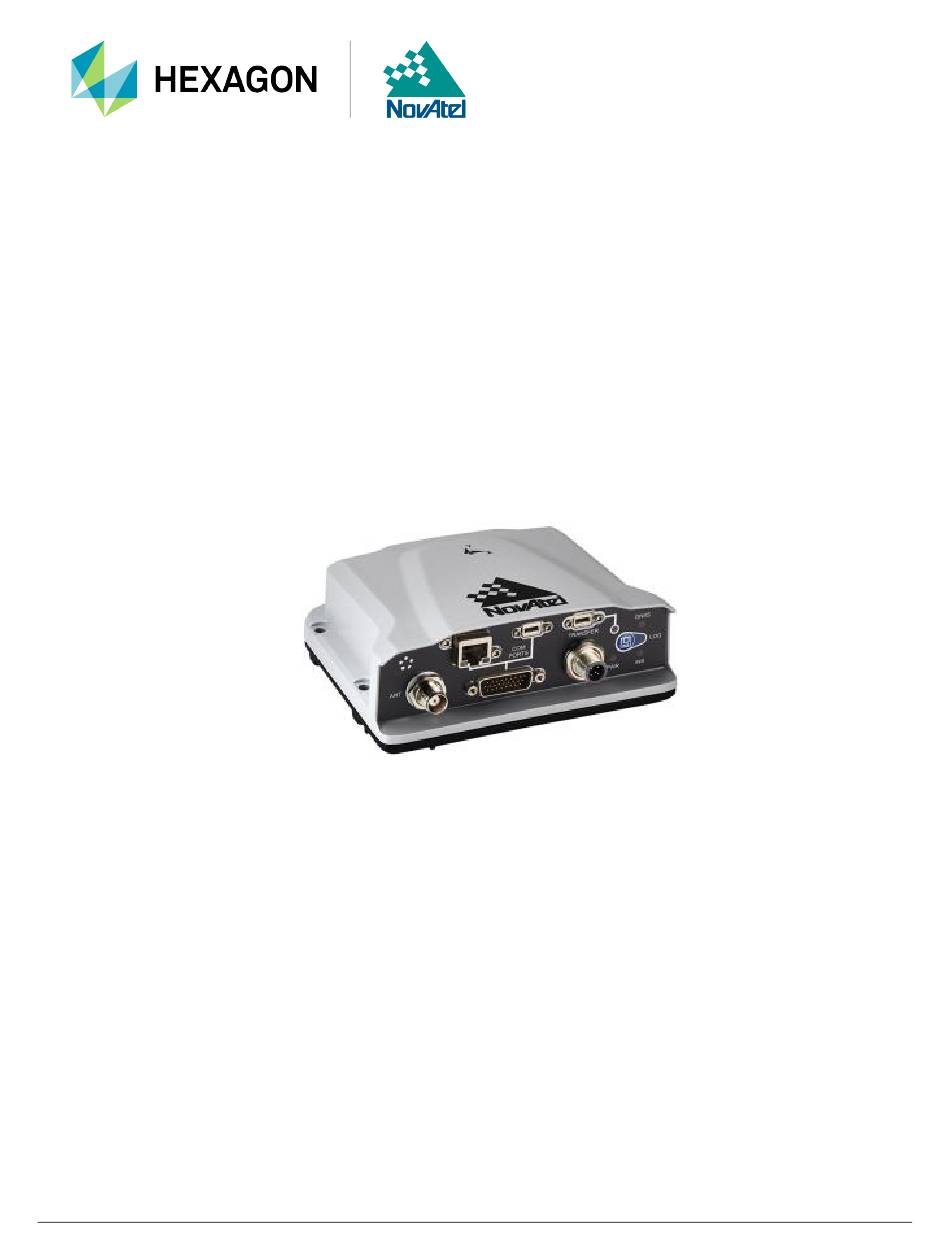

- Page 1 PwrPak7 Family Quick Start Guide D29743 Rev 0A January 2022...
- Page 2 User Documentation This guide provides information for the models: • PwrPak7 PW7700-xxx-xxx-xxx • PwrPak7-E1 PW7700E1-xxx-xxx-xxx PwrPak7D PW7720-xxx-xxx-xxx • • PwrPak7D-E1 PW7720E1-xxx-xxx-xxx • PwrPak7-E2 PW7700E2-xxx-xxx-xxx PwrPak7D-E2 PW7720E2-xxx-xxx-xxx • Where xxx-xxx-xxx represents the GNSS software positioning option. For detailed information on the installation, operation, logs and commands for the PwrPak7, refer to the OEM7 User Documentation (docs.novatel.com/OEM7).
- Page 3 Box Contents The following is provided with the PwrPak7: • Power cable (01019764) • PwrPak7 DB26 to DB9 COM1 cable (01019765) USB A to USB micro B cable (60723175) • Additional Equipment Required The additional equipment listed below is required for a typical setup. A 9-36 VDC, fuse protected power supply capable of at least 15 W •...
- Page 4 Setting Up the PwrPak7 Complete the following steps to connect and power the PwrPak7. * 2 A Slow Blow Fuse 1. Connect the GNSS antenna to the ANT port and mount the antenna to a secure, stable structure with an unobstructed view of the sky. For PwrPak7D, PwrPak7D-E1 and PwrPak7D-E2, connect the primary GNSS antenna to the ANT1 port and the secondary GNSS antenna to the ANT2 port.
- Page 5 Table 1: Fuse/Holder Recommendations 12 V System Fuse Holder BK/MDA-2-R Fuse (or equivalent) BK/HFA-R-R Fuse (or equivalent) BK/MDL-2-R Fuse (or equivalent) The fuse and holder are made by Cooper/Bussmann; available from Digikey. Vehicle Install If the receiver is installed in a vehicle, it is recommended that a dedicated battery be provided for the receiver that is isolated from the engine starter battery.
- Page 6 Log a Case and Search Knowledge: Website: novatel.com/support Log a Case, Search Knowledge and View Your Case History: (login required) Web Portal: https://novatelsupport.force.com/community/login Email: support.novatel@hexagon.com Telephone: U.S. and Canada: 1-800-NOVATEL (1-800-668-2835) International: +1-403-295-4900 PwrPak7 Family Quick Start Guide Rev 0A...
- Page 7 PwrPak7 Family Quick Start Guide NovAtel, PwrPak7 and VEXXIS are trademarks of NovAtel, Inc., entities within the Hexagon Autonomy & Positioning division, their affiliated entities, and/or their licensors. All other trademarks are properties of their respective owners. © Copyright 2022 NovAtel Inc. All rights reserved. Unpublished rights reserved under international copyright laws.
